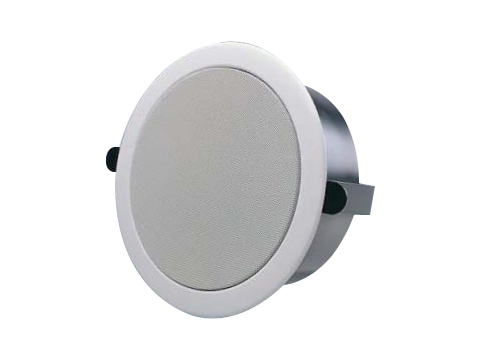

DESCRIPTION

The RCS Series of ceiling loudspeakers have been carefully designed to satisfy the most critical eye. These units are stylish yet unobtrusive and can be supplied with or without fire domes (FT version).

Made from a pressed steel epoxy coated chassis incorporating a twin cone driver, which offers a wider frequency range than the standard single cone, this gives the RCS range a superior performance. Designed to make installation quick, easy and suitable for use in applications where background music and speech are the primary requirement such as shops, schools, restaurants, hotels, public houses, offices, etc.

• EN models are compliant to the EN54-24 standard for Voice Alarm systems.
• ENC models are compliant to the EN54-24 standard for Voice Alarm systems, it includes a capacitor for DC line monitoring.


FEATURES

Models:

• RCS3/T
• RCS4/T
• RCS5/T
• RCS5/TCOAX

• RCS6/T
• RCS6/TCOAX

• RCS8/T
• RCS8/TCOAX


EN54-24 Certified Models:

• RCS4FT/EN
• RCS4FT/ENC
• RCS5FT/EN
• RCS5FT/ENC
• RCS5FTCX/EN
• RCS5FTCX/ENC
• RCS6FT/EN
• RCS6FT/ENC
• RCS6FTCX/EN
• RCS6FTCX/ENC
• RCS8FT/EN
• RCS8FT/ENC
• RCS8FTCX/EN
• RCS8FTCX/ENC

Certification:

• EN54-24:2008: Fire detection and fire alarm system - Certificat N° 0905-CPR-201110


SPECIFICATIONS

RCS3/T

Electrical

• Rated power, Watts: 6
• Tappings 100 volt line, Watts: 6/4/2
• Transformer Impedance, Ohms, 100V: 1.67k/2.5k/5k
• Tappings 70.7 volt line, Watts: 3/2/1
• Driver impedance, Ohms: 8
• Effective frequency range, Hz (BSEN60268-5): 100-20k
• S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 87
• S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 94
• Dispersion at 1k/2k Hz, Degrees: 180/180

Environmental

• IP-Rating: 21
• Max/Min Amb Temp: -25°C/+70°C
• Relative Humidity: ≤60%

Mechanical

• Dimensions, mm: Ø104.5 x 85
• Net Weight, Kg: 0.49
• Colour (Unless Specified): White, RAL9016
• Material: Steel
• Mounting: Fast spring clip
• Cut-out, mm: Ø85

-------------------------------------------------------------------------

RCS4/T

Electrical

• Rated power, Watts: 4
• Tappings 100 volt line, Watts: 4/2/1/0.5/0.25
• Transformer Impedance, Ohms, 100V: 2.5k/5k/10k/20k/40k
• Tappings 70.7 volt line, Watts: 2/1/0.5/0.25/0.13
• Driver impedance, Ohms: 8
• Effective frequency range, Hz (BSEN60268-5): 130-18k
• S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 84
• S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 90
• Dispersion at 1k/2k Hz, Degrees: 180/180

Environmental

• IP-Rating: 21
• Max/Min Amb Temp: -10°C/+55°C
• Relative Humidity: n/a

Mechanical

• Dimensions, mm: Ø132 x 93
• Net Weight, Kg: 0.72
• Colour (Unless Specified): White, RAL9016
• Material: Steel
• Mounting: Fast spring clip
• Cut-out, mm: Ø119

-------------------------------------------------------------------------

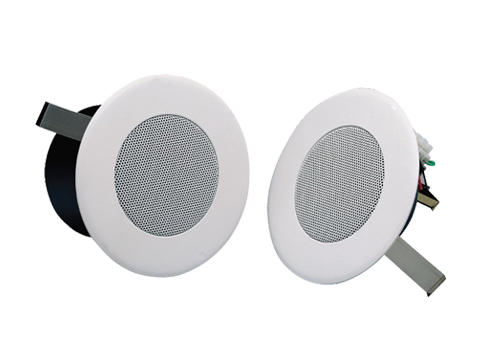

RCS4FT/EN

Electrical

• Rated power, Watts: 4
• Tappings 100 volt line, Watts: 4/2/1/0.5/0.25
• Transformer Impedance, Ohms, 100V: 2.5k/5k/10k/20k/40k
• Tappings 70.7 volt line, Watts: 2/1/0.5/0.25/0.13
• Driver impedance, Ohms: 8
• Effective frequency range, Hz (BSEN60268-5): 200-18k
• S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 90
• S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 96
• Dispersion at 1k/2k Hz, Degrees: 176/162 (H) 173/166 (V)

Environmental

• IP-Rating: 21
• Max/Min Amb Temp: -10°C/+55°C
• Relative Humidity: n/a

Mechanical

• Dimensions, mm: Ø132 x 91.1
• Net Weight, Kg: 0.92
• Colour (Unless Specified): White, RAL9016
• Material: Steel
• Mounting: Fast spring clip
• Cut-out, mm: Ø119

-------------------------------------------------------------------------

RCS4FT/ENC

Electrical

• Rated power, Watts: 4
• Tappings 100 volt line, Watts: 4/2/1/0.5/0.25
• Transformer Impedance, Ohms, 100V: 2.5k/5k/10k/20k/40k
• Tappings 70.7 volt line, Watts: 2/1/0.5/0.25/0.13
• Driver impedance, Ohms: 8
• Effective frequency range, Hz (BSEN60268-5): 200-18K
• S.P.L. @ 1m, 1 watt, dB, Test Signal Bandwidth 100 Hz-10 kHz: 90
• S.P.L. @ Full power Octave Bandwidth, dB: 96
• Dispersion at 1k/2k Hz, Degrees: 176/162 (H) 173/166 (V)

Environmental

• IP-Rating: 21
• Max/Min Amb Temp: -10°C/+55°C
• Relative Humidity: ≤95%

Mechanical

• Dimensions, mm: Ø132 x 91.1
• Net Weight, Kg: 0.92
• Colour (Unless Specified): White, RAL9016
• Material: Steel
• Mounting: Fast spring clip
• Cut-out, mm: Ø119
• Security: Ceramic Block, Thermal Fuse, Capacitor


-------------------------------------------------------------------------

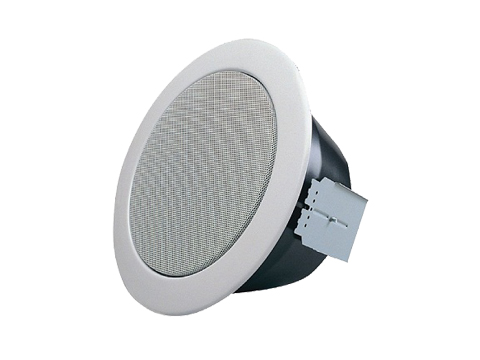

RCS5/T

Electrical

• Rated power, Watts: 6
• Tappings 100 volt line, Watts:  6/3/1.5/0.75/0.25
• Transformer Impedance, Ohms, 100V: 1.67k/3.33k/6.66k/13.3k/39.9k
• Tappings 70.7 volt line, Watts:  3/1.5/0.75/0.375/0.125
• Driver impedance, Ohms: 8
• Effective frequency range, Hz (BSEN60268-5): 70-17.5k
• S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 94
• S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 102
• Dispersion at 1k/2k Hz, Degrees: 180/180

Environmental

• IP-Rating: 21
• Max/Min Amb Temp: -10°C/+55°C
• Relative Humidity: n/a

Mechanical

• Dimensions, mm: Ø189 x 110
• Net Weight, Kg: 1.00
• Colour (Unless Specified): White, RAL9016
• Material: Steel
• Mounting: Fast spring clip
• Cut-out, mm: Ø160

-------------------------------------------------------------------------

RCS5FT/EN

Electrical

• Rated power, Watts: 6
• Tappings 100 volt line, Watts: 6/3/1.5/0.75/0.25
• Transformer Impedance, Ohms, 100V: 1.67k/3.33k/6.66k/13.3/40k
• Tappings 70.7 volt line, Watts: 3/1.5/0.75/0.375/0.125
• Driver impedance, Ohms: 8
• Effective frequency range, Hz (BSEN60268-5): 150-18k
• S.P.L. @ 1m, 1 watt, dB, Test Signal Bandwidth 100 Hz-10 kHz: 94
• S.P.L. @ Full power Octave Bandwidth, dB: 102
• Dispersion at 1k/2k Hz, Degrees: 177/93 (H) 176/118 (V)

Environmental

• IP-Rating: 21
• Max/Min Amb Temp: -10°C/+55°C
• Relative Humidity: ≤95%

Mechanical

• Dimensions, mm: Ø189 x 115.7
• Net Weight, Kg: 1.30
• Colour (Unless Specified): White, RAL9016
• Material: Steel powder coated
• Mounting: Torsion springs
• Cut-out, mm: Ø164
• Security: Ceramic Block, Thermal Fuse

-------------------------------------------------------------------------

RCS5FT/ENC

Electrical

• Rated power, Watts: 6
• Tappings 100 volt line, Watts: 6/3/1.5/0.75/0.25
• Transformer Impedance, Ohms, 100V: 1.67k/3.33k/6.66k/13.3/40k
• Tappings 70.7 volt line, Watts: 3/1.5/0.75/0.375/0.125
• Driver impedance, Ohms: 8
• Effective frequency range, Hz (BSEN60268-5): 150-18k
• S.P.L. @ 1m, 1 watt, dB, Test Signal Bandwidth 100 Hz-10 kHz: 94
• S.P.L. @ Full power Octave Bandwidth, dB: 102
• Dispersion at 1k/2k Hz, Degrees: 177/93 (H) 176/118 (V)

Environmental

• IP-Rating: 21
• Max/Min Amb Temp: -10°C/+55°C
• Relative Humidity: ≤95%

Mechanical

• Dimensions, mm: Ø189 x 115.7
• Net Weight, Kg: 1.30
• Colour (Unless Specified): White, RAL9016
• Material: Steel powder coated
• Mounting: Torsion springs
• Cut-out, mm: Ø164
• Security: Ceramic Block, Thermal Fuse, Capacitor

-------------------------------------------------------------------------

RCS6/T

Electrical

• Rated power, Watts: 6
• Tappings 100 volt line, Watts:  6/3/1.5/0.75/0.25
• Transformer Impedance, Ohms, 100V: 1.67k/3.33k/6.66k/13.3k/39.9k
• Tappings 70.7 volt line, Watts:  3/1.5/0.75/0.375/0.125
• Driver impedance, Ohms: 8
• Effective frequency range, Hz (BSEN60268-5): 65-18.5k
• S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 95
• S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 103
• Dispersion at 1k/2k Hz, Degrees: 180/110

Environmental

• IP-Rating: 21
• Max/Min Amb Temp: -10°C/+55°C
• Relative Humidity: n/a

Mechanical

• Dimensions, mm: Ø239 x 110
• Net Weight, Kg: 1.20
• Colour (Unless Specified): White, RAL9016
• Material: Steel
• Mounting: Fast spring clip
• Cut-out, mm: Ø190

-------------------------------------------------------------------------

RCS6FT/EN

Electrical

• Rated power, Watts: 6
• Tappings 100 volt line, Watts: 6/3/1.5/0.75/0.25
• Transformer Impedance, Ohms, 100V: 1.67k/3.33k/6.66k/13.3/40k
• Tappings 70.7 volt line, Watts: 3/1.5/0.75/0.375/0.125
• Driver impedance, Ohms: 8
• Effective frequency range, Hz (BSEN60268-5): 180-18k
• S.P.L. @ 1m, 1 watt, dB, Test Signal Bandwidth 100 Hz-10 kHz: 94
• S.P.L. @ Full power Octave Bandwidth, dB: 102
• Dispersion at 1k/2k Hz, Degrees: 172/79 (H) 173/80 (V)

Environmental

• IP-Rating: 21
• Max/Min Amb Temp: -10°C/+55°C
• Relative Humidity: ≤95%

Mechanical

• Dimensions, mm: Ø239 x 115.7
• Net Weight, Kg: 1.30
• Colour (Unless Specified): White, RAL9016
• Material: Steel powder coated
• Mounting: Torsion springs
• Cut-out, mm: Ø200
• Security: Ceramic Block, Thermal Fuse

-------------------------------------------------------------------------

RCS6FT/ENC

Electrical

• Rated power, Watts: 6
• Tappings 100 volt line, Watts: 6/3/1.5/0.75/0.25
• Transformer Impedance, Ohms, 100V: 1.67k/3.33k/6.66k/13.3/40k
• Tappings 70.7 volt line, Watts: 3/1.5/0.75/0.375/0.125
• Driver impedance, Ohms: 8
• Effective frequency range, Hz (BSEN60268-5): 180-18k
• S.P.L. @ 1m, 1 watt, dB, Test Signal Bandwidth 100 Hz-10 kHz: 94
• S.P.L. @ Full power Octave Bandwidth, dB: 102
• Dispersion at 1k/2k Hz, Degrees: 172/79 (H) 173/80 (V)

Environmental

• IP-Rating: 21
• Max/Min Amb Temp: -10°C/+55°C
• Relative Humidity: ≤95%

Mechanical

• Dimensions, mm: Ø239 x 115.7
• Net Weight, Kg: 1.30
• Colour (Unless Specified): White, RAL9016
• Material: Steel powder coated
• Mounting: Torsion springs
• Cut-out, mm: Ø200
• Security: Ceramic Block, Thermal Fuse, Capacitor

-------------------------------------------------------------------------

RCS8/T

Electrical

• Rated power, Watts: 10
• Tappings 100 volt line, Watts: 10/5/2.5/1.25
• Transformer Impedance, Ohms, 100V: 1k/2k/4k/8k
• Tappings 70.7 volt line, Watts: 5/2.5/1.25/0.625
• Driver impedance, Ohms: 8
• Effective frequency range, Hz (BSEN60268-5): 65-17k
• S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 94
• S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 104
• Dispersion at 1k/2k Hz, Degrees: 180/110

Environmental

• IP-Rating: 21
• Max/Min Amb Temp: -10°C/+55°C
• Relative Humidity: n/a

Mechanical

• Dimensions, mm: Ø280 x 110
• Net Weight, Kg: 1.40
• Colour (Unless Specified): White, RAL9016
• Material: Steel
• Mounting: Fast spring clip
• Cut-out, mm: Ø238

-------------------------------------------------------------------------

RCS8FT/EN

Electrical

• Rated power, Watts: 10
• Tappings 100 volt line, Watts: 10/5/2.5/1.25
• Transformer Impedance, Ohms, 100V: 1k/2k/4k/8k
• Tappings 70.7 volt line, Watts: 5/2.5/1.25/0.625
• Driver impedance, Ohms: 8
• Effective frequency range, Hz (BSEN60268-5): 150-17k
• S.P.L. @ 1m, 1 watt, dB, Test Signal Bandwidth 100 Hz-10 kHz: 93
• S.P.L. @ Full power Octave Bandwidth, dB: 103
• Dispersion at 1k/2k Hz, Degrees: 159/79 (H) 159/81 (V)

Environmental

• IP-Rating: 21
• Max/Min Amb Temp: -10°C/+55°C
• Relative Humidity: ≤95%

Mechanical

• Dimensions, mm: Ø280 x 112.8
• Net Weight, Kg: 2.20
• Colour (Unless Specified): White, RAL9016
• Material: Steel powder coated
• Mounting: Torsion springs
• Cut-out, mm: Ø246
• Security: Ceramic Block, Thermal Fuse

-------------------------------------------------------------------------

RCS8FT/ENC

Electrical

• Rated power, Watts: 10
• Tappings 100 volt line, Watts: 10/5/2.5/1.25
• Transformer Impedance, Ohms, 100V: 1k/2k/4k/8k
• Tappings 70.7 volt line, Watts: 5/2.5/1.25/0.625
• Driver impedance, Ohms: 8
• Effective frequency range, Hz (BSEN60268-5): 150-17k
• S.P.L. @ 1m, 1 watt, dB, Test Signal Bandwidth 100 Hz-10 kHz: 93
• S.P.L. @ Full power Octave Bandwidth, dB: 103
• Dispersion at 1k/2k Hz, Degrees: 159/79 (H) 159/81 (V)

Environmental

• IP-Rating: 21
• Max/Min Amb Temp: -10°C/+55°C
• Relative Humidity: ≤95%

Mechanical

• Dimensions, mm: Ø280 x 112.8
• Net Weight, Kg: 2.20
• Colour (Unless Specified): White, RAL9016
• Material: Steel powder coated
• Mounting: Torsion springs
• Cut-out, mm: Ø246
• Security: Ceramic Block, Thermal Fuse, Capacitor

-------------------------------------------------------------------------

RCS5T/COAX

Electrical

• Rated power, Watts: 10
• Tappings 100 volt line, Watts: 10/5/2.5/1.25
• Transformer Impedance, Ohms, 100V: 1k/2k/4k/8k
• Tappings 70.7 volt line, Watts: 5/2.5/1.25/0.625
• Driver impedance, Ohms: 8
• Effective frequency range, Hz (BSEN60268-5): 70-18.5k
• S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 91
• S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 101
• Dispersion at 1k/2k Hz, Degrees: 180/180

Environmental

• IP-Rating: 21
• Max/Min Amb Temp: -10°C/+55°C
• Relative Humidity: ≤95%

Mechanical

• Dimensions, mm: Ø189 x 110
• Net Weight, Kg: 1.20
• Colour (Unless Specified): White, RAL9016
• Material: Steel
• Mounting: Fast spring clip
• Cut-out, mm: Ø160

-------------------------------------------------------------------------

RCS5FTCX/EN

Electrical

• Rated power, Watts: 10
• Tappings 100 volt line, Watts: 10/5/2.5/1.25
• Transformer Impedance, Ohms, 100V: 1k/2k/4k/8k
• Tappings 70.7 volt line, Watts: 5/2.5/1.25/0.625
• Driver impedance, Ohms: 8
• Effective frequency range, Hz (BSEN60268-5): 130-18.5k
• S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 90
• S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 100
• Dispersion at 1k/2k Hz, Degrees: 175/136 (H) 175/97 (V)

Environmental

• IP-Rating: 21
• Max/Min Amb Temp: -10°C/+55°C
• Relative Humidity: ≤95%

Mechanical

• Dimensions, mm: Ø189 x 115.7
• Net Weight, Kg: 1.50
• Colour (Unless Specified): White, RAL9016
• Material: Steel
• Mounting: Fast spring clip
• Cut-out, mm: Ø164
• Security: Ceramic Block, Thermal Fuse

-------------------------------------------------------------------------

RCS5FTCX/ENC

Electrical

• Rated power, Watts: 10
• Tappings 100 volt line, Watts: 10/5/2.5/1.25
• Transformer Impedance, Ohms, 100V: 1k/2k/4k/8k
• Tappings 70.7 volt line, Watts: 5/2.5/1.25/0.625
• Driver impedance, Ohms: 8
• Effective frequency range, Hz (BSEN60268-5): 130-18.5k
• S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 90
• S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 100
• Dispersion at 1k/2k Hz, Degrees: 175/136 (H) 175/97 (V)

Environmental

• IP-Rating: 21
• Max/Min Amb Temp: -10°C/+55°C
• Relative Humidity: ≤95%

Mechanical

• Dimensions, mm: Ø189 x 115.7
• Net Weight, Kg: 1.50
• Colour (Unless Specified): White, RAL9016
• Material: Steel
• Mounting: Fast spring clip
• Cut-out, mm: Ø164
• Security: Ceramic Block, Thermal Fuse, Capacitor

-------------------------------------------------------------------------

RCS6T/COAX

Electrical

• Rated power, Watts: 10
• Tappings 100 volt line, Watts: 10/5/2.5/1.25
• Transformer Impedance, Ohms, 100V: 1k/2k/4k/8k
• Tappings 70.7 volt line, Watts: 5/2.5/1.25/0.625
• Driver impedance, Ohms: 8
• Effective frequency range, Hz (BSEN60268-5): 65-20k
• S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 91
• S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 101
• Dispersion at 1k/2k Hz, Degrees: 180/180

Environmental

• IP-Rating: 21
• Max/Min Amb Temp: -10°C/+55°C
• Relative Humidity: ≤95%

Mechanical

• Dimensions, mm: Ø239 x 110
• Net Weight, Kg: 1.40
• Colour (Unless Specified): White, RAL9016
• Material: Steel
• Mounting: Fast spring clip
• Cut-out, mm: Ø190

-------------------------------------------------------------------------

RCS6FTCX/EN

Electrical

• Rated power, Watts: 10
• Tappings 100 volt line, Watts: 10/5/2.5/1.25
• Transformer Impedance, Ohms, 100V: 1k/2k/4k/8k
• Tappings 70.7 volt line, Watts: 5/2.5/1.25/0.625
• Driver impedance, Ohms: 8
• Effective frequency range, Hz (BSEN60268-5): 130-18.5k
• S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 92
• S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 102
• Dispersion at 1k/2k Hz, Degrees: 164/144 (H) 164/143 (V)

Environmental

• IP-Rating: 21
• Max/Min Amb Temp: -10°C/+55°C
• Relative Humidity: ≤95%

Mechanical

• Dimensions, mm: Ø239 x 115.7
• Net Weight, Kg: 1.50
• Colour (Unless Specified): White, RAL9016
• Material: Steel
• Mounting: Fast spring clip
• Cut-out, mm: Ø200
• Security: Ceramic Block, Thermal Fuse

-------------------------------------------------------------------------

RCS6FTCX/ENC

Electrical

• Rated power, Watts: 10
• Tappings 100 volt line, Watts: 10/5/2.5/1.25
• Transformer Impedance, Ohms, 100V: 1k/2k/4k/8k
• Tappings 70.7 volt line, Watts: 5/2.5/1.25/0.625
• Driver impedance, Ohms: 8
• Effective frequency range, Hz (BSEN60268-5): 130-18.5k
• S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 92
• S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 102
• Dispersion at 1k/2k Hz, Degrees: 164/144 (H) 164/143 (V)

Environmental

• IP-Rating: 21
• Max/Min Amb Temp: -10°C/+55°C
• Relative Humidity: ≤95%

Mechanical

• Dimensions, mm: Ø239 x 115.7
• Net Weight, Kg: 1.50
• Colour (Unless Specified): White, RAL9016
• Material: Steel
• Mounting: Fast spring clip
• Cut-out, mm: Ø200
• Security: Ceramic Block, Thermal Fuse, Capacitor

-------------------------------------------------------------------------

RCS8T/COAX

Electrical

• Rated power, Watts: 20
• Tappings 100 volt line, Watts: 20/10/5/2.5
• Transformer Impedance, Ohms, 100V: 0.5k/1k/2k/4k
• Tappings 70.7 volt line, Watts: 10/5/2.5/1.25
• Driver impedance, Ohms: 8
• Effective frequency range, Hz (BSEN60268-5): 60-20k
• S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 91
• S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 104
• Dispersion at 1k/2k Hz, Degrees: 180/100

Environmental

• IP-Rating: 21
• Max/Min Amb Temp: -10°C/+55°C
• Relative Humidity: n/a

Mechanical

• Dimensions, mm: Ø280 x 110
• Net Weight, Kg: 1.85
• Colour (Unless Specified): White, RAL9016
• Material: Steel
• Mounting: Fast spring clip
• Cut-out, mm: Ø238

-------------------------------------------------------------------------

RCS8FTCX/EN

Electrical

• Rated power, Watts: 20
• Tappings 100 volt line, Watts: 20/10/5/2.5
• Transformer Impedance, Ohms, 100V: 0.5k/1k/2k/4k
• Tappings 70.7 volt line, Watts: 10/5/2.5/1.25
• Driver impedance, Ohms: 8
• Effective frequency range, Hz (BSEN60268-5): 100-20k
• S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 94
• S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 107
• Dispersion at 1k/2k Hz, Degrees: 159/76 (H) 159/81 (V)

Environmental

• IP-Rating: 21
• Max/Min Amb Temp: -10°C/+55°C
• Relative Humidity: ≤95%

Mechanical

• Dimensions, mm: Ø280 x 112.8
• Net Weight, Kg: 2.93
• Colour (Unless Specified): White, RAL9016
• Material: Steel
• Mounting: Fast spring clip
• Cut-out, mm: Ø246
• Security: Ceramic Block, Thermal Fuse

-------------------------------------------------------------------------

RCS8FTCX/ENC

Electrical

• Rated power, Watts: 20
• Tappings 100 volt line, Watts: 20/10/5/2.5
• Transformer Impedance, Ohms, 100V: 0.5k/1k/2k/4k
• Tappings 70.7 volt line, Watts: 10/5/2.5/1.25
• Driver impedance, Ohms: 8
• Effective frequency range, Hz (BSEN60268-5): 100-20k
• S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 94
• S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 107
• Dispersion at 1k/2k Hz, Degrees: 159/76 (H) 159/81 (V)

Environmental

• IP-Rating: 21
• Max/Min Amb Temp: -10°C/+55°C
• Relative Humidity: ≤95%

Mechanical

• Dimensions, mm: Ø280 x 112.8
• Net Weight, Kg: 2.93
• Colour (Unless Specified): White, RAL9016
• Material: Steel
• Mounting: Fast spring clip
• Cut-out, mm: Ø246
• Security: Ceramic Block, Thermal Fuse, Capacitor

APPLICATIONS

• Schools
• Stores
• Shopping malls
• Hotels
• Train stations
• Universities
• Industrial sites

Case studies

DOCUMENT DOWNLOADS

Compare models
