DESCRIPTION

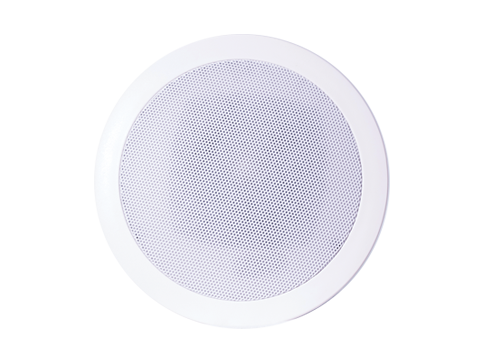

The RLS Series are budget ceiling speakers with a metal housing. RLS5T/EN has a fabric cover on the back. Thanks to its spring clip, the mounting of these products is very fast.

The RLS are suitable for use in applications where background music is the primary requirement such as shops, restaurants, hotels, public houses, offices etc.

• EN models are compliant to the EN54-24 standard for Voice Alarm systems.

• FT models are delivered with a firedome.

FEATURES

Models:

• RLS5/T
• RLS5/FTS

EN54-24 Certified Models:

• RLS5T/EN
• RLS5FTS/EN

Certification:

• EN54-24:2008: Fire detection and fire alarm system - Certificat N° 0359-CPR-00279

SPECIFICATIONS

RLS5/T

Electrical

• Rated power, Watts: 6
• Tappings 100 volt line, Watts: 6/3/1.5
• Transformer Impedance, Ohms, 100V: 1.67k/3.33k/6.67k
• Tappings 70.7 volt line, Watts: 3/1.5/0.75
• Driver impedance, Ohms: 4
• Effective frequency range, Hz (BSEN60268-5): 100-12K
• S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 90
• S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 98
• Dispersion at 1k Hz, Degrees: 180

Environmental

• IP-Rating: n/a
• Max/Min Amb Temp: n/a
• Relative Humidity: n/a

Mechanical

• Dimensions, mm: Height 65, Ø174
• Net Weight, Kg: 0.54
• Colour (Unless Specified): RAL9016
• Material: Steel
• Mounting: Fast spring clip
• Cut-out, mm: Ø155

-------------------------------------------------------------------------

RLS5/FTS

Electrical

• Rated power, Watts: 6
• Tappings 100 volt line, Watts: 6/3/1.5
• Transformer Impedance, Ohms, 100V: 1.67k/3.33k/6.67k
• Tappings 70.7 volt line, Watts: 3/1.5/0.75
• Driver impedance, Ohms: 4
• Effective frequency range, Hz (BSEN60268-5): 100-12K
• S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 90
• S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 98

Environmental

• IP-Rating: 21
• Max/Min Amb Temp: -10°C/+55°C
• Relative Humidity: ≤95%

Mechanical

• Dimensions, mm: Height 110, Ø174
• Net Weight, Kg: 0.86
• Colour (Unless Specified): White, RAL9016
• Material: Steel
• Mounting: Fast spring clip
• Cut-out, mm: Ø155

-------------------------------------------------------------------------

RLS5T/EN

Electrical

• Rated power, Watts: 6
• Tappings 100 volt line, Watts: 6/3/1.5
• Transformer Impedance, Ohms, 100V: 1.67k/3.33k/6.66k
• Tappings 70.7 volt line, Watts: 3/1.5/0.75
• Driver impedance, Ohms: 4
• Effective frequency range, Hz (BSEN60268-5): 100-18.5K
• S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 93
• S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 101
• Dispersion at 1k/2k Hz, Degrees: 173/139 (H) 184/114 (V)

Environmental

• IP-Rating: 21
• Max/Min Amb Temp: -10°C/+55°C
• Relative Humidity: ≤95%

Mechanical

• Dimensions, mm: Height 60, Ø186
• Net Weight, Kg: 0.59
• Colour (Unless Specified): White, RAL9016
• Material: Metal with fabric cover on back
• Mounting: Springs
• Cut-out, mm: Ø157
• Security: Ceramic Block, Thermal Fuse

-------------------------------------------------------------------------

RLS5FTS/EN

Electrical

• Rated power, Watts: 6
• Tappings 100 volt line, Watts: 6/3/1.5
• Transformer Impedance, Ohms, 100V: 1.67k/3.33k/6.66k
• Tappings 70.7 volt line, Watts: 3/1.5/0.75
• Driver impedance, Ohms: 4
• Effective frequency range, Hz (BSEN60268-5): 150-18.5K
• S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 93
• S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 101
• Dispersion at 1k/2k Hz, Degrees: 167/151 (H) 173/146 (V)

Environmental

• IP-Rating: 21
• Max/Min Amb Temp: -10°C/+55°C
• Relative Humidity: ≤95%

Mechanical

• Dimensions, mm: Height 146, Ø186
• Net Weight, Kg: 1.02
• Colour (Unless Specified): White, RAL9016
• Material: Steel
• Mounting: Fast spring clip
• Cut-out, mm: Ø162
• Security: Ceramic Block, Thermal Fuse


APPLICATIONS

• Schools
• Stores
• Shopping malls
• Hotels
• Train stations
• Universities
• Industrial sites
