Ceiling Loudspeakers

RNS Series

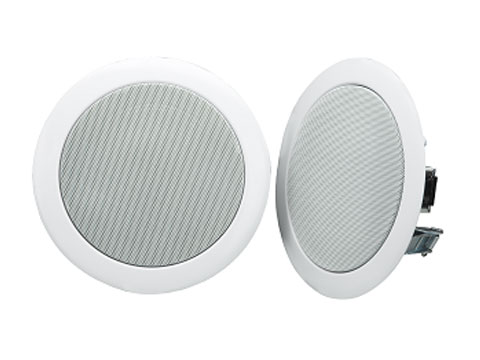

Low-cost Round Metal Ceiling Speakers

  • Economical
  • Simple installation
 More information >
Low-cost Round Metal Ceiling Speakers
Low-cost Round Metal Ceiling Speakers
Low-cost Round Metal Ceiling Speakers
Low-cost Round Metal Ceiling Speakers

DESCRIPTION

The RNS Series include one-piece standard ceiling speaker in a metal Version for quick installation. The three models of this line fit visually very well in our existing product lines.

Two metal retaining springs allow a safe and even fit of these built-in loudspeakers in the ceiling. The speaker broadband chassis and the 100 V transformer form a unit with the front grille.

FEATURES

Models:


SPECIFICATIONS

RNS5/T

Electrical

  • Rated power, Watts: 6
  • Tappings 100 volt line, Watts: 6/3/1.5/0.75/0.25
  • Transformer Impedance, Ohms, 100V: 1.67k/3.33k/6.66k/13.3k/39.9k
  • Tappings 70.7 volt line, Watts: 3/1.5/0.75/0.375/0.125
  • Driver impedance, Ohms: 8
  • Effective Frequency Range, Hz (BSEN60268-5): 120-17.5K
  • S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 90
  • S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 97
  • Dispersion at 1k Hz, Degrees: 180

Environmental

  • IP-Rating: n/a
  • Max/Min Amb Temp: n/a
  • Relative Humidity: n/a

Mechanical

  • Dimensions, mm: Height 65, Ø180
  • Net Weight, Kg: 0.80
  • Colour (Unless Specified): White, RAL9016
  • Material: Steel powder coated
  • Mounting: Fast spring clips
  • Cut-out, mm: Ø155

-------------------------------------------------------------------------

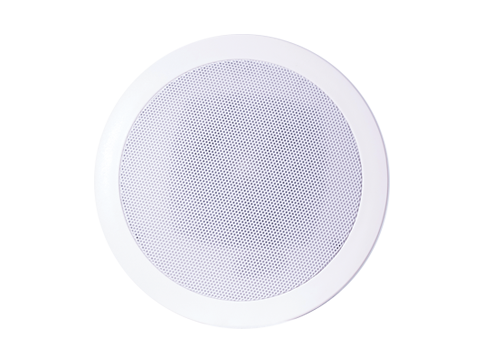

RNS6/T

Electrical

  • Rated power, Watts: 6
  • Tappings 100 volt line, Watts: 6/3/1.5/0.75/0.25
  • Transformer Impedance, Ohms, 100V: 1.67k/3.33k/6.66k/13.3k/39.9k
  • Tappings 70.7 volt line, Watts: 3/1.5/0.75/0.375/0.125
  • Driver impedance, Ohms: 8
  • Effective frequency range, Hz (BSEN60268-5): 110-18.5K
  • S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 92
  • S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 99
  • Dispersion at 1k Hz, Degrees: 160

Environmental

  • IP-Rating: n/a
  • Max/Min Amb Temp: n/a
  • Relative Humidity: n/a

Mechanical

  • Dimensions, mm: Height 65, Ø227
  • Net Weight, Kg: 0.95
  • Colour (Unless Specified): White, RAL9016
  • Material: Steel powder coated
  • Mounting: Fast spring clips
  • Cut-out, mm: Ø198

-------------------------------------------------------------------------

RNS8/T

Electrical

  • Rated power, Watts: 6
  • Tappings 100 volt line, Watts: 6/3/1.5/0.75/0.25
  • Transformer Impedance, Ohms, 100V: 1.67k/3.33k/6.66k/13.3k/39.9k
  • Tappings 70.7 volt line, Watts: 3/1.5/0.75/0.375/0.125
  • Driver impedance, Ohms: 8
  • Effective frequency range, Hz (BSEN60268-5): 80-18.5K
  • S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 92
  • S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 99
  • Dispersion at 1k Hz, Degrees: 130

Environmental

  • IP-Rating: n/a
  • Max/Min Amb Temp: n/a
  • Relative Humidity: n/a

Mechanical

  • Dimensions, mm: Height 65, Ø280
  • Net Weight, Kg: 1.20
  • Colour (Unless Specified): White, RAL9016
  • Material: Steel powder coated
  • Mounting: Fast spring clips
  • Cut-out, mm: Ø244





Rated power, Watts: 6
Tappings 100 volt line, Watts: 6/3/1.5/0.75/0.25
Transformer Impedance, Ohms, 100V: 1.67k/3.33k/6.66k/13.3k/39.9k
Tappings 70.7 volt line, Watts: 3/1.5/0.75/0.375/0.125
Driver impedance, Ohms: 8
Effective Frequency Range, Hz (BSEN60268-5): 120-17.5K
S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 90
S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 97
Dispersion at 1k Hz, Degrees: 180

IP-Rating: n/a
Max/Min Amb Temp: n/a
Relative Humidity: n/a

Dimensions, mm: Height 65, Ø180
Net Weight, Kg: 0.80
Colour (Unless Specified): White, RAL9016
Material: Steel powder coated
Mounting: Fast spring clips
Cut-out, mm: Ø155

Rated power, Watts: 6
Tappings 100 volt line, Watts: 6/3/1.5/0.75/0.25
Transformer Impedance, Ohms, 100V: 1.67k/3.33k/6.66k/13.3k/39.9k
Tappings 70.7 volt line, Watts: 3/1.5/0.75/0.375/0.125
Driver impedance, Ohms: 8
Effective frequency range, Hz (BSEN60268-5): 110-18.5K
S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 92
S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 99
Dispersion at 1k Hz, Degrees: 160

IP-Rating: n/a
Max/Min Amb Temp: n/a
Relative Humidity: n/a

Dimensions, mm: Height 65, Ø227
Net Weight, Kg: 0.95
Colour (Unless Specified): White, RAL9016
Material: Steel powder coated
Mounting: Fast spring clips
Cut-out, mm: Ø198

Rated power, Watts: 6
Tappings 100 volt line, Watts: 6/3/1.5/0.75/0.25
Transformer Impedance, Ohms, 100V: 1.67k/3.33k/6.66k/13.3k/39.9k
Tappings 70.7 volt line, Watts: 3/1.5/0.75/0.375/0.125
Driver impedance, Ohms: 8
Effective frequency range, Hz (BSEN60268-5): 80-18.5K
S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 92
S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 99
Dispersion at 1k Hz, Degrees: 130

IP-Rating: n/a
Max/Min Amb Temp: n/a
Relative Humidity: n/a

Dimensions, mm: Height 65, Ø280
Net Weight, Kg: 1.20
Colour (Unless Specified): White, RAL9016
Material: Steel powder coated
Mounting: Fast spring clips
Cut-out, mm: Ø244

APPLICATIONS

Case studies

Supermarket PA System

Discover our Public Address and Voice Alarm solutions for the corporate and retail sector.

Stores

Discover our Public Address and Voice Alarm solutions for the corporate and retail sector.

Underground Parking Lot and Floors

Discover our Public Address and Voice Alarm solutions for the corporate and retail sector.

DOCUMENT DOWNLOADS

Type
Filename
Catalogue
Type: [PDF]
Filename: Loudspeakers_Catalogue
Download:
Datasheet
Type: [PDF]
Filename: RNS5/T_Datasheet
Download:
Type: [PDF]
Filename: RNS8/T_Datasheet
Download:
Type: [PDF]
Filename: RNS6/T_Datasheet
Download:

Type
Filename
Catalogue
Type: [PDF]
Filename: Catalogue_Haut-parleurs
Download:
Datasheet
Type: [PDF]
Filename: RNS5/T_Fiche produit
Download:
Type: [PDF]
Filename: RNS6/T_Fiche produit
Download:
Type: [PDF]
Filename: RNS8/T_Fiche produit
Download:

Type
Filename
Catalogue
Type: [PDF]
Filename: Lautsprecher_katalog
Download:
Datasheet
Type: [PDF]
Filename: RNS8/T_Datasheet
Download:
Type: [PDF]
Filename: RNS6/T_Datenblatt
Download:
Type: [PDF]
Filename: RNS5/T_Datenblatt
Download:

Type
Filename
Catalogue
Type: [PDF]
Filename: Katalog Zvučnika
Download:

Compare models

Model name
Power Rating Watts
Effective Frequency Range Hz
S.P.L. @ 1 m, 1 Watt dB
S.P.L. @ 1 m, Full Power dB
Cut Out mm
Model name: RNS5/T
Power Rating Watts: 6W / 100V
Effective Frequency Range Hz: 120 - 17.500
S.P.L. @ 1 m, 1 Watt dB: 90
S.P.L. @ 1 m, Full Power dB: 97
Cut Out mm: 155
Model name: RNS6/T
Power Rating Watts: 6W / 100V
Effective Frequency Range Hz: 110 - 18.500
S.P.L. @ 1 m, 1 Watt dB: 92
S.P.L. @ 1 m, Full Power dB: 99
Cut Out mm: 198
Model name: RNS8/T
Power Rating Watts: 6W / 100V
Effective Frequency Range Hz: 80 - 18.500
S.P.L. @ 1 m, 1 Watt dB: 92
S.P.L. @ 1 m, Full Power dB: 99
Cut Out mm: 244
