DESCRIPTION

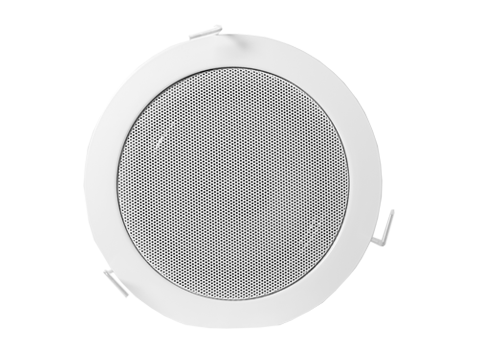

The RGS Series are attractive ceiling mounted loudspeakers in a metal version. These products with the well-known bayonet spring system fit in visually very well in our existing product line. Three metal snap springs allow a safe and even fit of these built-in loudspeakers.

The high-quality loudspeaker broadband chassis and the 100 V transformer form a unit with the front grille which lock the system with the bayonet on the mounting ring.

• EN models are compliant to the EN54-24 standard for Voice Alarm systems.

• ENC models are compliant to the EN54-24 standard for Voice Alarm systems, it includes a capacitor for DC line monitoring.

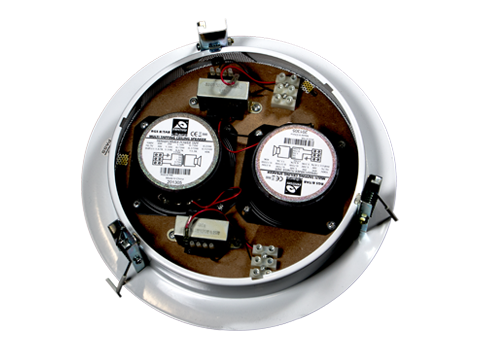

• A/B models are A/B line speakers for Voice Alarm systems. It contain 2 independent speaker systems with Chassis, 100 V Transformer, ceramic clamp, thermal fuse and capacitor (ENC Version).

FEATURES

Models:

• RGS5/T
• RGS6/T

EN54-24 certified models:

• RGS5FT/EN
• RGS5FT/ENC
• RGS6FT/EN
• RGS6FT/ENC
• RGS8FTABX/EN
• RGS8FTAB/EN
• RGS8FTAB/ENC

Certification:

• EN54-24:2008: Fire detection and fire alarm system - Certificate N° 0905-CPR-201110 (RGS5 & RGS6 models)
• EN54-24:2008: Fire detection and fire alarm system - Certificate N° 0905-CPR-00636 (RGS8 models)

SPECIFICATIONS

• Rated power, Watts: 6

• Tappings 100 volt line, Watts: 6/3/1.5/0.75/0.25
• Transformer Impedance, Ohms, 100V: 1.67k/3.33k/6.66k/13.3/39.9k
• Tappings 70.7 volt line, Watts: 3/1.5/0.75/0.375
• Driver impedance, Ohms: 8
• Effective frequency range, Hz (BSEN60268-5): 100-17.5k
• S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 87
• S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 95
• Dispersion at 1k/2k Hz, Degrees: 180/160

• IP-Rating: n/a
• Max/Min Amb Temp: n/a
• Relative Humidity: n/a

• Dimensions, mm: Height 73, Ø190
• Net Weight, kg: 0.90
• Colour (Unless Specified): White, RAL9016
• Material: Electro-galvanized Steel
• Mounting: Bayonet system with 3 retaining springs
• Cut-out, mm: Ø172

• Rated power, Watts: 6
• Tappings 100 volt line, Watts: 6/3/1.5/0.75/0.25
• Transformer Impedance, Ohms, 100V: 1.67k/3.33k/6.66k/13.3/40k
• Tappings 70.7 volt line, Watts: 3/1.5/0.75/0.375/0.125
• Driver impedance, Ohms: 8
• Effective frequency range, Hz (BSEN60268-5): 130-17.5k
• S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 90
• S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 98
• Dispersion at 1k/2k Hz, Degrees: 169/95 (H) 170/96 (V)

• IP-Rating: 21
• Max/Min Amb Temp: -10°C/+55°C
• Relative Humidity: ≤95%

• Dimensions, mm: Height 94, Ø190

• Net Weight, kg: 1.10
• Colour (Unless Specified): White, RAL9016
• Material: Electro-galvanized Steel
• Mounting: Bayonet system with 3 retaining springs
• Cut-out, mm: Ø172
• Security: Ceramic Block, Thermal Fuse

• Rated power, Watts: 6
• Tappings 100 volt line, Watts: 6/3/1.5/0.75/0.25
• Transformer Impedance, Ohms, 100V: 1.67k/3.33k/6.66k/13.3/39.9k
• Tappings 70.7 volt line, Watts: 3/1.5/0.75/0.375/0.125
• Driver impedance, Ohms: 8
• Effective frequency range, Hz (BSEN60268-5): 100-17.5k
• S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 90
• S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 98
• Dispersion at 1k/2k Hz, Degrees: 169/95 (H) 170/96 (V)

• IP-Rating: 21
• Max/Min Amb Temp: -10°C/+55°C
• Relative Humidity: ≤95%

• Dimensions, mm: Height 94, Ø190
• Net Weight, kg: 1.10
• Colour (Unless Specified): White, AL9016
• Material: Electro-galvanized Steel
• Mounting: Bayonet system with 3 retaining springs
• Cut-out, mm: Ø172
• Security: Ceramic Block, Thermal Fuse, Capacitor

• Rated power, Watts: 6
• Tappings 100 volt line, Watts: 6/3/1.5/0.75/0.25
• Transformer Impedance, Ohms, 100V: 1.67k/3.33k/6.66k/13.3/39.9k
• Tappings 70.7 volt line, Watts: 3/1.5/0.75/0.375
• Driver impedance, Ohms: 8
• Effective frequency range, Hz (BSEN60268-5): 100-17.5k
• S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 92
• S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 100
• Dispersion at 1k/2k Hz, Degrees: 180/180

• IP-Rating: n/a
• Max/Min Amb Temp: n/a
• Relative Humidity: n/a

• Dimensions, mm: Height 73, Ø215
• Net Weight, kg: 1.10
• Colour (Unless Specified): White, RAL9016
• Material: Electro-galvanized Steel
• Mounting: Bayonet system with 3 retaining springs
• Cut-out, mm: Ø195

• Rated power, Watts: 6
• Tappings 100 volt line, Watts: 6/3/1.5/0.75/0.25
• Transformer Impedance, Ohms, 100V: 1.67k/3.33k/6.66k/13.3/40k
• Tappings 70.7 volt line, Watts: 3/1.5/0.75/0.375/0.125
• Driver impedance, Ohms: 8
• Effective frequency range, Hz (BSEN60268-5): 100-17.5k
• S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 94
• S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 102
• Dispersion at 1k/2k Hz, Degrees: 169/95 (H) 170/96 (V)

• IP-Rating: 21
• Max/Min Amb Temp: -10°C/+55°C
• Relative Humidity: ≤95%

• Dimensions, mm: Height 106, Ø215
• Net Weight, kg: 1.35
• Colour (Unless Specified): White, RAL9016
• Material: Electro-galvanized Steel
• Mounting: Bayonet system with 3 retaining springs
• Cut-out, mm: Ø195
• Security: Ceramic Block, Thermal Fuse

• Rated power, Watts: 6
• Tappings 100 volt line, Watts: 6/3/1.5/0.75/0.25
• Transformer Impedance, Ohms, 100V: 1.67k/3.33k/6.66k/13.3/40k
• Tappings 70.7 volt line, Watts: 3/1.5/0.75/0.375/0.125
• Driver impedance, Ohms: 8
• Effective frequency range, Hz (BSEN60268-5): 100-17.5k
• S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 94
• S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 102
• Dispersion at 1k/2k Hz, Degrees: 169/95 (H) 170/96 (V)

• IP-Rating: 21
• Max/Min Amb Temp: -10°C/+55°C
• Relative Humidity: ≤95%

• Dimensions, mm: Height 106, Ø215
• Net Weight, kg: 1.35
• Colour (Unless Specified): White, RAL9016
• Material: Electro-galvanized Steel
• Mounting: Bayonet system with 3 retaining springs
• Cut-out, mm: Ø195
• Security: Ceramic Block, Thermal Fuse, Capacitor

• Rated power, Watts: 2x(6)
• Tappings 100 volt line, Watts: 2x(6/3/1.5/0.75/0.25)
• Transformer Impedance, Ohms, 100V: 2x(1.67k/3.33k/6.66k/13.3k/40k)
• Tappings 70.7 volt line, Watts: 2x(3/1.5/0.75/0.375/0.125)
• Driver impedance, Ohms: 2x(8)
• Effective frequency range, Hz (BSEN60268-5): 300-17.5k
• S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 82
• S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 92
• Dispersion at 1k/2k Hz, Degrees: 147/66 (H) 151/73 (V)

• IP-Rating: 21
• Max/Min Amb Temp: -10°C/+55°C
• Relative Humidity: ≤95%

• Dimensions, mm: Height 107, Ø265
• Net Weight, kg: 2.15
• Colour (Unless Specified): White, RAL9016
• Material: Steel
• Mounting: Bayonet system with 3 retaining springs
• Cut-out, mm: Ø238
• Safety: Plastic terminal

• Rated power, Watts: 2x(6)
• Tappings 100 volt line, Watts: 2x(6/3/1.5/0.75/0.25)
• Transformer Impedance, Ohms, 100V: 2x(1.67k/3.33k/6.66k/13.3k/40k)
• Tappings 70.7 volt line, Watts: 2x(3/1.5/0.75/0.375/0.125)
• Driver impedance, Ohms: 2x(8)
• Effective frequency range, Hz (BSEN60268-5): 300-17.5k
• S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 82
• S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 92
• Dispersion at 1k/2k Hz, Degrees: 147/66 (H) 151/73 (V)

• IP-Rating: 21
• Max/Min Amb Temp: -10°C/+55°C
• Relative Humidity: ≤95%

• Dimensions, mm: Height 107, Ø265
• Net Weight, kg: 2.15
• Colour (Unless Specified): White, RAL9016
• Material: Steel
• Mounting: Bayonet system with 3 retaining springs
• Cut-out, mm: Ø238
• Security: 2x Ceramic Block, 2x Thermal Fuse

• Rated power, Watts: 2x(6)
• Tappings 100 volt line, Watts: 2x(6/3/1.5/0.75/0.25)
• Transformer Impedance, Ohms, 100V: 2x(1.67k/3.33k/6.66k/13.3k/40k)
• Tappings 70.7 volt line, Watts: 2x(3/1.5/0.75/0.375/0.125)
• Driver impedance, Ohms: 2x(8)
• Effective frequency range, Hz (BSEN60268-5): 300-17.5k
• S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 82
• S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 92
• Dispersion at 1k/2k Hz, Degrees: 147/66 (H) 151/73 (V)

• IP-Rating: 21
• Max/Min Amb Temp: -10°C/+55°C
• Relative Humidity: ≤95%

• Dimensions, mm: Height 107, Ø265
• Net Weight, kg: 2.15
• Colour (Unless Specified): White, RAL9016
• Material: Steel
• Mounting: Bayonet system with 3 retaining springs
• Cut-out, mm: Ø238
• Security: Ceramic Block, Thermal Fuse, Capacitor for DC-Line monitoring

APPLICATIONS

• Schools
• Stores
• Shopping malls
• Hotels
• Train stations
• Universities
• Industrial sites
