Ceiling Loudspeakers

PCL Series

Low-cost Round Plastic Ceiling Speakers

  • Economical
  • Simple installation
More information >

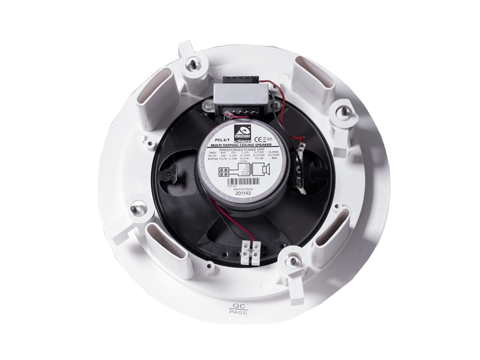

Low-cost Round Plastic Ceiling Speakers
Low-cost Round Plastic Ceiling Speakers
Low-cost Round Plastic Ceiling Speakers

DESCRIPTION

The PCL Series of ceiling loudspeakers are manufactured in high grade white ABS plastic compound, UL, VO yellow card approved, with aluminum, epoxy powder coated grille. This Combination of materials offers a cost effective alternative to our RCS range, whilst still maintaining its stylish design but with the added benefit of being weather resistant.

Supplied with a dual cone drive unit, giving a wider frequency range than the standard single cone, making the PCL range more suitable for use in applications where background music is a primary requirement.

Manufactured and tested to a high standard in accordance with BS6840, these units can be treated for use in damp humid environments or facilities where the units need to be frequently wiped clean.


FEATURES

Models:


SPECIFICATIONS

Electrical

  • Rated power, Watts: 6
  • Tappings 100 volt line, Watts: 6/3/1.5/0.75/0.25
  • Transformer Impedance, Ohms, 100V: 1.67k/3.33k/6.66k/13.3k/39.9k
  • Tappings 70.7 volt line, Watts: 3/1.5/0.75/0.375/0.125
  • Driver impedance, Ohms: 8
  • Effective frequency range, Hz (BSEN60268-5): 85-18.5K
  • S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 82
  • S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 90
  • Dispersion at 1k/2k Hz, Degrees: 180/120

Environmental

  • IP-Rating: 21
  • Max/Min Amb Temp: -25°C/+70°C
  • Relative Humidity: ≤60%

Mechanical

  • Dimensions, mm: Ø234
  • Net Weight, Kg: 0.9
  • Color (Unless Specified): White, RAL9016
  • Material: Plastic Baffle ABS with UV inhibitors,
  • Metal driver chassis & grille
  • Mounting: Rotary compression clamps
  • Cut-out, mm: Ø194

Electrical

Rated power, Watts: 6
Tappings 100 volt line, Watts: 6/3/1.5/0.75/0.25
Transformer Impedance, Ohms, 100V: 1.67k/3.33k/6.66k/13.3k/39.9k
Tappings 70.7 volt line, Watts: 3/1.5/0.75/0.375/0.125
Driver impedance, Ohms: 8
Effective frequency range, Hz (BSEN60268-5): 85-18.5K
S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 82
S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 90
Dispersion at 1k/2k Hz, Degrees: 180/120

Environmental

IP-Rating: 21
Max/Min Amb Temp: -25°C/+70°C
Relative Humidity: ≤60%

Mechanical

Dimensions, mm: Ø234
Net Weight, Kg: 0.9
Color (Unless Specified): White, RAL9016
Material: Plastic Baffle ABS with UV inhibitors,
Metal driver chassis & grille:
Mounting: Rotary compression clamps
Cut-out, mm: Ø194

APPLICATIONS

Case studies

DOCUMENT DOWNLOADS

Type
Filename
Catalogue
Type: [PDF]
Filename: Loudspeakers_Catalogue
Download:
Datasheet
Type: [PDF]
Filename: PCL6/T_Datasheet
Download:
Type: [PDF]
Filename: PCL5/T_Datasheet
Download:

Type
Filename
Catalogue
Type: [PDF]
Filename: Catalogue_Haut-parleurs
Download:
Datasheet
Type: [PDF]
Filename: PCL5/T_Fiche produit
Download:
Type: [PDF]
Filename: PCL6/T_Fiche produit
Download:

Type
Filename
Catalogue
Type: [PDF]
Filename: Lautsprecher_katalog
Download:
Datasheet
Type: [PDF]
Filename: PCL6/T_Datenblatt
Download:
Type: [PDF]
Filename: PCL5/T_Datenblatt
Download:

Type
Filename
Catalogue
Type: [PDF]
Filename: Katalog Zvučnika
Download:

Compare models

Model name
Power Rating Watts
Effective Frequency Range Hz
S.P.L. @ 1 m, 1 Watt dB
S.P.L. @ 1 m, Full Power dB
Cut Out mm
Model name: PCL5/T
Power Rating Watts: 6W / 100V
Effective Frequency Range Hz: 100 - 17.500
S.P.L. @ 1 m, 1 Watt dB: 83
S.P.L. @ 1 m, Full Power dB: 91
Cut Out mm: 168
Model name: PCL6/T
Power Rating Watts: 6W / 100V
Effective Frequency Range Hz: 85 - 18.500
S.P.L. @ 1 m, 1 Watt dB: 82
S.P.L. @ 1 m, Full Power dB: 90
Cut Out mm: 194
