Ceiling Loudspeakers

CCS Series

Pro-sound Ceiling Speakers

  • Good acoustic quality
  • Bass reflex
  • Two versions are available: 16 Ohms (CCS4 & CCS6) and 100 Volts (CCS4/T & CCS6/T)
 More information >

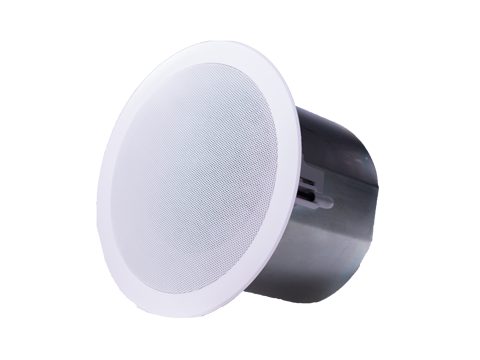

Pro-sound Ceiling Speakers

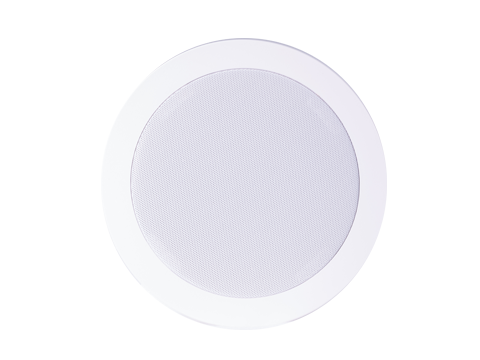

Pro-sound Ceiling Speakers

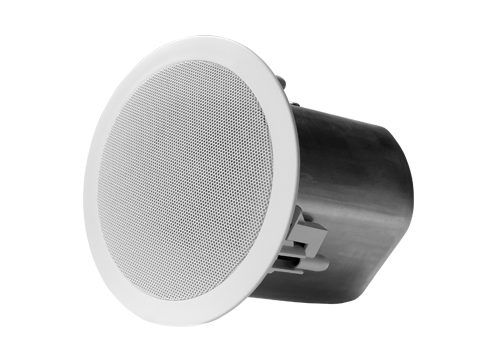

Pro-sound Ceiling Speakers

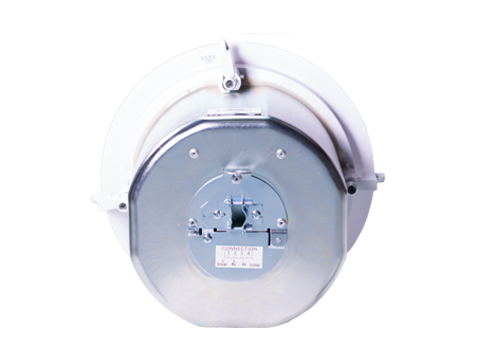

Pro-sound Ceiling Speakers
Pro-sound Ceiling Speakers
Pro-sound Ceiling Speakers

DESCRIPTION

The bassreflex ceiling mount loudspeakers CCS series consist of a low-frequency chassis and an additional high-frequency driver. This closed back allows for a bass reflex construction, which is reflected in the excellent reproduction of music. Atypical for 100 V speakers is the extremely high sound reproduction and the balanced sound picture, which impresses with the first hearing. Wherever powerful basses and clear heights are required to create the right atmosphere, this speaker is the first choice.  The performance can be adjusted without great effort with a selector switch below the front grille.


FEATURES

Models:


SPECIFICATIONS

CCS4

Electrical

  • Rated power, Watts: 30
  • Driver impedance, Ohms: 16
  • Effective Frequency Range, Hz (BSEN60268-5): 65-19.5k
  • S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 86
  • S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 101
  • Dispersion at 1k/2k Hz, Degrees: 180/160

Environmental

  • IP-Rating: n/a
  • Max/Min Amb Temp: -10°C/+55°C
  • Relative Humidity: ≤65%

Mechanical

  • Dimensions, front and depth, mm: 195.5 x 206.74
  • Net Weight, Kg: 2.2
  • Colour (Unless Specified): White, RAL9016
  • Material: Plastic Baffle ABS with UV inhibitors
  • Mounting: Rotary compression clamps
  • Cut-out, mm: Ø168

---------------------------------------------------------------------------

CCS4/T

Electrical

  • Rated power, Watts: 30
  • Tappings 100 volt line, Watts: 30/15/7.5/3.75
  • Transformer Impedance, Ohms, 100V: 330/660/1.32k/2.64k
  • Tappings 70.7 volt line, Watts: 15/7.5/3.75/1.875
  • Driver impedance, Ohms: 16
  • Effective Frequency Range, Hz (BSEN60268-5): 65-19.5k
  • S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 86
  • S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 101
  • Dispersion at 1k/2k Hz, Degrees: 180/160

Environmental

  • IP-Rating: n/a
  • Max/Min Amb Temp: -10°C/+55°C
  • Relative Humidity: ≤65%

Mechanical

  • Dimensions, front and depth, mm: 195.5 x 206.74
  • Net Weight, Kg: 2.2
  • Colour (Unless Specified): White, RAL9016
  • Material: Plastic Baffle ABS with UV inhibitors
  • Mounting: Rotary compression clamps
  • Cut-out, mm: Ø168

---------------------------------------------------------------------------

CCS6

Electrical

  • Rated power, Watts: 60
  • Driver impedance, Ohms: 16
  • Effective Frequency Range, Hz (BSEN60268-5): 70-20k
  • S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 88
  • S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 104
  • Dispersion at 1k/2k Hz, Degrees: 180/160

Environmental

  • IP-Rating: n/a
  • Max/Min Amb Temp: -10°C/+55°C
  • Relative Humidity: ≤65%

Mechanical

  • Dimensions, front and depth, mm: 263 x 214
  • Net Weight, Kg: 3.5
  • Colour (Unless Specified): White, RAL9016
  • Material: Plastic Baffle ABS with UV inhibitors
  • Mounting: Rotary compression clamps
  • Cut-out, mm: Ø230

---------------------------------------------------------------------------

CCS6/T

Electrical

  • Rated power, Watts: 60
  • Tappings 100 volt line, Watts: 60/30/15/7.5
  • Transformer Impedance, Ohms, 100V: 167/333/667/1.32k
  • Tappings 70.7 volt line, Watts: 30/15/7.5/3.75
  • Driver impedance, Ohms: 16
  • Effective Frequency Range, Hz (BSEN60268-5): 70-20k
  • S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 88
  • S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 104
  • Dispersion at 1k/2k Hz, Degrees: 180/160

Environmental

  • IP-Rating: n/a
  • Max/Min Amb Temp: -10°C/+55°C
  • Relative Humidity: ≤65%

Mechanical

  • Dimensions, front and depth, mm: 263 x 214
  • Net Weight, Kg: 3.5
  • Colour (Unless Specified): White, RAL9016
  • Material: Plastic Baffle ABS with UV inhibitors
  • Mounting: Rotary compression clamps
  • Cut-out, mm: Ø230






Rated power, Watts: 30
Driver impedance, Ohms: 16
Effective Frequency Range, Hz (BSEN60268-5): 65-19.5k
S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 86
S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 101
Dispersion at 1k/2k Hz, Degrees: 180/160

IP-Rating: n/a
Max/Min Amb Temp: -10°C/+55°C
Relative Humidity:
≤65%

Dimensions, front and depth, mm: 195.5 x 206.74
Net Weight, Kg: 2.2
Colour (Unless Specified): White, RAL9016
Material: Plastic Baffle ABS with UV inhibitors
Mounting: Rotary compression clamps
Cut-out, mm: Ø168

Electrical

Rated power, Watts: 30
Tappings 100 volt line, Watts: 30/15/7.5/3.75
Transformer Impedance, Ohms, 100V: 330/660/1.32k/2.64k
Tappings 70.7 volt line, Watts: 15/7.5/3.75/1.875
Driver impedance, Ohms: 16
Effective Frequency Range, Hz (BSEN60268-5):
65-19.5k
S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 86
S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 101
Dispersion at 1k/2k Hz, Degrees: 180/160

IP-Rating: n/a
Max/Min Amb Temp: -10°C/+55°C
Relative Humidity:
≤65%

Dimensions, front and depth, mm: 195.5 x 206.74
Net Weight, Kg: 2.2
Colour (Unless Specified): White, RAL9016
Material: Plastic Baffle ABS with UV inhibitors
Mounting: Rotary compression clamps
Cut-out, mm: Ø168

Electrical

Rated power, Watts: 60
Driver impedance, Ohms: 16
Effective Frequency Range, Hz (BSEN60268-5): 70-20k
S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 88
S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 104
Dispersion at 1k/2k Hz, Degrees: 180/160

IP-Rating: n/a
Max/Min Amb Temp: -10°C/+55°C
Relative Humidity:
≤65%

Mechanical

Dimensions, front and depth, mm: 263 x 214
Net Weight, Kg: 3.5
Colour (Unless Specified): White, RAL9016
Material: Plastic Baffle ABS with UV inhibitors
Mounting: Rotary compression clamps
Cut-out, mm: Ø230

Rated power, Watts: 60
Tappings 100 volt line, Watts: 60/30/15/7.5
Transformer Impedance, Ohms, 100V: 167/333/667/1.32k
Tappings 70.7 volt line, Watts: 30/15/7.5/3.75
Driver impedance, Ohms: 16
Effective Frequency Range, Hz (BSEN60268-5): 70-20k
S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 88
S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 104
Dispersion at 1k/2k Hz, Degrees: 180/160

IP-Rating: n/a
Max/Min Amb Temp: -10°C/+55°C
Relative Humidity:
≤65%

Dimensions, front and depth, mm: 263 x 214
Net Weight, Kg: 3.5
Colour (Unless Specified): White, RAL9016
Material: Plastic Baffle ABS with UV inhibitors
Mounting: Rotary compression clamps
Cut-out, mm: Ø230

APPLICATIONS

Case studies

Supermarket PA System

Discover our Public Address and Voice Alarm solutions for the corporate and retail sector.

Stores

Discover our Public Address and Voice Alarm solutions for the corporate and retail sector.

Underground Parking Lot and Floors

Discover our Public Address and Voice Alarm solutions for the corporate and retail sector.

DOCUMENT DOWNLOADS

Type
Filename
Catalogue
Type: [PDF]
Filename: Loudspeakers_Catalogue
Download:
Datasheet
Type: [PDF]
Filename: CCS6/T_Datasheet
Download:
Type: [PDF]
Filename: CCS4/T_Datasheet
Download:
Type: [PDF]
Filename: CCS4_Datasheet
Download:
Type: [PDF]
Filename: CCS6_Datasheet
Download:

Type
Filename
Catalogue
Type: [PDF]
Filename: Catalogue_Haut-parleurs
Download:
Datasheet
Type: [PDF]
Filename: CCS4/T_Fiche produit
Download:
Type: [PDF]
Filename: CCS6_Fiche produit
Download:
Type: [PDF]
Filename: CCS6/T_Fiche produit
Download:
Type: [PDF]
Filename: CCS4_Fiche produit
Download:

Type
Filename
Catalogue
Type: [PDF]
Filename: Lautsprecher_katalog
Download:
Datasheet
Type: [PDF]
Filename: CCS6/T_Datenblatt
Download:
Type: [PDF]
Filename: CCS4_Datenblatt
Download:
Type: [PDF]
Filename: CCS4/T_Datenblatt
Download:
Type: [PDF]
Filename: CCS6_Datenblatt
Download:

Type
Filename
Catalogue
Type: [PDF]
Filename: Katalog Zvučnika
Download:

Compare models

Model name
Power Rating Watts
Effective Frequency Range Hz
S.P.L. @ 1 m, 1 Watt dB
S.P.L. @ 1 m, Full Power dB
Cut Out mm
Model name: CCS4
Power Rating Watts: 30W / 16Ω
Effective Frequency Range Hz: 65 - 19.500
S.P.L. @ 1 m, 1 Watt dB: 86
S.P.L. @ 1 m, Full Power dB: 101
Cut Out mm: 168
Model name: CCS4/T
Power Rating Watts: 30W / 100V
Effective Frequency Range Hz: 65 - 19.500
S.P.L. @ 1 m, 1 Watt dB: 86
S.P.L. @ 1 m, Full Power dB: 101
Cut Out mm: 168
Model name: CCS6
Power Rating Watts: 60W / 16Ω
Effective Frequency Range Hz: 70 - 20.000
S.P.L. @ 1 m, 1 Watt dB: 88
S.P.L. @ 1 m, Full Power dB: 104
Cut Out mm: 230
Model name: CCS6/T
Power Rating Watts: 60W / 100V
Effective Frequency Range Hz: 70 - 20.000
S.P.L. @ 1 m, 1 Watt dB: 88
S.P.L. @ 1 m, Full Power dB: 104
Cut Out mm: 230
