DESCRIPTION

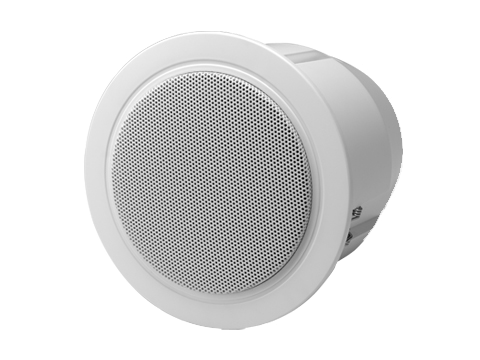

The BCL3/T is a bathroom waterproof ceiling speaker with the added benefit its backbone.

The material is UL94V0 grade fire retardant plastic, anodized aluminum mesh and coating. The mounting is done via stainless steel springs clips.

FEATURES

Model:

• BCL3/T

SPECIFICATIONS

BCL3/T

Electrical

• Rated power, Watts: 6
• Tappings 100 volt line, Watts: 6/3/1.5
• Transformer Impedance, Ohms, 100V: 1.67k/3.33k/6.67k
• Tappings 70.7 volt line, Watts: 3/1.5/0.75
• Driver impedance, Ohms: 8
• Effective frequency range, Hz (BSEN60268-5): 220-18.5K
• S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 89
• S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 96
• Dispersion at 1k Hz, Degrees: 140

Environmental

• IP-Rating: 55
• Max/Min Amb Temp: -25°C/+70°C
• Relative Humidity: ≤95%

Mechanical

• Dimensions, mm: Height 128.5, Ø139
• Net Weight, Kg: 0.78
• Colour (Unless Specified): White, RAL9016
• Material: Aluminium
• Mounting: Stainless steel springs clips
• Cut-out, mm: Ø115

APPLICATIONS

• Schools
• Stores
• Shopping malls
• Hotels
• Train stations
• Universities
• Industrial sites
