Horn Speakers

PH Series

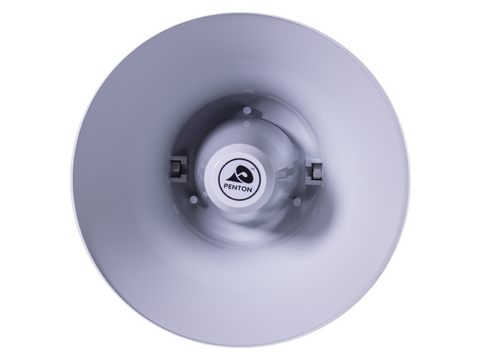

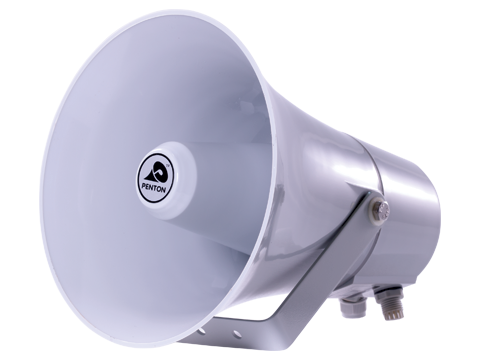

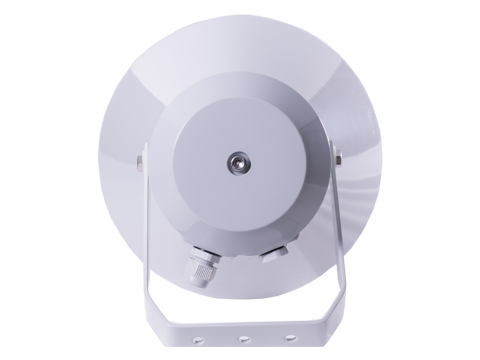

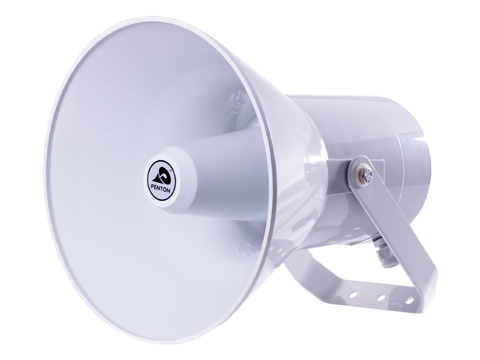

Plastic Weatherproof Horn Speakers

  • Simple installation
  • Made of a UV-resistant reinforced ABS plastic
  • Specifically designed for use in humid and saline environment
  • Water and dust resistant, IP56
 More information >
Plastic Weatherproof Horn Speakers
Plastic Weatherproof Horn Speakers
Plastic Weatherproof Horn Speakers
Plastic Weatherproof Horn Speakers
Plastic Weatherproof Horn Speakers
Plastic Weatherproof Horn Speakers

DESCRIPTION

The PH are compact, weatherproof horn loudspeakers, especially for a high sound reinforcement designed. It is made of a UV-resistant, reinforced ABS plastic and features an epoxy-coated stainless steel U-bracket.

This pressure chamber loudspeaker is designed by the high performance combined with a high sound pressure especially for the reproduction of voice announcements or signal warnings.

PH Series is resistant to saline air, most non-corrosive substances and many chemicals. Therefore, it can be used also in marine or industrial applications and is ideal for indoor and outdoor use.

FEATURES

Models:

  • PH10/T
  • PH20/T
  • PH30/T

SPECIFICATIONS

PH10/T

Electrical

  • Rated power, Watts: 10
  • Tappings 100 volt line, Watts: 10/5/2.5/1.25
  • Transformer Impedance, Ohms, 100V: 1k/2k/4k/8k
  • Tappings 70.7 volt line, Watts: 5/2.5/1.25/0.625
  • Driver impedance, Ohms: 20
  • Effective frequency range, Hz (BSEN60268-5): 400-8K
  • S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 97
  • S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 107
  • Dispersion at 1k/2k Hz, Degrees: 180/110

Environmental

  • IP-Rating: 56
  • Max/Min Amb Temp: -50°C/+70°C
  • Relative Humidity: n/a

Mechanical

  • Dimensions, front and depth, mm: Ø138 x 200
  • Net Weight, Kgs: 1.30
  • Colour (Unless Specified): Grey, RAL7035
  • Material: ABS plastic housing with UV inhibitors
  • Mounting: Stainless Steel U bracket

------------------------------------------------------------------

PH20/T

Electrical

  • Rated power, Watts: 20
  • Tappings 100 volt line, Watts: 20/10/5/2.5
  • Transformer Impedance, Ohms, 100V: 0.5k/1k/2k/4k
  • Tappings 70.7 volt line, Watts: 10/5/2.5/1.25
  • Driver impedance, Ohms: 20
  • Effective frequency range, Hz (BSEN60268-5): 250-8K
  • S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 101
  • S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 114
  • Dispersion at 1k/2k Hz, Degrees: 130/70

Environmental

  • IP-Rating: 56
  • Max/Min Amb Temp: -50°C/+70°C
  • Relative Humidity: n/a

Mechanical

  • Dimensions, front and depth, mm: Ø203 x 254
  • Net Weight, Kgs: 1.70
  • Colour (Unless Specified): Grey, RAL7035
  • Material: ABS plastic housing with UV inhibitors
  • Mounting: Stainless Steel U bracket

------------------------------------------------------------------

PH30/T

Electrical

  • Rated power, Watts: 30
  • Tappings 100 volt line, Watts: 30/15/7.5/3.75
  • Transformer Impedance, Ohms, 100V: 0.33k/0.66k/1.32k/2.64k
  • Tappings 70.7 volt line, Watts: 15/7.5/3.75/1.875
  • Driver impedance, Ohms: 20
  • Effective frequency range, Hz (BSEN60268-5): 330-8K
  • S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 103
  • S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 118
  • Dispersion at 1k/2k Hz, Degrees: 110/70

Environmental

  • IP-Rating: 66
  • Max/Min Amb Temp: -50°C/+70°C
  • Relative Humidity: n/a

Mechanical

  • Dimensions, front and depth, mm: Ø238 x 287
  • Net Weight, Kgs: 2.30
  • Colour (Unless Specified): Grey, RAL7035
  • Material: ABS plastic housing with UV inhibitors
  • Mounting: Stainless Steel U bracket





Rated power, Watts: 10
Tappings 100 volt line, Watts: 10/5/2.5/1.25
Transformer Impedance, Ohms, 100V: 1k/2k/4k/8k
Tappings 70.7 volt line, Watts: 5/2.5/1.25/0.625
Driver impedance, Ohms: 20
Effective frequency range, Hz (BSEN60268-5): 400-8K
S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 97
S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 107
Dispersion at 1k/2k Hz, Degrees: 180/110

IP-Rating: 56
Max/Min Amb Temp: -50°C/+70°C
Relative Humidity: n/a

Dimensions, front and depth, mm: Ø138 x 200
Net Weight, Kgs: 1.30
Colour (Unless Specified): Grey, RAL7035
Material: ABS plastic housing with UV inhibitors
Mounting: Stainless Steel U bracket

Rated power, Watts: 20
Tappings 100 volt line, Watts: 20/10/5/2.5
Transformer Impedance, Ohms, 100V: 0.5k/1k/2k/4k
Tappings 70.7 volt line, Watts: 10/5/2.5/1.25
Driver impedance, Ohms: 20
Effective frequency range, Hz (BSEN60268-5): 250-8K
S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 101
S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 114
Dispersion at 1k/2k Hz, Degrees: 130/70

IP-Rating: 56
Max/Min Amb Temp: -50°C/+70°C
Relative Humidity: n/a

Dimensions, front and depth, mm: Ø203 x 254
Net Weight, Kgs: 1.70
Colour (Unless Specified): Grey, RAL7035
Material: ABS plastic housing with UV inhibitors
Mounting: Stainless Steel U bracket

Rated power, Watts: 30
Tappings 100 volt line, Watts: 30/15/7.5/3.75
Transformer Impedance, Ohms, 100V: 0.33k/0.66k/1.32k/2.64k
Tappings 70.7 volt line, Watts: 15/7.5/3.75/1.875
Driver impedance, Ohms: 20
Effective frequency range, Hz (BSEN60268-5): 330-8K
S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 103
S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 118
Dispersion at 1k/2k Hz, Degrees: 110/70

IP-Rating: 66
Max/Min Amb Temp: -50°C/+70°C
Relative Humidity: n/a

Dimensions, front and depth, mm: Ø238 x 287
Net Weight, Kgs: 2.30
Colour (Unless Specified): Grey, RAL7035
Material: ABS plastic housing with UV inhibitors
Mounting: Stainless Steel U bracket

APPLICATIONS

Case studies

Supermarket PA System

Discover our Public Address and Voice Alarm solutions for the corporate and retail sector.

Stores

Discover our Public Address and Voice Alarm solutions for the corporate and retail sector.

Underground Parking Lot and Floors

Discover our Public Address and Voice Alarm solutions for the corporate and retail sector.

DOCUMENT DOWNLOADS

Type
Filename
Catalogue
Type: [PDF]
Filename: Loudspeakers_Catalogue
Download:
Datasheet
Type: [PDF]
Filename: PH30/T_Datasheet
Download:
Type: [PDF]
Filename: PH10/T_Datasheet
Download:
Type: [PDF]
Filename: PH20/T_Datasheet
Download:

Type
Filename
Catalogue
Type: [PDF]
Filename: Catalogue_Haut-parleurs
Download:
Datasheet
Type: [PDF]
Filename: PH30/T_Fiche produit
Download:
Type: [PDF]
Filename: PH10/T_Fiche produit
Download:
Type: [PDF]
Filename: PH20/T_Fiche produit
Download:

Type
Filename
Catalogue
Type: [PDF]
Filename: Lautsprecher_katalog
Download:
Datasheet
Type: [PDF]
Filename: PH30/T_Datenblatt
Download:
Type: [PDF]
Filename: PH20/T_Datenblatt
Download:
Type: [PDF]
Filename: PH10/T_Datenblatt
Download:

Type
Filename
Catalogue
Type: [PDF]
Filename: Katalog Zvučnika
Download:

Compare models

Model name
Power Rating Watts
Effective Frequency Range Hz
S.P.L. @ 1 m, 1 Watt dB
S.P.L. @ 1 m, Full Power dB
Model name: PH10/T
Power Rating Watts: 10W / 100V
Effective Frequency Range Hz: 400 - 8.000
S.P.L. @ 1 m, 1 Watt dB: 97
S.P.L. @ 1 m, Full Power dB: 107
Model name: PH20/T
Power Rating Watts: 20W / 100V
Effective Frequency Range Hz: 250 - 8.000
S.P.L. @ 1 m, 1 Watt dB: 101
S.P.L. @ 1 m, Full Power dB: 114
Model name: PH30/T
Power Rating Watts: 30W / 100V
Effective Frequency Range Hz: 330 - 8.000
S.P.L. @ 1 m, 1 Watt dB: 103
S.P.L. @ 1 m, Full Power dB: 118
