Horn Speakers

APH Series

Compact Horn Speakers

  • High acoustical performance
  • Made of a UV-resistant reinforced ABS plastic
  • Specifically designed for use in humid and saline environment
  • Water and dust resistant, IP66
 More information >
Compact Horn Speakers
Compact Horn Speakers
Compact Horn Speakers
Compact Horn Speakers
Compact Horn Speakers
Compact Horn Speakers

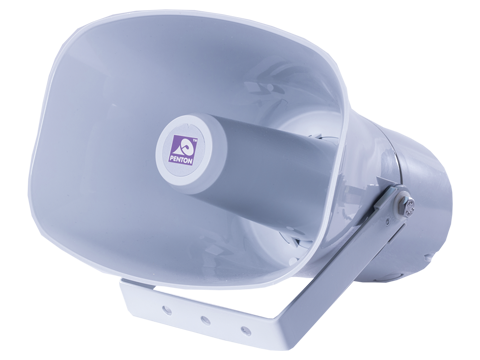

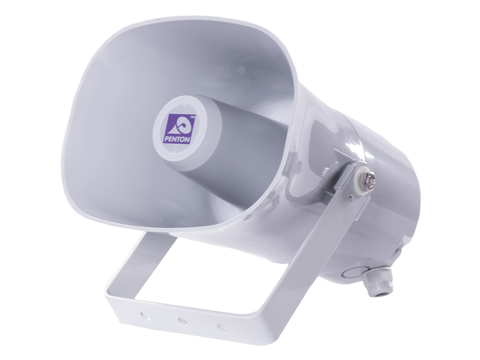

DESCRIPTION

The APH compact horn speakers have been designed for high quality sound reinforcement. Manufactured in a strengthened ABS molded compound with UVL (ultra violet light) protection and supplied with a high grade stainless steelepoxy coated U- bracket.

Offering clarity of speech and high efficiency, these horns are suitable for communications or signal warnings. Being non-corrosive and resistant to salt laden air, they are suitable for use indoor and outdoor. In addition they are also ideal for marine and industrial applications as they are unaffected by most chemicals.

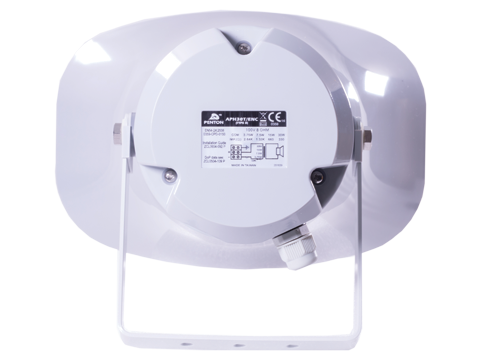

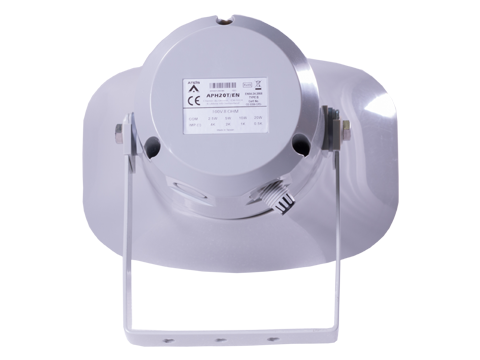

The 20 Watt and 30 Watt versions of APH range of plastic horns are available as standard, with 1 x PG9 and 1 x PG9 Blanking Plug cable gland entries allowing the installer to loop in loop out the cabling thus avoiding the need for an additional junction box.

  • ENC models are compliant to the EN54-24 standard for Voice Alarm systems, it includes a capacitor for DC line monitoring.



    • FEATURES

    EN54-24 Certified Models:

    • APH10T/ENC
    • APH20T/ENC
    • APH30T/ENC

    Certification:

    • EN54-24:2008: Fire detection and fire alarm system - Certificat N° 0905-CPR-201108

    SPECIFICATIONS

    APH10T/ENC

    Electrical

    • Rated power, Watts: 10
    • Tappings 100 volt line, Watts: 10/5/2.5/1.25
    • Transformer Impedance, Ohms, 100V: 1k/2k/4k/8k
    • Tappings 70.7 volt line, Watts: 5/2.5/1.25/0.625
    • Driver impedance, Ohms: 8
    • Effective frequency range, Hz (BSEN60268-5): 340-16K
    • S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 105
    • S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 115
    • Dispersion at 1k/2k Hz, Degrees: 139/74 (H) 173/96 (V)

    Environmental

    • IP-Rating: 66
    • Max/Min Amb Temp: -25°C/+70°C
    • Relative Humidity: ≤95%

    Mechanical

    • Dimensions, WxHxD, mm: 172x131x227
    • Net Weight, Kgs: 1.60
    • Colour (Unless Specified): Grey, RAL7035
    • Material: UL-94V0 Plastic, UV resistant
    • Mounting: Stainless Steel U bracket
    • Safety: Ceramic Block, Thermal Fuse, Capacitor for DC line monitoring

    ------------------------------------------------------------------

    APH20T/ENC

    Electrical

    • Rated power, Watts: 20
    • Tappings 100 volt line, Watts: 20/10/5/2.5
    • Transformer Impedance, Ohms, 100V: 500/1k/2k/4k
    • Tappings 70.7 volt line, Watts: 10/2.5/1.25
    • Driver impedance, Ohms: 8
    • Effective frequency range, Hz (BSEN60268-5): 310-16K
    • S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 104
    • S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 117
    • Dispersion at 1k/2k Hz, Degrees: 111/62 (H) 148/84 (V)

    Environmental

    • IP-Rating: 66
    • Max/Min Amb Temp: -25°C/+70°C
    • Relative Humidity: ≤95%

    Mechanical

    • Dimensions, WxHxD, mm: 219x157x259
    • Net Weight, Kgs: 1.70
    • Colour (Unless Specified): Grey, RAL7035
    • Material: UL-94V0 Plastic, UV resistant
    • Mounting: Stainless Steel U bracket
    • Safety: Ceramic Block, Thermal Fuse, Capacitor for DC line monitoring

    ------------------------------------------------------------------

    APH30T/ENC

    Electrical

    • Rated power, Watts: 30
    • Tappings 100 volt line, Watts: 30/15/7.5/3.75
    • Transformer Impedance, Ohms, 100V: 330/660/1.32k/2.64k
    • Tappings 70.7 volt line, Watts: 15/7.5/3.75/1.875
    • Driver impedance, Ohms: 8
    • Effective frequency range, Hz (BSEN60268-5): 340-16K
    • S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 106
    • S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 120
    • Dispersion at 1k/2k Hz, Degrees: 105/49 (H) 142/68 (V)

    Environmental

    • IP-Rating: 66
    • Max/Min Amb Temp: -25°C/+70°C
    • Relative Humidity: ≤95%

    Mechanical

    • Dimensions, WxHxD, mm: 258x180x280
    • Net Weight, Kgs: 2.00
    • Colour (Unless Specified): Grey, RAL7035
    • Material: UL-94V0 Plastic, UV resistant
    • Mounting: Stainless Steel U bracket
    • Safety: Ceramic Block, Thermal Fuse, Capacitor for DC line monitoring


    Rated power, Watts: 10
    Tappings 100 volt line, Watts: 10/5/2.5/1.25
    Transformer Impedance, Ohms, 100V: 1k/2k/4k/8k
    Tappings 70.7 volt line, Watts: 5/2.5/1.25/0.625
    Driver impedance, Ohms: 8
    Effective frequency range, Hz (BSEN60268-5): 340-16K
    S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 105
    S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 115
    Dispersion at 1k/2k Hz, Degrees: 139/74 (H) 173/96 (V)

    IP-Rating: 66
    Max/Min Amb Temp: -25°C/+70°C
    Relative Humidity:
    ≤95%

    Dimensions, WxHxD, mm: 172x131x227
    Net Weight, Kgs: 1.60
    Colour (Unless Specified): Grey, RAL7035
    Material: UL-94V0 Plastic, UV resistant
    Mounting: Stainless Steel U bracket
    Safety: Ceramic Block, Thermal Fuse, Capacitor for DC line monitoring

    Rated power, Watts: 20
    Tappings 100 volt line, Watts: 20/10/5/2.5
    Transformer Impedance, Ohms, 100V: 500/1k/2k/4k
    Tappings 70.7 volt line, Watts: 10/2.5/1.25
    Driver impedance, Ohms: 8
    Effective frequency range, Hz (BSEN60268-5): 310-16K
    S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 104
    S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 117
    Dispersion at 1k/2k Hz, Degrees: 111/62 (H) 148/84 (V)

    IP-Rating: 66
    Max/Min Amb Temp: -25°C/+70°C
    Relative Humidity:
    ≤95%

    Dimensions, WxHxD, mm: 219x157x259
    Net Weight, Kgs: 1.70
    Colour (Unless Specified): Grey, RAL7035
    Material: UL-94V0 Plastic, UV resistant
    Mounting: Stainless Steel U bracket
    Safety: Ceramic Block,
    Thermal Fuse, Capacitor for DC line monitoring

    Rated power, Watts: 30
    Tappings 100 volt line, Watts: 30/15/7.5/3.75
    Transformer Impedance, Ohms, 100V: 330/660/1.32k/2.64k
    Tappings 70.7 volt line, Watts: 15/7.5/3.75/1.875
    Driver impedance, Ohms: 8
    Effective frequency range, Hz (BSEN60268-5): 340-16K
    S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 106
    S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 120
    Dispersion at 1k/2k Hz, Degrees: 105/49 (H) 142/68 (V)

    IP-Rating: 66
    Max/Min Amb Temp: -25°C/+70°C
    Relative Humidity:
    ≤95%

    Dimensions, WxHxD, mm: 258x180x280
    Net Weight, Kgs: 2.00
    Colour (Unless Specified): Grey, RAL7035
    Material: UL-94V0 Plastic, UV resistant
    Mounting: Stainless Steel U bracket
    Safety: Ceramic Block,
    Thermal Fuse, Capacitor for DC line monitoring

    APPLICATIONS

    Case studies

    Supermarket PA System

    Discover our Public Address and Voice Alarm solutions for the corporate and retail sector.

    Stores

    Discover our Public Address and Voice Alarm solutions for the corporate and retail sector.

    Underground Parking Lot and Floors

    Discover our Public Address and Voice Alarm solutions for the corporate and retail sector.

    DOCUMENT DOWNLOADS

    Type
    Filename
    Catalogue
    Type: [PDF]
    Filename: Loudspeakers_Catalogue
    Download:
    Datasheet
    Type: [PDF]
    Filename: APH20T/ENC_Datasheet
    Download:
    Type: [PDF]
    Filename: APH10T/ENC_Datasheet
    Download:
    Type: [PDF]
    Filename: APH30T/ENC_Datasheet
    Download:

    Type
    Filename
    Catalogue
    Type: [PDF]
    Filename: Catalogue_Haut-parleurs
    Download:
    Datasheet
    Type: [PDF]
    Filename: APH20T/ENC_Fiche produit
    Download:
    Type: [PDF]
    Filename: APH10T/ENC_Fiche produit
    Download:
    Type: [PDF]
    Filename: APH30T/ENC_Fiche produit
    Download:

    Type
    Filename
    Catalogue
    Type: [PDF]
    Filename: Lautsprecher_katalog
    Download:
    Datasheet
    Type: [PDF]
    Filename: APH10T/ENC_Datenblatt
    Download:
    Type: [PDF]
    Filename: APH20T/ENC_Datenblatt
    Download:
    Type: [PDF]
    Filename: APH30T/ENC_Datenblatt
    Download:

    Type
    Filename
    Catalogue
    Type: [PDF]
    Filename: Katalog Zvučnika
    Download:

    Compare models

    Model name
    Power Rating Watts
    Effective Frequency Range Hz
    S.P.L. @ 1 m, 1 Watt dB
    S.P.L. @ 1 m, Full Power dB
    Compliant EN 54-24
    Model name: APH10T/ENC
    Power Rating Watts: 10W / 100V
    Effective Frequency Range Hz: 340 - 16.000
    S.P.L. @ 1 m, 1 Watt dB: 105
    S.P.L. @ 1 m, Full Power dB: 115
    Compliant EN 54-24: Yes
    Model name: APH20T/ENC
    Power Rating Watts: 20W / 100V
    Effective Frequency Range Hz: 310 - 16.000
    S.P.L. @ 1 m, 1 Watt dB: 104
    S.P.L. @ 1 m, Full Power dB: 117
    Compliant EN 54-24: Yes
    Model name: APH30T/ENC
    Power Rating Watts: 30W / 100V
    Effective Frequency Range Hz: 340 - 16.000
    S.P.L. @ 1 m, 1 Watt dB: 106
    S.P.L. @ 1 m, Full Power dB: 120
    Compliant EN 54-24: Yes
