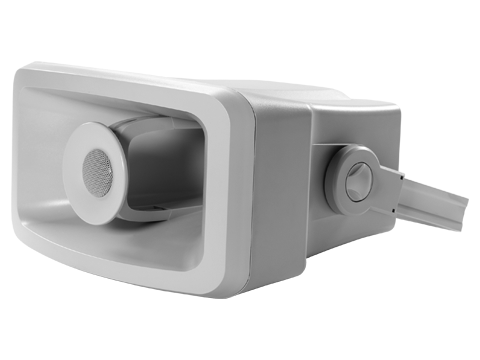

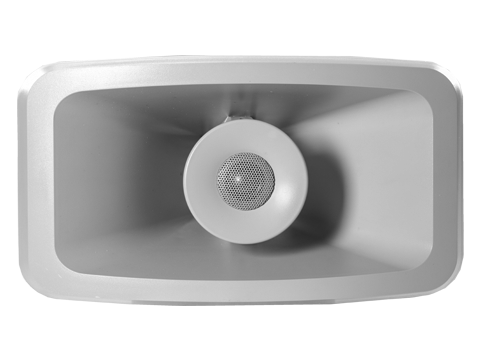

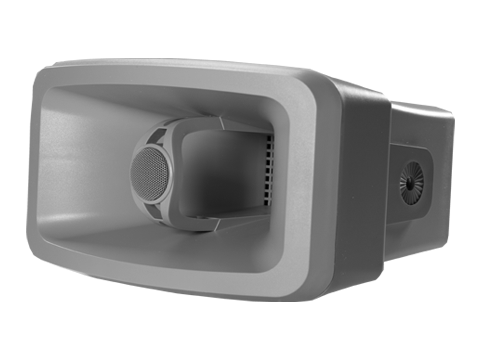

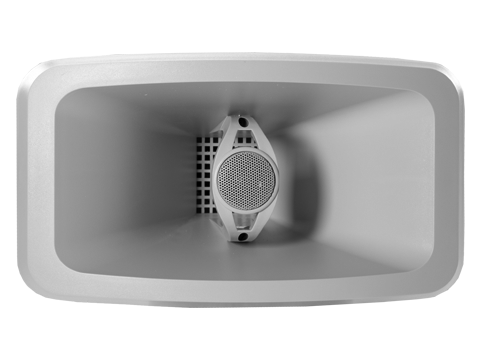

DESCRIPTION

The MPS Music and Sound Projector is a completely weatherized unit suitable for use in harsh outdoor environments. MPS are two-way music Projectors with a high-frequency unit, consisting of ABS plastic.

The rectangular housing is kept very compact and the power through the transformer on a high level.

The MPS Series is perfect for areas where besides good voice quality also a very good music reproduction is important and a high sound pressure is required, such as outdoor pools, sports arenas, leisure centers or cruise ships, etc.

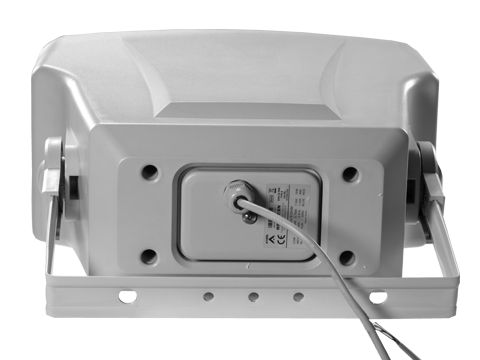

The speakers cabinets come with a stainless steel bar (A304/A2). All screws consist of the same gland for secure connection cable feedthrough.

• ENC models are compliant to the EN54-24 standard for Voice Alarm systems, it includes a capacitor for DC line Monitoring.


FEATURES

Models:

• MPS15/T
• MPS30/T

EN54-24 Certified Model:

• MPS15T/ENC

Certification:

• EN54-24:2008: Fire detection and fire alarm system - Certificat N° 0905-CPR-201108

SPECIFICATIONS

MPS15/T

Electrical

• Rated power, Watts: 15
• Tappings 100 volt line, Watts: 15/7.5/3.75/1.875
• Transformer Impedance, Ohms, 100V: 0.667k/1.33k/2.66k/5.32k
• Tappings 70.7 volt line, Watts: 7.5/3.75/1.875/0.9375
• Driver impedance, Ohms: 8
• Effective frequency range, Hz (BSEN60268-5): 70-16.5K
• S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 97
• S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 109
• Dispersion at 1k/2k Hz, Degrees: 50/30 (H) 90/90 (V)

Environmental

• IP-Rating: 33
• Max/Min Amb Temp: -25°C/+70°C
• Relative Humidity: ≤95%

Mechanical

• Dimensions, front and depth, mm: 329 x 181 x 297
• Net Weight, Kgs: 3.20
• Colour (Unless Specified): Grey, RAL7035
• Material: ABS Plastic housing with UV protection
• Mounting: Stainless Steel U-bracket

----------------------------------------------------------------------------

MPS15T/ENC

Electrical

• Rated power, Watts: 15
• Tappings 100 volt line, Watts: 15/7.5/3.75/1.875
• Transformer Impedance, Ohms, 100V: 0.667k/1.33k/2.66k/5.32k
• Tappings 70.7 volt line, Watts: 7.5/3.75/1.875/0.9375
• Driver impedance, Ohms: 8
• Effective frequency range, Hz (BSEN60268-5): 70-16.5K
• S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 97
• S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 109
• Dispersion at 1k/2k Hz, Degrees: 91/52 (H) 151/102 (V)

Environmental

• IP-Rating: 33
• Max/Min Amb Temp: -25°C/+70°C
• Relative Humidity: ≤95%

Mechanical

• Dimensions, front and depth, mm: 334 x 181 x 295
• Net Weight, Kgs: 3.20
• Colour (Unless Specified): Grey, RAL7035
• Material: Low smoke zero Halogen, UL-94V0 plastic housing with UV inhibitors
• Mounting: Stainless Steel U-bracket
• Safety: Ceramic Block, Thermal Fuse, Capacitor for DC line monitoring


----------------------------------------------------------------------------

MPS30/T

Electrical

• Rated power, Watts: 30
• Tappings 100 volt line, Watts: 30/15/7.5/3.75
• Transformer Impedance, Ohms, 100V: 0.333k/0.667k/1.33k/2.66k
• Tappings 70.7 volt line, Watts: 15/7.5/3.75/1.875
• Driver impedance, Ohms: 8
• Effective frequency range, Hz (BSEN60268-5): 70-16.5K
• S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 97
• S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 112
• Dispersion at 1k/2k Hz, Degrees: 50/30 (H) 90/90 (V)

Environmental

• IP-Rating: 65
• Max/Min Amb Temp: -25°C/+70°C
• Relative Humidity: ≤95%

Mechanical

• Dimensions, front and depth, mm: 329 x 181 x 297
• Net Weight, Kgs: 3.60
• Colour (Unless Specified): Grey, RAL7035
• Material: ABS Plastic housing with UV protection
• Mounting: Stainless Steel U-bracket

APPLICATIONS

• Schools
• Stores
• Shopping malls
• Hotels
• Train stations
• Universities
• Industrial sites
