DESCRIPTION

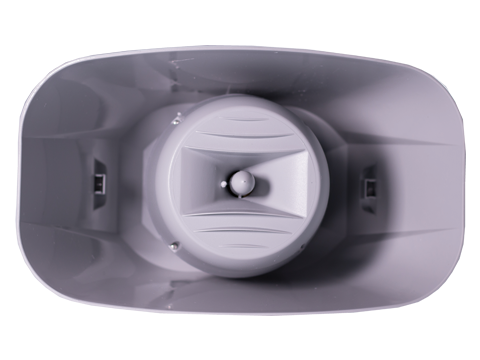

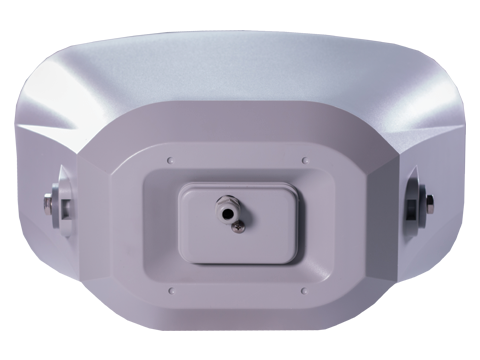

The MSH Series is a weatherproof plastic music horn loudspeaker manufactured from an ABS moulded, low smoke zero Halogen UL-94V0 Plastic with UV inhibitors. Being non-corrosive and resistant to salt laden air makes it is suitable for both indoor and outdoor use. It includes a mounting bracket manufactured in stainless steel.

It combines a re-entrant horn with a high frequency driver. The combination of both delivers a controlled coverage pattern with clear speech and quality background music reproduction.

Supplied complete with cable gland, this unit is ideal grey, RAL7035.

Its rugged construction and quick and easy installation make it ideally suited for such places as outdoor swimming pools, sports stadiums, leisure centres and railway stations.

• EN models are compliant to the EN54-24 standard for Voice Alarm systems.
• ENC models are compliant to the EN54-24 standard for Voice Alarm systems, it includes a capacitor for DC line monitoring.

FEATURES

Models:

• MSH30/T
• MSH60/T

EN54-24 Certified Models:

• MSH30T/EN
• MSH30T/ENC

Certification:

• EN54-24:2008: Fire detection and fire alarm system - Certificat N° 0905-CPR-201108

SPECIFICATIONS

MSH30/T

Electrical

• Rated power, Watts: 30
• Tappings 100 volt line, Watts: 30/15/7.5/3.75
• Transformer Impedance, Ohms, 100V: 0.333k/0.667k/1.33k/2.66k
• Tappings 70.7 volt line, Watts: 15/7.5/3.75/1.875
• Driver impedance, Ohms: 8
• Effective frequency range, Hz (BSEN60268-5): 70-16.5K
• S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 99
• S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 114
• Dispersion at 1k/2k Hz, Degrees: 70/120 (H) 110/110 (V)

Environmental

• IP-Rating: 66
• Max/Min Amb Temp: -25°C/+70°C
• Relative Humidity: ≤95%

Mechanical

• Dimensions, front and depth, mm: 442 x 260 x 287.5
• Net Weight, Kgs: 5.50
• Colour (Unless Specified): Grey, RAL7035
• Material: ABS Plastic with UV inhibitors
• Mounting: Aluminium U bracket

------------------------------------------------------------------

MSH30T/EN

Electrical

• Rated power, Watts: 30
• Tappings 100 volt line, Watts: 30/15/7.5/3.75
• Transformer Impedance, Ohms, 100V: 0.333k/0.666k/1.3k/2.6k
• Tappings 70.7 volt line, Watts: 15/7.5/3.75/1.875
• Driver impedance, Ohms: 8
• Effective frequency range, Hz (BSEN60268-5): 70-16.5K
• S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 100
• S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 115
• Dispersion at 1k/2k Hz, Degrees: 56/98 (H) 96/52 (V)

Environmental

• IP-Rating: 66
• Max/Min Amb Temp: -25°C/+70°C
• Relative Humidity: ≤95%

Mechanical

• Dimensions, front and depth, mm: 442 x 260 x 287.5
• Net Weight, Kgs: 5.50
• Colour (Unless Specified): Grey, RAL7035
• Material: ABS Plastic with UV inhibitors
• Mounting: Stainless Steel U bracket
• Safety: Ceramic Block, Thermal Fuse


------------------------------------------------------------------

MSH30T/ENC

Electrical

• Rated power, Watts: 30
• Tappings 100 volt line, Watts: 30/15/7.5/3.75
• Transformer Impedance, Ohms, 100V: 0.333k/0.666k/1.3k/2.6k
• Tappings 70.7 volt line, Watts: 15/7.5/3.75/1.875
• Driver impedance, Ohms: 8
• S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 100
• S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 115
• Dispersion at 1k/2k Hz, Degrees: 56/98 (H) 96/52 (V)

Environmental

• IP-Rating: 66
• Max/Min Amb Temp: -25°C/+70°C
• Relative Humidity: ≤95%

Mechanical

• Dimensions, front and depth, mm: 442 x 260 x 287.5
• Net Weight, Kgs: 5.50
• Colour (Unless Specified): Grey, RAL7035
• Material: ABS Plastic with UV inhibitors
• Mounting: Stainless Steel U bracket
• Safety: Ceramic Block, Thermal Fuse, Capacitor


------------------------------------------------------------------

MSH60/T

Electrical

• Rated power, Watts: 60
• Tappings 100 volt line, Watts: 60/30/15/7.5
• Transformer Impedance, Ohms, 100V: 0.167k/0.333k/0.667k/1.33k
• Tappings 70.7 volt line, Watts: 30/15/7.5/3.75
• Driver impedance, Ohms: 8
• Effective frequency range, Hz (BSEN60268-5): 60-16.5K
• S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 99
• S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 117
• Dispersion at 1k/2k Hz, Degrees: 100/120 (H) 60/120 (V)

Environmental

• IP-Rating: 66
• Max/Min Amb Temp: -25°C/+70°C
• Relative Humidity: ≤95%

Mechanical

• Dimensions, front and depth, mm: 440 x 270 x 290
• Net Weight, Kgs: 5.60
• Colour (Unless Specified): Grey, RAL7035
• Material: ABS Plastic with UV inhibitors
• Mounting: Aluminium U bracket

APPLICATIONS

• Schools
• Stores
• Shopping malls
• Hotels
• Train stations
• Universities
• Industrial sites
