Wall Mounted Loudspeakers

PWC Series

Plastic Wall Mounted Speakers

  • Compact design
  • Economical
  • Made of a UV-resistant reinforced ABS plastic
More information >

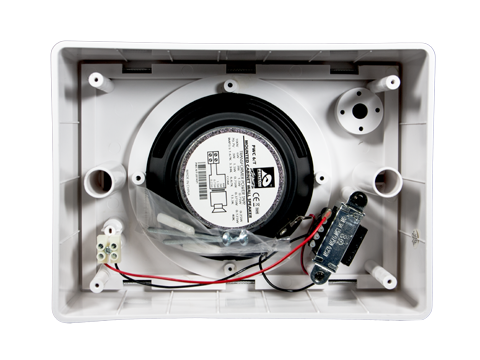

Plastic Wall Mounted Speakers
Plastic Wall Mounted Speakers
Plastic Wall Mounted Speakers

DESCRIPTION

Our range of PWC wall mounted speakers is a real innovation in design and performance. These exceptional loudspeakers are both stylish and elegant and offer a cost effective and robust alternative to the conventional wooden cabinet loudspeaker.

PWC are dual coned loudspeakers complete with 100 Volt line transformer, ideally suited for high quality speech and background music. The bass response has been extended to give warmth and depth to both music and speech whilst still maintaining a high sensitivity.

Designed to make installation quick and easy this makes them ideally suited for applications that require style as well as high performance such as shops, schools, restaurants, hotels, public houses, offices etc.


FEATURES

Models:

    • PWC6/T

    EN54-24 certified models:

      • PWC6T/EN
      • PWC6T/ENC

      Certification:

      • EN54-24:2008: Fire detection and fire alarm system - Certificat N° 0905-CPR-201109

      SPECIFICATIONS

      PWC6/T

      Electrical

      • Rated power, Watts: 6
      • Tappings 100 volt line, Watts: 6/3/1.5/0.75/0.25
      • Transformer Impedance, Ohms, 100V: 1.67k/3.33k/6.66k/13.3k/39.9k
      • Tappings 70.7 volt line, Watts: 3/1.5/0.75/0.375/0.125
      • Driver impedance, Ohms: 8
      • Effective frequency range, Hz (BSEN60268-5): 220-18.5K
      • S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 93
      • S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 100
      • Dispersion at 1k/2k Hz, Degrees: 180/110

      Environmental

      • IP-Rating: 21
      • Max/Min Amb Temp:  -25°C/+70°C
      • Relative Humidity: n/a

      Mechanical

      • Dimensions, front and depth, mm: 233 x 171 x 75
      • Net Weight, Kgs: 1.04
      • Colour (Unless Specified): White, RAL9016
      • Material: ABS Plastic with UV inhibitors
      • Mounting: Screws

      ----------------------------------------------------------------------

      PWC6T/EN

      Electrical

      • Rated power, Watts: 6
      • Tappings 100 volt line, Watts: 6/3/1.5/0.75/0.25
      • Transformer Impedance, Ohms, 100V: 1.67k/3.33k/6.66k/13.3k/40k
      • Tappings 70.7 volt line, Watts: 3/1.5/0.75/0.375/0.125
      • Driver impedance, Ohms: 8
      • Effective frequency range, Hz (BSEN60268-5): 220-18.5K
      • S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 93
      • S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 100
      • Dispersion at 1k/2k Hz, Degrees: 167/89 (H) 115/104 (V)

      Environmental

      • IP-Rating: 21
      • Max/Min Amb Temp: -10°C/+55°C
      • Relative Humidity: ≤95%

      Mechanical

      • Dimensions, front and depth, mm: 233 x 168 x 75
      • Net Weight, Kgs: 1.05
      • Colour (Unless Specified): White, RAL9016
      • Material: ABS Plastic with UV inhibitors
      • Mounting: Screws
      • Safety: Ceramic Block, Thermal Fuse

      ----------------------------------------------------------------------

      PWC6T/ENC

      Electrical

      • Rated power, Watts: 6
      • Tappings 100 volt line, Watts: 6/3/1.5/0.75/0.25
      • Transformer Impedance, Ohms, 100V: 1.67k/3.33k/6.66k/13.3k/40k
      • Tappings 70.7 volt line, Watts: 3/1.5/0.75/0.375/0.125
      • Driver impedance, Ohms: 8
      • Effective frequency range, Hz (BSEN60268-5): 220-18.5K
      • S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 93
      • S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 100
      • Dispersion at 1k/2k Hz, Degrees: 167/89 (H) 115/104 (V)

      Environmental

      • IP-Rating: 21
      • Max/Min Amb Temp: -10°C/+55°C
      • Relative Humidity: ≤95%

      Mechanical

      • Dimensions, front and depth, mm: 233 x 168 x 75
      • Net Weight, Kgs: 1.05
      • Colour (Unless Specified): RAL9016
      • Material: ABS Plastic with UV inhibitors
      • Mounting: Screws
      • Safety: Ceramic Block, Thermal Fuse, Capacitor






      Rated power, Watts: 6
      Tappings 100 volt line, Watts: 6/3/1.5/0.75/0.25
      Transformer Impedance, Ohms, 100V: 1.67k/3.33k/6.66k/13.3k/39.9k
      Tappings 70.7 volt line, Watts: 3/1.5/0.75/0.375/0.125
      Driver impedance, Ohms: 8
      Effective frequency range, Hz (BSEN60268-5): 220-18.5K
      S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 93
      S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 100
      Dispersion at 1k/2k Hz, Degrees: 180/110

      IP-Rating: 21
      Max/Min Amb Temp:  -25°C/+70°C
      Relative Humidity: n/a

      Dimensions, front and depth, mm: 233 x 171 x 75
      Net Weight, Kgs: 1.04
      Colour (Unless Specified): White, RAL9016
      Material: ABS Plastic with UV inhibitors
      Mounting: Screws

      Rated power, Watts: 6
      Tappings 100 volt line, Watts: 6/3/1.5/0.75/0.25
      Transformer Impedance, Ohms, 100V: 1.67k/3.33k/6.66k/13.3k/40k
      Tappings 70.7 volt line, Watts: 3/1.5/0.75/0.375/0.125
      Driver impedance, Ohms: 8
      Effective frequency range, Hz (BSEN60268-5): 220-18.5K
      S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 93
      S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 100
      Dispersion at 1k/2k Hz, Degrees: 167/89 (H) 115/104 (V)

      IP-Rating: 21
      Max/Min Amb Temp: -10°C/+55°C
      Relative Humidity:
      ≤95%

      Dimensions, front and depth, mm: 233 x 168 x 75
      Net Weight, Kgs: 1.05
      Colour (Unless Specified): White, RAL9016
      Material: ABS Plastic with UV inhibitors
      Mounting: Screws
      Safety: Ceramic Block,
      Thermal Fuse

      APPLICATIONS

      Case studies

      DOCUMENT DOWNLOADS

      Type
      Filename
      Catalogue
      Type: [PDF]
      Filename: Loudspeakers_Catalogue
      Download:
      Datasheet
      Type: [PDF]
      Filename: PWC6/T_Datasheet
      Download:
      Type: [PDF]
      Filename: PWC6T/ENC_Datasheet
      Download:
      Type: [PDF]
      Filename: PWC6T/EN_Datasheet
      Download:

      Type
      Filename
      Catalogue
      Type: [PDF]
      Filename: Catalogue_Haut-parleurs
      Download:
      Datasheet
      Type: [PDF]
      Filename: PWC6T/ENC_Fiche produit
      Download:
      Type: [PDF]
      Filename: PWC6/T_Fiche produit
      Download:
      Type: [PDF]
      Filename: PWC6T/EN_Fiche produit
      Download:

      Type
      Filename
      Catalogue
      Type: [PDF]
      Filename: Lautsprecher_katalog
      Download:
      Datasheet
      Type: [PDF]
      Filename: PWC6T/ENC_Datenblatt
      Download:
      Type: [PDF]
      Filename: PWC6T/EN_Datenblatt
      Download:
      Type: [PDF]
      Filename: PWC6/T_Datenblatt
      Download:

      Type
      Filename
      Catalogue
      Type: [PDF]
      Filename: Katalog Zvučnika
      Download:

      Compare models

      Model name
      Power Rating Watts
      Effective Frequency Range Hz
      S.P.L. @ 1 m, 1 Watt dB
      S.P.L. @ 1 m, Full Power dB
      Compliant EN 54-24
      Model name: PWC6/T
      Power Rating Watts: 6W / 100V
      Effective Frequency Range Hz: 220 - 18.500
      S.P.L. @ 1 m, 1 Watt dB: 93
      S.P.L. @ 1 m, Full Power dB: 100
      Compliant EN 54-24: -
      Model name: PWC6T/EN
      Power Rating Watts: 6W / 100V
      Effective Frequency Range Hz: 220 - 18.500
      S.P.L. @ 1 m, 1 Watt dB: 93
      S.P.L. @ 1 m, Full Power dB: 100
      Compliant EN 54-24: Yes
      Model name: PWC6T/ENC
      Power Rating Watts: 6W / 100V
      Effective Frequency Range Hz: 220 - 18.500
      S.P.L. @ 1 m, 1 Watt dB: 93
      S.P.L. @ 1 m, Full Power dB: 100
      Compliant EN 54-24: Yes
