DESCRIPTION

The wall mounted APC series is a real innovation in design and performance. These exceptional loudspeakers are both stylish and elegant. They offer a cost effective and robust alternative to the conventional wooden cabinet loudspeakers.

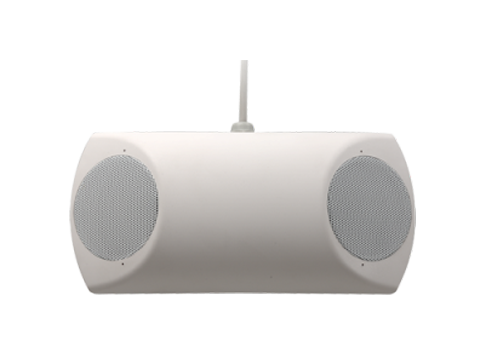

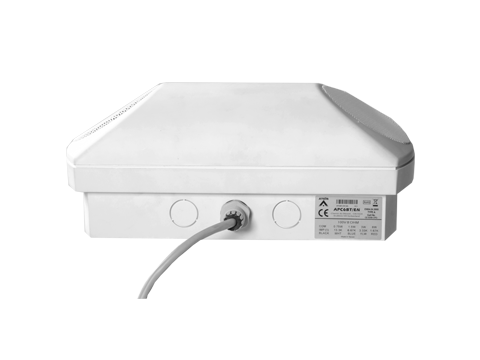

The APC6BT/EN(C) is a bi-directional wall mounted loudspeaker for indoor use. The baffle design creates a wide opening angle making this speaker very suitable for use in long corridors.

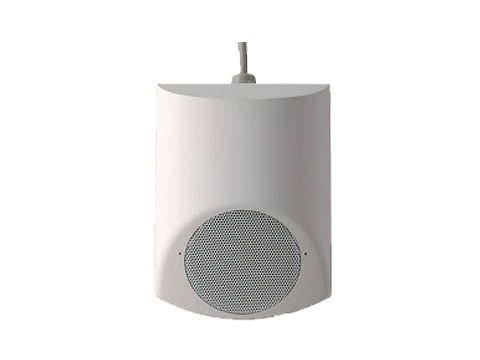

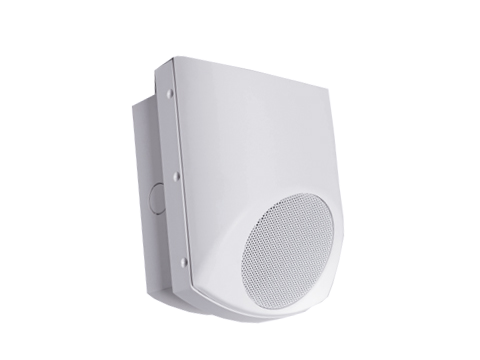

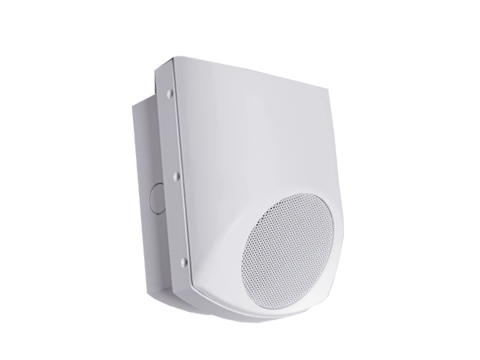

A single driver version is available for the APC4T/EN(C). This wall mounter speaker is intended for use in long corridors and shopping arcades.

Our standard finish is White, RAL9016. They are designed to make installation quick and easy, ideally suited for applications that require style as well as high performance such as shops, schools, restaurants, hotels, public houses, offices, etc.

• EN models are compliant to the EN54-24 standard for Voice Alarm systems.
• ENC models are compliant to the EN54-24 standard for Voice Alarm systems, it includes a capacitor for DC line monitoring.

FEATURES

EN54-24 Certified Models:

• APC4T/EN
• APC4T/ENC
• APC6BT/EN
• APC6BT/ENC

Certification:

• EN54-24:2008: Fire detection and fire alarm system - Certificat N° 0905-CPR-00280

SPECIFICATIONS

APC4T/EN

Electrical

• Rated power, Watts: 4
• Tappings 100 Volt line, Watts: 4/2/1/0.5
• Transformer Impedance, Ohms, 100V: 2.5k/5k/10k/20k
• Tappings 70.7 Volt line, Watts: 2/1/0.5/0.25
• Driver impedance, Ohms: 8
• Effective frequency range, Hz (BSEN60268-5): 120-18K
• S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 93
• S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 99
• Dispersion at 1k/2k Hz, Degrees: 205/162 (H) 221/199 (V)

Environmental

• IP-Rating: 44
• Max/Min Amb Temp: -25°C/+70°C
• Relative Humidity: ≤95%

Mechanical

• Dimensions, mm: 168x116x100
• Net Weight, Kg: 1.00
• Colour (Unless Specified): White, RAL9016
• Material: ULV-94v0 Plastic, UV resistant
• Mounting: 4 x screws
• Safety: Ceramic block, Thermal Fuse

---------------------------------------------------------------------------------

APC4T/ENC

Electrical

• Rated power, Watts: 4
• Tappings 100 Volt line, Watts: 4/2/1/0.5
• Transformer Impedance, Ohms, 100V: 2.5k/5k/10k/20k
• Tappings 70.7 Volt line, Watts: 2/1/0.5/0.25
• Driver impedance, Ohms: 8
• Effective frequency range, Hz (BSEN60268-5): 120-18K
• S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 93
• S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 99
• Dispersion at 1k/2k Hz, Degrees: 205/162 (H) 221/199 (V)

Environmental

• IP-Rating: 44
• Max/Min Amb Temp: -25°C/+70°C
• Relative Humidity: ≤95%

Mechanical

• Dimensions, mm: 168x116x100
• Net Weight, Kg: 1.00
• Colour (Unless Specified): White, RAL9016
• Material: ULV-94v0 Plastic, UV resistant
• Mounting: 4 x screws
• Safety: Ceramic block, Thermal Fuse, Capacitor for DC line monitoring

-------------------------------------------------------------------------------

APC6BT/EN

Electrical

• Rated power, Watts: 6
• Tappings 100 Volt line, Watts: 6/3/1.5/0.75
• Transformer Impedance, Ohms, 100V: 1.67k/3.33k/6.66k/13.3k
• Tappings 70.7 Volt line, Watts: 3/1.5/0.75/0.375
• Driver impedance, Ohms: 4
• Effective frequency range, Hz (BSEN60268-5): 110-18K
• S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 95
• S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 102
• Dispersion at 1k/2k Hz, Degrees: 260/298 (H) 287/253 (V)

Environmental

• IP-Rating: 44
• Max/Min Amb Temp: -25°C/+70°C
• Relative Humidity: ≤95%

Mechanical

• Dimensions, mm: 246x116x100
• Net Weight, Kg: 1.30
• Colour (Unless Specified): White, RAL9016
• Material: ULV-94v0 Plastic, UV resistant
• Mounting: 4 x screws
• Safety: Ceramic block, Thermal Fuse

-------------------------------------------------------------------------------

APC6BT/ENC

Electrical

• Rated power, Watts: 6
• Tappings 100 Volt line, Watts: 6/3/1.5/0.75
• Transformer Impedance, Ohms, 100V: 1.67k/3.33k/6.66k/13.3k
• Tappings 70.7 Volt line, Watts: 3/1.5/0.75/0.375
• Driver impedance, Ohms: 4
• Effective frequency range, Hz (BSEN60268-5): 110-18K
• S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 95
• S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 102
• Dispersion at 1k/2k Hz, Degrees: 260/298 (H) 287/253 (V)

Environmental

• IP-Rating: 44
• Max/Min Amb Temp: -25°C/+70°C
• Relative Humidity: ≤95%

Mechanical

• Dimensions, mm: 246x116x100
• Net Weight, Kg: 1.30
• Colour (Unless Specified): White, RAL9016
• Material: ULV-94v0 Plastic, UV resistant
• Mounting: 4 x screws
• Safety: Ceramic block, Thermal Fuse,  Capacitor for DC line monitoring

APPLICATIONS

• Schools
• Stores
• Shopping malls
• Hotels
• Train stations
• Universities
• Industrial sites
