CELL Series

DESCRIPTION

The CELL range of elegant sound projectors manufactured from epoxy coated high grade aluminium extrusion with dual cone drive units, gives both clear speech and excellent background music reproduction. Vandalism has become a factor in all of our lives with their rugged construction, these sound projectors are ideally suited for such places as shopping centres, railway stations, prisons etc.

EN models are compliant to the EN54-24 standard for Voice Alarm systems.

ENC models are compliant to the EN54-24 standard for Voice Alarm systems, it includes a capacitor for DC line monitoring.

FEATURES

Models:

CELL10/T
CELL20/T
CELL10/BDT
CELL20/BDT

EN54-24 Certified Models:

CELL10T/EN
CELL10T/ENC
CELL20T/EN
CELL20T/ENC
CELL10BT/EN
CELL10BT/ENC

Certification:

EN54-24:2008: Fire detection and fire alarm system - Certificat N° 0905-CPR-201105
EN54-24:2008: Fire detection and fire alarm system - Certificat N° 0359-CPR-00281 (CELL10BT/EN model)

SPECIFICATIONS

CELL10/T

Electrical

Rated power, Watts: 10
Tappings 100 volt line, Watts: 10/5/2.5/1.25
Transformer Impedance, Ohms, 100V: 1k/2k/4k/8k
Tappings 70.7 volt line, Watts: 5/2.5/1.25/0.625
Driver impedance, Ohms: 8
Effective Frequency Range, Hz (BSEN60268-5): 120-18k
S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 91
S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 101
Dispersion at 1k/2k Hz, Degrees: 180/120

Environmental

IP-Rating: 55
Max/Min Amb Temp: -25°C/+70°C
Relative Humidity: ≤95%

Mechanical

Dimensions, front and depth, mm: Ø140 x 191
Net Weight, Kgs: 1.90
Colour (Unless Specified): White, RAL9016
Material: Aluminium with Stainless Steel hardware
Mounting: Aluminium U-Bracket

-------------------------------------------------------------------------

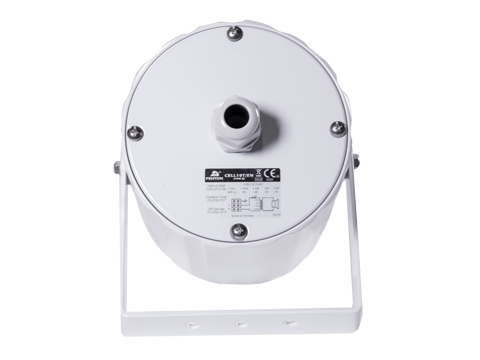

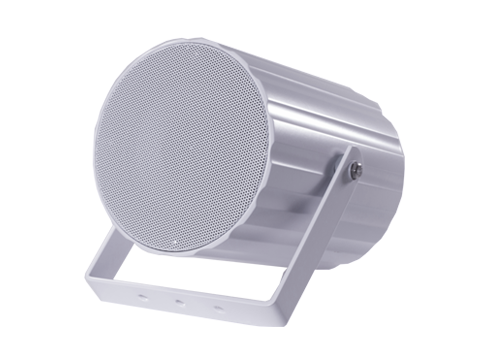

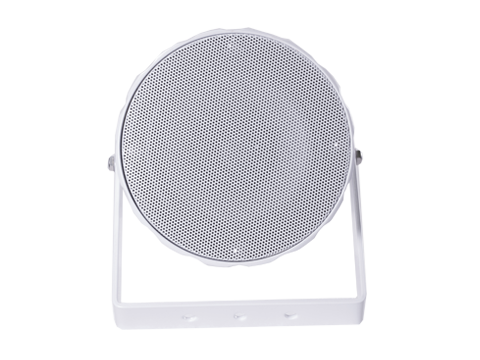

CELL10T/EN

Electrical

Rated power, Watts: 10
Tappings 100 volt line, Watts: 10/5/2.5/1.25
Transformer Impedance, Ohms, 100V: 1k/2k/4k/8k
Tappings 70.7 volt line, Watts: 5/2.5/1.25/0.625
Driver impedance, Ohms: 8
Effective Frequency Range, Hz (BSEN60268-5): 120-18k
S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 92
S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 102
Dispersion at 1k/2k Hz, Degrees: 203/116 (H) 199/116 (V)

Environmental

IP-Rating: 66
Max/Min Amb Temp: -25°C/+70°C
Relative Humidity: ≤95%

Mechanical

Dimensions, front and depth, mm: Ø140 x 191
Net Weight, Kgs: 1.90
Colour (Unless Specified): White, RAL9016
Material: Aluminium with Stainless Steel Hardware. Aluminium grill
Mounting: Aluminium U-Bracket
Security: Ceramic Block, Thermal Fuse

-------------------------------------------------------------------------

CELL10T/ENC

Electrical

Rated power, Watts: 10
Tappings 100 volt line, Watts: 10/5/2.5/1.25
Transformer Impedance, Ohms, 100V: 1k/2k/4k/8k
Tappings 70.7 volt line, Watts: 5/2.5/1.25/0.625
Driver impedance, Ohms: 8
Effective Frequency Range, Hz (BSEN60268-5): 120-18k
S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 92
S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 102
Dispersion at 1k/2k Hz, Degrees: 203/116 (H) 199/116 (V)

Environmental

IP-Rating: 66
Max/Min Amb Temp: -25°C/+70°C
Relative Humidity: ≤95%

Mechanical

Dimensions, front and depth, mm: Ø140 x 191
Net Weight, Kgs: 1.90
Colour (Unless Specified): White, RAL9016
Material: Aluminium with Stainless Steel Hardware. Aluminium grill
Mounting: Aluminium U-Bracket
Security: Ceramic Block, Thermal Fuse, Capacitor

-------------------------------------------------------------------------

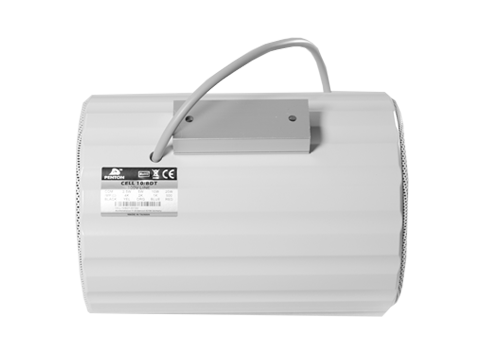

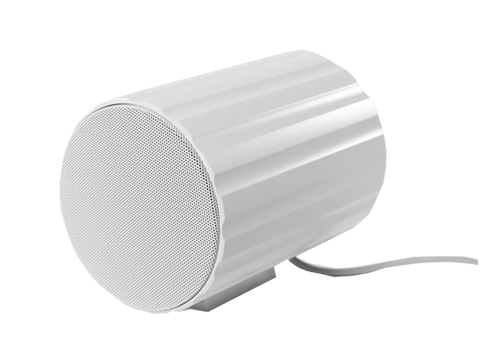

CELL10/BDT

Electrical

Rated power, Watts: 2x10
Tappings 100 volt line, Watts: 20/10/5/2.5
Transformer Impedance, Ohms, 100V: 0.5k/1k/2k/4k/8k
Tappings 70.7 volt line, Watts: 10/5/2.5/1.25
Driver impedance, Ohms: 4
Effective Frequency Range, Hz (BSEN60268-5): 120-18k
S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 88
S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 101
Dispersion at 1k/2k Hz, Degrees: 160/120 (Each direction)

Environmental

IP-Rating: 55
Max/Min Amb Temp: -25°C/+70°C
Relative Humidity: n/a

Mechanical

Dimensions, front and depth, mm: Ø140 x 196
Net Weight, Kgs: 2.30
Colour (Unless Specified): White, RAL9016
Material: Aluminium with Stainless steel hardware
Mounting: Aluminium Sliding Bracket

-------------------------------------------------------------------------

CELL10BT/EN

Electrical

Rated power, Watts: 20
Tappings 100 volt line, Watts: 20/10/5/2.5
Transformer Impedance, Ohms, 100V: 0.5k/1k/2k/4k
Tappings 70.7 volt line, Watts: 10/5/2.5/1.25
Driver impedance, Ohms: 4
Effective Frequency Range, Hz (BSEN60268-5): 120-18k
S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 88
S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 101
Dispersion at 1k/2k Hz, Degrees: 158/222 (H) 130/211 (V)

Environmental

IP-Rating: 55
Max/Min Amb Temp: -25°C/+70°C
Relative Humidity: ≤95%

Mechanical

Dimensions, front and depth, mm: 230 x 192 x 174
Net Weight, Kgs: 2.40
Colour (Unless Specified): White, RAL9016
Material: Aluminium bracket base with screw x 2
Mounting: Aluminium Sliding Bracket
Security: Ceramic Block, Thermal Fuse

-------------------------------------------------------------------------

CELL10BT/ENC

Electrical

Rated power, Watts: 20
Tappings 100 volt line, Watts: 20/10/5/2.5
Transformer Impedance, Ohms, 100V: 0.5k/1k/2k/4k
Tappings 70.7 volt line, Watts: 10/5/2.5/1.25
Driver impedance, Ohms: 4
Effective Frequency Range, Hz (BSEN60268-5): 120-18k
S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 88
S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 101
Dispersion at 1k/2k Hz, Degrees: 158/222 (H) 130/211 (V)

Environmental

IP-Rating: 55
Max/Min Amb Temp: -25°C/+70°C
Relative Humidity: ≤95%

Mechanical

Dimensions, front and depth, mm: 230 x 192 x 174
Net Weight, Kgs: 2.40
Colour (Unless Specified): White, RAL9016
Material: Aluminium bracket base with screw x 2
Mounting: Aluminium Sliding Bracket
Security: Ceramic Block, Thermal Fuse, Capacitor

-------------------------------------------------------------------------

CELL20/T

Electrical

Rated power, Watts: 20
Tappings 100 volt line, Watts: 20/10/5/2.5
Transformer Impedance, Ohms, 100V: 0.5k/1k/2k/4k
Tappings 70.7 volt line, Watts: 10/5/2.5/1.25
Driver impedance, Ohms: 8
Effective Frequency Range, Hz (BSEN60268-5): 110-16k
S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 88
S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 101
Dispersion at 1k/2k Hz, Degrees: 180/120

Environmental

IP-Rating: 55
Max/Min Amb Temp: -30°C/+80°C
Relative Humidity: ≤85%

Mechanical

Dimensions, front and depth, mm: Ø140 x 191
Net Weight, Kgs: 2.30
Colour (Unless Specified): White, RAL9016
Material: Aluminium with Stainless Steel hardware
Mounting: Aluminium U-Bracket

-------------------------------------------------------------------------

CELL20T/EN

Electrical

Rated power, Watts: 20
Tappings 100 volt line, Watts: 20/10/5/2.5
Transformer Impedance, Ohms, 100V: 0.5k/1k/2k/4k
Tappings 70.7 volt line, Watts: 10/5/2.5/1.25
Driver impedance, Ohms: 8
Effective Frequency Range, Hz (BSEN60268-5): 110-16k
S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 91
S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 104
Dispersion at 1k/2k Hz, Degrees: 208/123 (H) 210/121 (V)

Environmental

IP-Rating: 66
Max/Min Amb Temp: -25°C/+70°C
Relative Humidity: ≤95%

Mechanical

Dimensions, front and depth, mm: Ø140 x 191
Net Weight, Kgs: 2.30
Colour (Unless Specified): White, RAL9016
Material: Aluminium with Stainless Steel Hardware. Aluminium grill
Mounting: Aluminium U-Bracket
Security: Ceramic Block, Thermal Fuse

-------------------------------------------------------------------------

CELL20T/ENC

Electrical

Rated power, Watts: 20
Tappings 100 volt line, Watts: 20/10/5/2.5
Transformer Impedance, Ohms, 100V: 0.5k/1k/2k/4k
Tappings 70.7 volt line, Watts: 10/5/2.5/1.25
Driver impedance, Ohms: 8
Effective Frequency Range, Hz (BSEN60268-5): 110-16k
S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 91
S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 104
Dispersion at 1k/2k Hz, Degrees: 208/123 (H) 210/121 (V)

Environmental

IP-Rating: 66
Max/Min Amb Temp: -25°C/+70°C
Relative Humidity: ≤95%

Mechanical

Dimensions, front and depth, mm: Ø140 x 191
Net Weight, Kgs: 2.30
Colour (Unless Specified): White, RAL9016
Material: Aluminium with Stainless Steel Hardware. Aluminium grill
Mounting: Aluminium U-Bracket
Security: Ceramic Block, Thermal Fuse, Capacitor

-------------------------------------------------------------------------

CELL20/BDT

Electrical

Rated power, Watts: 2x20
Tappings 100 volt line, Watts: 40/20/10/5
Transformer Impedance, Ohms, 100V: 0.25/0.5k/1k/2k
Tappings 70.7 volt line, Watts: 20/10/5/2.5
Driver impedance, Ohms: 4
Effective Frequency Range, Hz (BSEN60268-5): 120-18k
S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 87
S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 103
Dispersion at 1k/2k Hz, Degrees: 160/120 (Each direction)

Environmental

IP-Rating: 55
Max/Min Amb Temp: -25°C/+70°C
Relative Humidity: n/a

Mechanical

Dimensions, front and depth, mm: Ø140 x 196
Net Weight, Kgs: 2.95
Colour (Unless Specified): White, RAL9016
Material: Aluminium with Stainless steel hardware
Mounting: Aluminium Sliding Bracket

APPLICATIONS
