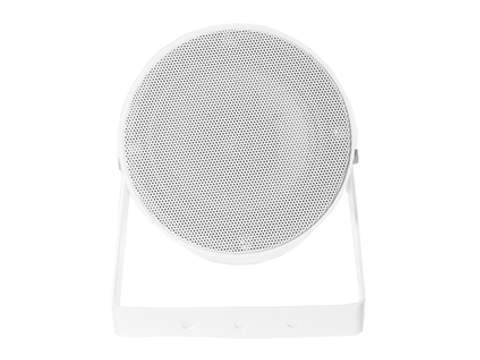

DESCRIPTION

The CAD range of weatherproof sound projectors are manufactured from an ABS moulded, Low smoke zero Halogen UL-94V0 Plastic with UV inhibitors, with dual cone drive units, giving both clear speech and excellent background music reproduction.

Their rugged construction and quick and easy installation make them ideally suited for such places as shopping centres, railway stations, parking areas etc.

• EN models are compliant to the EN54-24 standard for Voice Alarm systems.
• ENC models are compliant to the EN54-24 standard for Voice Alarm systems, it includes a capacitor for DC line monitoring.

FEATURES

Models:

• CAD10/T
• CAD20/T

EN54-24 Certified Models:

• CAD10T/EN
• CAD10T/ENC
• CAD20T/EN
• CAD20T/ENC

Certification:

• EN54-24:2008: Fire detection and fire alarm system - Certificat N° 0905-CPR-201105

SPECIFICATIONS

CAD10/T

Electrical

• Rated power, Watts: 10
• Tappings 100 volt line, Watts: 10/5/2.5/1.25
• Transformer Impedance, Ohms, 100V: 1k/2k/4k/8k
• Tappings 70.7 volt line, Watts: 5/2.5/1.25/0.375
• Driver impedance, Ohms: 8
• Effective Frequency Range, Hz (BSEN60268-5): 120-18k
• S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 90
• S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 100
• Dispersion at 1k/2k Hz, Degrees: 180/120

Environmental

• IP-Rating: 66
• Max/Min Amb Temp: -25°C/+70°C
• Relative Humidity: ≤95%

Mechanical

• Dimensions, front and depth, mm: Ø138 x 204
• Net Weight, Kgs: 1.30
• Colour (Unless Specified): White, RAL9016
• Material: ABS Plastic with UV inhibitor and Stainless steel hardware
• Mounting: Aluminium U-Bracket

-------------------------------------------------------------------------

CAD10T/EN

Electrical

• Rated power, Watts: 10
• Tappings 100 volt line, Watts: 10/5/2.5/1.25
• Transformer Impedance, Ohms, 100V: 1k/2k/4k/8k
• Tappings 70.7 volt line, Watts: 5/2.5/1.25/0.625
• Driver impedance, Ohms: 8
• Effective Frequency Range, Hz (BSEN60268-5): 110-18k
• S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 91
• S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 101
• Dispersion at 1k/2k Hz, Degrees: 206/111 (H) 219/115 (V)

Environmental

• IP-Rating: 66
• Max/Min Amb Temp:  -25°C/+70°C
• Relative Humidity: ≤95%

Mechanical

• Dimensions, front and depth, mm: Ø138 x 204
• Net Weight, Kgs: 1.30
• Colour (Unless Specified): White, RAL9016
• Material: ABS Plastic with UV inhibitor and Stainless steel hardware
• Mounting: Aluminium U-Bracket
• Safety: Ceramic Block, Thermal Fuse

----------------------------------------------------------------------

CAD10T/ENC

Electrical

• Rated power, Watts: 10
• Tappings 100 volt line, Watts: 10/5/2.5/1.25
• Transformer Impedance, Ohms, 100V: 1k/2k/4k/8k
• Tappings 70.7 volt line, Watts: 5/2.5/1.25/0.625
• Driver impedance, Ohms: 8
• Effective Frequency Range, Hz (BSEN60268-5): 110-18k
• S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 91
• S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 101
• Dispersion at 1k/2k Hz, Degrees: 206/111 (H) 219/115 (V)

Environmental

• IP-Rating: 66
• Max/Min Amb Temp: -25°C/+70°C
• Relative Humidity: ≤95%

Mechanical

• Dimensions, front and depth, mm: Ø138 x 204
• Net Weight, Kgs: 1.30
• Colour (Unless Specified): White, RAL9016
• Material: ABS Plastic with UV inhibitor and Stainless steel hardware
• Mounting: Aluminium U-Bracket
• Safety: Ceramic Block, Thermal Fuse, Capacitor for DC line monitoring

----------------------------------------------------------------------

CAD20/T

Electrical

• Rated power, Watts: 20
• Tappings 100 volt line, Watts: 20/10/5/2.5
• Transformer Impedance, Ohms, 100V: 0.500k/1k/2k/4k
• Tappings 70.7 volt line, Watts: 10/5/2.5/1.25
• Driver impedance, Ohms: 8
• Effective Frequency Range, Hz (BSEN60268-5): 110-18k
• S.P.L. @ 1m, 1 watt, dB, Test Signal Bandwidth 100 Hz-10 kHz: 91
• S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 104
• Dispersion at 1k/2k Hz, Degrees: 180/120

Environmental

• IP-Rating: 66
• Max/Min Amb Temp: -25°C/+70°C
• Relative Humidity: ≤95%

Mechanical

• Dimensions, front and depth, mm: Ø138 x 204
• Net Weight, Kgs: 1.60
• Colour (Unless Specified): White, RAL9016
• Material: ABS Plastic with UV inhibitor and Stainless steel hardware
• Mounting: Aluminium U-Bracket

-------------------------------------------------------------------------

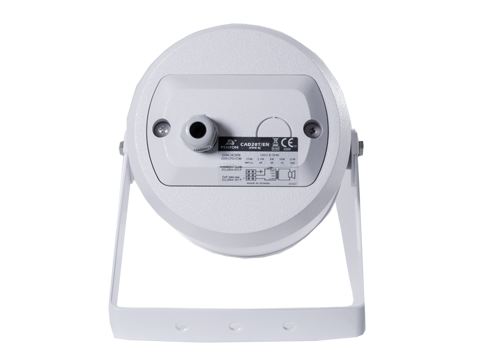

CAD20T/EN

Electrical

• Rated power, Watts: 20
• Tappings 100 volt line, Watts: 20/10/5/2.5
• Transformer Impedance, Ohms, 100V: 0.500k/1k/2k/4k
• Tappings 70.7 volt line, Watts: 10/5/2.5/1.25
• Driver impedance, Ohms: 8
• Effective Frequency Range, Hz (BSEN60268-5): 110-18k
• S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 92
• S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 105
• Dispersion at 1k/2k Hz, Degrees: 189/126 (H) 196/120 (V)

Environmental

• IP-Rating: 66
• Max/Min Amb Temp: -25°C/+70°C
• Relative Humidity: ≤95%

Mechanical

• Dimensions, front and depth, mm: Ø138 x 204
• Net Weight, Kgs: 1.60
• Colour (Unless Specified): White, RAL9016
• Material: ABS Plastic with UV inhibitor and Stainless steel hardware
• Mounting: Stainless Steel U-bracket
• Security: Ceramic Block, Thermal Fuse

-------------------------------------------------------------------------

CAD20T/ENC

Electrical

• Rated power, Watts: 20
• Tappings 100 volt line, Watts: 20/10/5/2.5
• Transformer Impedance, Ohms, 100V: 0.500k/1k/2k/4k
• Tappings 70.7 volt line, Watts: 10/5/2.5/1.25
• Driver impedance, Ohms: 8
• Effective Frequency Range, Hz (BSEN60268-5): 110-18k
• S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 92
• S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 105
• Dispersion at 1k/2k Hz, Degrees: 189/126 (H) 196/120 (V)

Environmental

• IP-Rating: 66
• Max/Min Amb Temp: -25°C/+70°C
• Relative Humidity: ≤95%

Mechanical

• Dimensions, front and depth, mm: Ø138 x 204
• Net Weight, Kgs: 1.60
• Colour (Unless Specified): White, RAL9016
• Material: ABS Plastic with UV inhibitor and Stainless steel hardware
• Mounting: Stainless Steel U-bracket
• Security: Ceramic Block, Thermal Fuse, Capacitor

APPLICATIONS

• Schools
• Stores
• Shopping malls
• Hotels
• Train stations
• Universities
• Industrial sites
