DESCRIPTION

BOUTIQUE System is a highly flexible ans self-amplified PA/VA system targeting small to large installations.

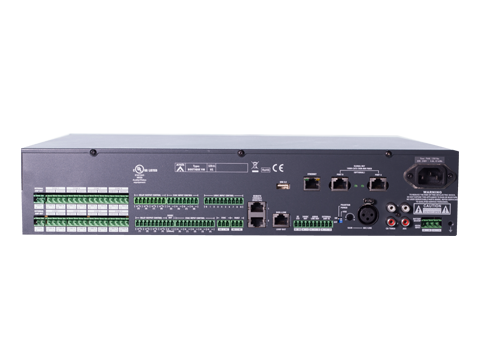

The BTQ-VM4/VM8 is a rackable compact PA/VA controller that offers 4 and 8 monitored speaker zones respectively. Each controller can cascade with up to 31 BTQ-SL8 secondary units via local digilink, and up to 64 x BTQ-VM4/BTQ-VM8/BTQ-SG8 via global-net. This will then extend as little as 4 monitor A/B speaker zones to a large networked system of up to 16,384 zones.

The BOUTIQUE controller comes fully integrated with 250 W or 500 W high efficiency Class-D amplifier built-in and is capable of handling 1000 W speaker load per zone and 2000 W max. per unit.

The BOUTIQUE System can be installed and configured with ease of operation, including easy setup and replacement from LCD front panel. Operation versatility such as volume, PEQ, audio routing, monitor and control, event and bell scheduler, paging with priority management (1 ~ 99 priority level) etc. can be configured by a dedicated web browser-based software.

Utilizing switching technology, the BOUTIQUE system is capable of discrete paging into multiple zones from a single channel amplifier. By adding a second, external amplifier to the first, it creates a background music channel and a back-up amplifier channel at the same time.

Additional features with the use of attenuators on impedance monitored speaker lines, ambient noise sensing via optional Ethernet based microphone, and a variety of local control features directly from the front panel.

Should fiber or copper not be an option, units can also be networked via IP. The VoIP interface with standard SIP protocol allows for easy integration with IP-PBX and IP phone; or for full integration with TERRACOM System for network paging, control, intercom, system monitoring, and audio streaming in intranet.

FEATURES

• Easy setup and replacement from the front panel controls
• Support up to 256 zones via digilink local network
• Support up to 16,384 zones via ATEÏS global network
• 250W or 500W high efficiency Class-D built-in
• Full DSP system with superior audio quality
• Control, management and monitoring via web browser
• Paging with priority management,event and bell scheduler
• Both background music playing and paging can be simultaneously proceeded
• IP based for music streaming and paging over LAN/WAN
• Easy integration with Terracom and IP-PBX via SIP protocol
• Internal message storage for up to 90 minutes
• USB interface for messages and music files
• 6 audio inputs (2 music inputs, mic/line, fireman mic, 2 x paging console ports)
• Internet radio receiver built-in
• Paging source can be programmed with 1~99 level priority
• Low cost switching amplifier architecture
• Extremely low power consumption during standby mode
• Enhanced loudspeaker line surveillance for A/B zone wiring
• Volume attenuators can be installed on monitored speaker lines without loop-back cable
• 2.2” LCD colour display of current status and configuration setting
• Third party control via RS232 or Ethernet

SPECIFICATIONS

Electrical

• AC power input: 100 VAC ~ 240 VAC, 50/60 Hz
• Battery power supply: 48 VDC

Audio Characteristics

• Frequency response: 20 Hz ~ 20 kHz (±1 dB) @ 0 dBu
• SNR: > 80 dB
• THD+N: < 0.02 % @ 30 dB gain, -24 dBu (1 kHz) in
• Crosstalk: > 70 dB @ 42 dB gain, 0 dBu (10 kHz) in

Wattage Capacity

• 1000 W per zone (max.) / 2000 W per unit (max.) @ 100 V line

Internal Power Amplifier

• Rated output power: 250 W / 500 W (Class-D)
• Frequency response: 50 Hz ~ 18 kHz  (±3 dB) 0 dBu
• THD+N: < 0.1 % @ 42 dB gain, 0 dBu (A kHz) in
• SNR: > 90 dB

 Mechanical

• Dimensions (W x H x D)
• BTQ-VM425/VM825: 437 x 88 x 396 mm
• BTQ-VM450/VM850: 437 x 88 x 412 mm
• Weight
• BTQ-VM425: 8.8 kg
• BTQ-VM450: 9.9 kg
• BTQ-VM825: 9.3 kg
• BTQ-VM850: 10.4 kg
• Mounting
• 19" 2U rack
• Colour: RAL7016

APPLICATIONS

• Schools
• Stores
• Shopping malls
• Hotels
• Train stations
• Universities
• Industrial sites
