DESCRIPTION

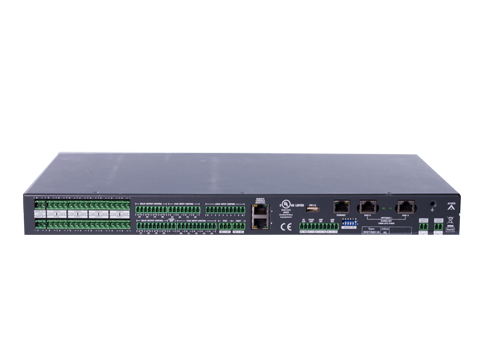

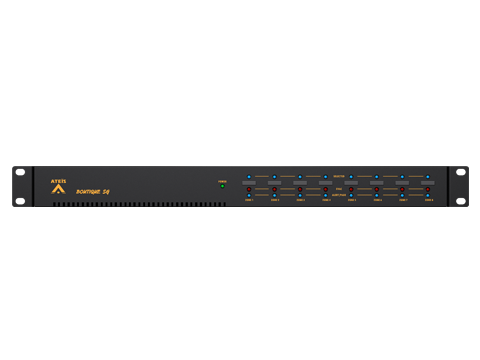

The BTQ-SL8 secondary unit is an extension unit for the BTQ-VM4/VM8 main controller. It increases the number of zones by a further 8 speaker zones. Up to 31 x BTQ-SL8 secondary local units can be added per controller via a dedicated digilink local network, providing with a maximum of 256 A/B zones and extends the number of input and output contacts available in the system at the same time.

The BTQ-SL8 is capable of handling 1000 W speaker load per zone and 2000 W max. per unit. The BTQ-SL8 contains 9 monitored EVAC inputs triggered either by dry contact or relay, 8 logic control inputs and 8 relay control outputs (configured by web browser).

In addition, the BTQ-SL8 has 1 digital paging and control console interface. In accordance with EN54-16 and UL2572, all BOUTIQUE system components and peripherals are monitored. This monitoring extends from a paging microphone capsule to the end of loudspeaker line. The speaker lines are monitored for short, open circuit and leakage. In addition, multiple volume attenuators can be installed on a monitored speaker lines. The BTQ-SL8 is also an eco-friendly product with extremely low power consumption during standby mode.

FEATURES

• Support up to 256 zones connected to 31 x SL8 via digilink local network
• Control, management and monitoring via web browser
• Both background music playing and paging can be simultaneously proceeded
• Enhanced loudspeaker line surveillance for AB-zoned installation
• Extremely low power consumption during standby mode (3.5W)
• Volume attenuators can be installed on monitored speaker lines without loopback cable
• Third party control via RS232 or Ethernet

SPECIFICATIONS

Electrical

• DC power input: 21 - 29 VDC
• Power consumption
  • Full power: 13.5 W
  • Standby mode: 3.5 W

Audio Characteristics

• A/D-D/A bit resolution: 24 bit
• Sampling rate: 48k Hz
• Frequency response: 20 Hz ~ 20k Hz (±1 dB) @ 0 dBu
• THD+N: < 0.01 % @ 0 dB gain, 4 dBu (1k Hz) in
• EIN: < -80 dBu @ 0 dB gain
• SNR: > 80 dB
• Maximum output level: 17 dBu
• Crosstalk: > 93 dB @ 0 dB gain, 0 dBu (10k Hz) in
• Output impedance: 30 ohm

Wattage Capacity

• 1000W per zone (max.)/2000W per unit (max.)

Mechanical

• Dimensions (W x H x D): 437 x 44 x 260 mm
• Weight: 2.6 kg (5.7 lbs)
• Mounting: 19" 1U rack
• Colour: RAL7016

APPLICATIONS

• Schools
• Stores
• Shopping malls
• Hotels
• Train stations
• Universities
• Industrial sites
