DESCRIPTION

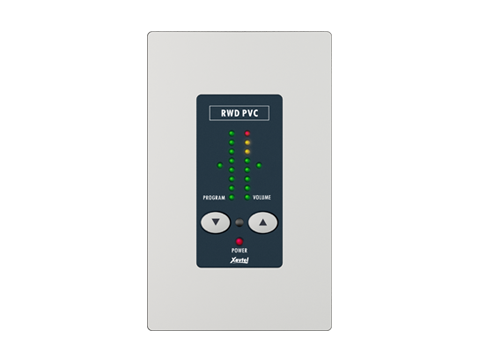

The RWD-PVC is a wall mount remote which provides source selection and volume/parameter control from up to eight audio sources. The RWD-PVC is consisted of eight LEDs for channel selection indicators, eight LEDs for volume selection, one LED for power on/off on the front panel, together with two up/down function buttons for channel selection.

The RWD-PVC can be easily pre-programmed via software and provides audio selection and level control remotely. The RWD-PVC is connected and powered via STP CAT5/CAT6 up to 820ft/250M through OCTO-Link.

The RWD series also comes with a IR receiver built-in for user to control the unit without standing in front of the machines. All of these devices may integrates into our life and create a truly smart homes/offices. The RWD-PVC fits in both standard US and EU type of wall boxes for in-wall or surface mount applications.

FEATURES

• Wall-mount remote for volume control and source selector
• Up to eight audio sources can be programmed into RWD-PVC by Xavtel Designer software
• Eight status LEDs for volume control and eight status LEDs for source selector
• Connect up to 2 RWD-PVC per OCTO Jr
• Connect up to 32 RWD-PVC per UAP G3
• CAT5/CAT6 connection with RJ45 connector
• Ideal for office distributed sound systems with music/message source selection

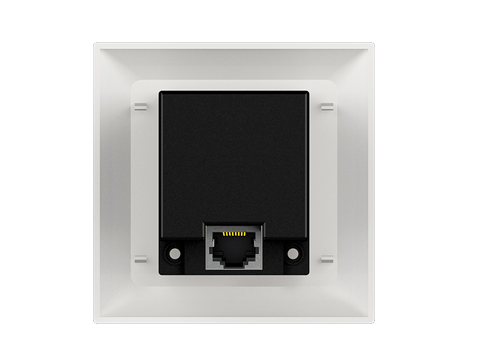

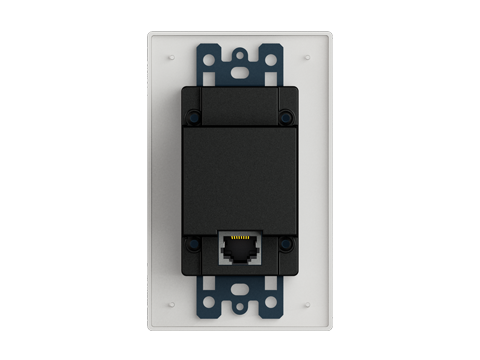

• Available in US type or EU type

SPECIFICATIONS

Electrical

•  Power consumption: 2.7 Watts (24 VDC, 1.5 A)
•  OCTO-Link port: 24 VDC @ 0.2 A maximum

Connection

•  CAT5/6 cable up to 820ft (250m)
•  Connect up to 2 RWD-PVC per OCTO Jr

Dimension & Weight

•  Dimensions (WxHxD): 84 x 84 x 45 mm
•  Weight: 0.2 Kg

APPLICATIONS

• Schools
• Stores
• Shopping malls
• Hotels
• Train stations
• Universities
• Industrial sites
