DESCRIPTION

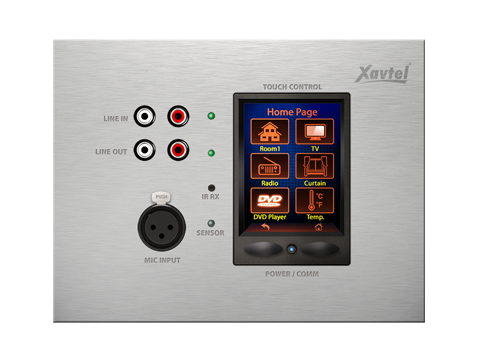

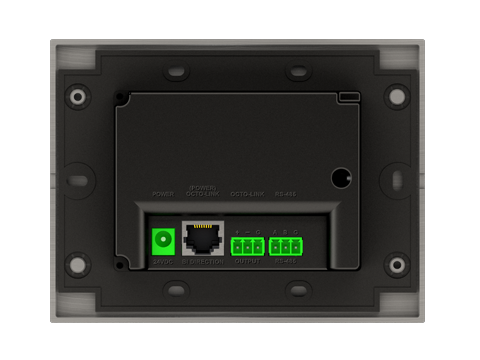

The RWD-AIO is a wall-mount remote controller which comes with a 2.2" TFT touch screen, a RCA stereo input/output connector and a XLR connector for mic input on the front panel. The RWD-AIO is connected and powered via STP CAT5/6 cable with up to 820ft/250m through OCTO-Link.

The RWD-AIO is designed as easy to use remote controller, the touch panel allows for various function controls such as logic control, volume control, message play, dynamic GUI status display, custom image button, logo, background etc., and this can be easily programmed by software.

The 4 CH OCTO-Link card on OCTO Jr (E-slot only) allows the RWD remote devices to be connected for the benefits with different kinds of applications. One RWD-AIO can also be connected to OL-AMP (Low-Z digital amplifier) at the end of the bus via OCTO-Link. In addition, the RWD-AIO also comes with a IR receiver built-in for user to control the unit without standing in front of the machines. All of these devices can be integrated into our life and create a truly smart homes/offices.

FEATURES

• Various selectable controls and adjustment via touch screen panel
• Dynamic control function for logic, volume, message play, status display
• Connect up to 2 RWD-AIO per OCTO Jr
• Conect up to 32 RWD-AIO per UAP G3
• 1 x RCA line input, 1 x RCA line output and 1 mic input on the front panel
• CAT5/CAT6 connection with RJ45 connector
• Control functions can be programmed by software
• RS485 for 3rd party control

SPECIFICATIONS

Electrical

• Power consumption: 4.11 Watts (24 VDC, 1.5 A)
• Phantom power: +24 VDC (max. 15 mA)
• OCTO-Link port: 24 VDC @ 0.2 A maximum

Audio Characteristics

• Frequency response: 0±1dBu (20 ~ 20k Hz @ 0 dBu)
• THD+N: <0.015 % (@1k Hz, 20k Hz BW @ 12 dBu gain, -6 dBu In)
• A/D-D/A converts: 24Bit
• Sample rate: 48 kHz
• EIN (XLR): -120 dBu (20 ~ 20 kHz @ 42 dBu gain, 150 ohm)
• EIN (RCA): -80 dBu (20 ~ 20 kHz @ 0 dBu gain, 150 ohm)
• Dynamic range: >98 dBu (20 Hz ~ 20k Hz, 24 dBu gain, a weighted)
• Crosstalk: <-70 dBu @ 0 dBu gain, 0 dBu In (channel to channel @ 10k Hz)

Mechanical

• Dimensions (WxHxD): 140 x 106 x 40 mm
• Weight: 0.4 kg

APPLICATIONS

• Schools
• Stores
• Shopping malls
• Hotels
• Train stations
• Universities
• Industrial sites
