DESCRIPTION

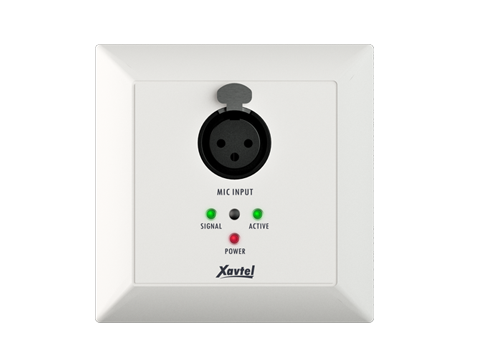

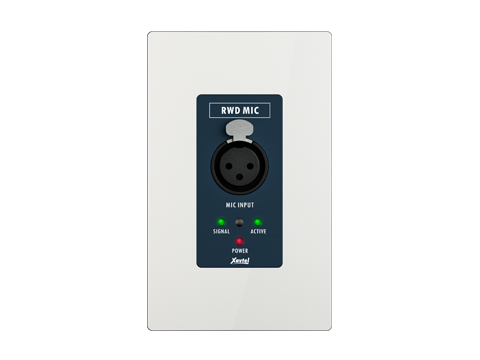

The RWD-MIC is a microphone input remote which comes with a balanced 3-pin standard XLR connector for microphone, plus 3 status LEDs (power on/off, signal, active). The RWD-MIC is connected and powered via STP CAT5/6 up to 820ft/250M through OCTO-Link.

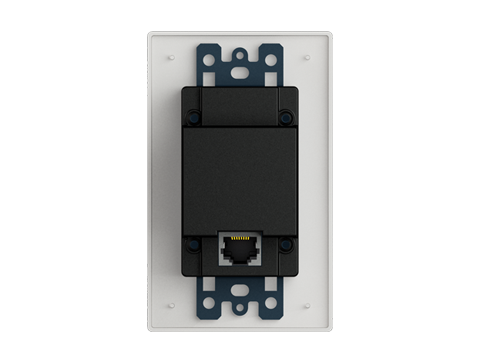

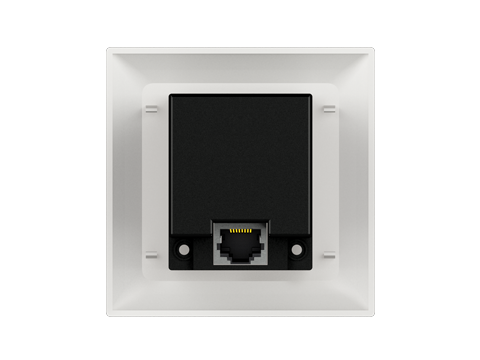

The RWD series also comes with a IR receiver built-in for user to control the unit without standing in front of the machines. All of these devices can be integrated into our life and create a truly smart homes/offices. The RWD-MIC fits in both standard US and EU type of wall boxes for in-wall or surface mount applications.

FEATURES

• Wall-mount microphone input
• Balanced microphone with 3-pin XLR connector (incl. 24 V phantom power)
• Connect up to 2 RWD-MIC per OCTO Jr
• Connect up to 32 RWD-MIC per UAP G3
• CAT5/CAT6 connection with RJ45 connector
• Available in US type or EU type
• Program by software

SPECIFICATIONS

Electrical

•  Power consumption: 1.3 Watts (24 VDC, 1.5 A)
•  Phantom power: +24 VDC (max. 15 mA)
•  OCTO-Link port: 24 VDC @ 0.2 A maximum

 Audio characteristics

•  Frequency response: 20 ~ 20k Hz (±1 dB)
•  THD+N: <0.015 % (@1k Hz, 20k Hz BW @ 12 dBu gain, -6 dBu In)
•  A/D-D/A converts: 24 Bit
•  Sample rate: 48k Hz
•  EIN (XLR): -120 dBu (20~20k Hz @ 42 dBu gain, 150 ohm)
•  Dynamic range: >98 dBu (20 Hz ~ 20k Hz, 24 dBu gain, a weighted)
•  Crosstalk: <-70 dBu @ 0 dBu gain, 0 dBu In (channel to channel @ 10k Hz)

Connection

• CAT5/6 cable up to 820ft (250m)
• Connect up to 2 RWD-MIC per OCTO Jr
• Connect up to 32 RWD-MIC per UAP G3

Mechanical

•  Dimensions (WxHxD): 84 x 84 x 45 mm
•  Weight: 0.2 Kg

APPLICATIONS

• Schools
• Stores
• Shopping malls
• Hotels
• Train stations
• Universities
• Industrial sites
