DESCRIPTION

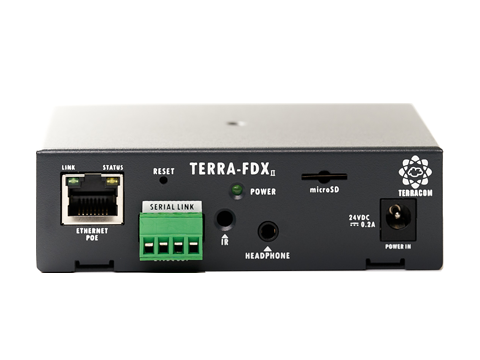

TERRA-FDX comes with 2 balanced mic/line inputs and 2 balanced line outputs, offering full duplex communication. A USB flash interface is provided for playback and backup of pre-recorded playlists and announcements. 3 control inputs can work with RAC 5/8 source selector and volume controller and event triggering such as call/hang up, music play/stop, 3rd party command, etc. The 2 relay contact outputs can be programmed to control an external device.

TERRA-FDX is an ideal IP solution for any applications that require a simple device to paging, full duplex intercom and play streaming audio over IP network. It is SIP compliant making it compatible with IP intercom and phones systems such as AVAYA, CISCO & 3COM.

Volume and channel selection can be controller using the flush-mount RAC 5/8 remote controller. TERRA-FDX is easily configured via we interface providing full control over features such as priority and event management, scheduler and output levels.

FEATURES

Models:

• TERRA-FDX: Full Duplex IP Terminal (mic/line x 2, stereo line-OUT x 1 or mono x 2, input contact x 3, relay output contact x 2, USB 2.0 x 1, RS232 x 1)
• TERRA-FDX4: Full Duplex IP Terminal (mic/line x 2, stereo line-OUT x 1 or mono x 2, input contact x 3, relay output contact x 2, USB 2.0 x 1, RS485 x 1)

SPECIFICATIONS

• 2 Mic/line balanced inputs
• 2 independent balanced outputs (1 stereo or 2 mono)
• Audio inputs/ outputs: maximum level + 5 dB, bandwidth 20 Hz ~ 20 kHz
• Single CAT5/CAT6 cable connectivity for audio, control
• PoE or 24 VDC power supply (if PoE is not available)
• Support G.711, G.722, G.726, G.727, G.729, MP3 audio codec and AAC+ decoder
• Full Duplex with Acoustic Echo Cancellation
• Web browser interface for device management and monitor
• SNMP (Simple Network Management Protocol) for device management on IP Networks
• Message storage for playback and recording
• Built-in event scheduler
• USB 2.0 interface for music, message storage and recording
• Power & Status LED indicators
• 3 contact inputs and 2 contact outputs
• RS232 or RS485 for 3rd party control
• Power consumption: 2.66 W
• Weight: 0.43 Kg
• Dimensions (DxHxW): 104 x 32 x 109 mm

APPLICATIONS

• Schools
• Stores
• Shopping malls
• Hotels
• Train stations
• Universities
• Industrial sites
