DESCRIPTION

The JD20 is a stylish Music Cabinet Loudspeaker which benefit from a 2-way enclosure, a custom loaded midrange/Bass and a polypropylene coned drive unit.

It has been paired with a high performance neodymium tweeter to accurately reproduce the high frequencies. Both drive units are matched with a passive crossover to ensure a smooth performance over the operating bandwidth.

Designed for use in shops, clubs, themed environments, wine bars etc., this speaker provides a high quality performance from a compact and attractive enclosure.

FEATURES

Models:

• JD20/TB
• JD20/TW

SPECIFICATIONS

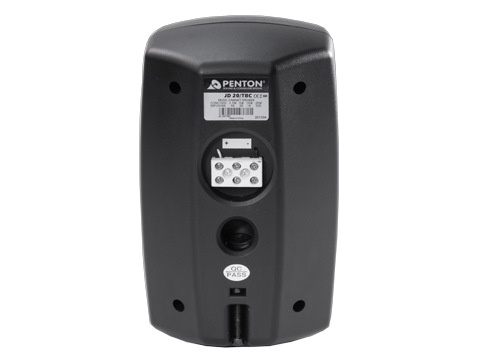

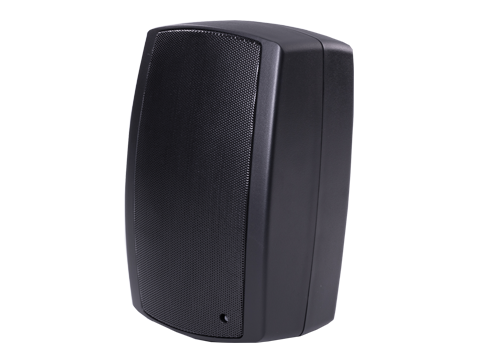

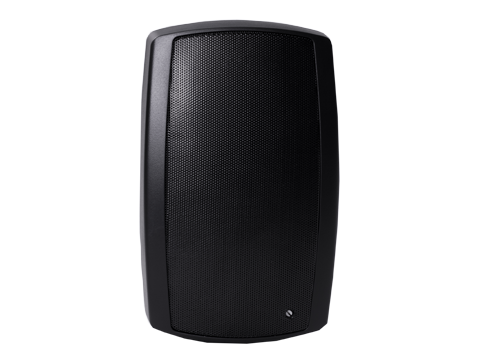

JD20/TB

Electrical

• Rated power, Watts: 20
• Tappings 100 volt line, Watts: 20/10/5/2.5
• Transformer Impedance, Ohms, 100V: 0.5k/1k/2k/4k
• Tappings 70.7 volt line, Watts: 3/1.5/0.75/0.375
• Driver impedance, Ohms: 16
• Effective frequency range, Hz (BSEN60268-5): 63-20K
• S.P.L. @ 1 m, 1 watt, dB, Test Signal Bandwidth 100 Hz-10 kHz: 84
• S.P.L. @ Full power Octave Bandwidth, dB: 97
• Dispersion at 1k/2k Hz, Degrees: 180/100

Environmental

• IP-Rating: n/a
• Max/Min Amb Temp: -10°C/+55°C
• Relative Humidity: ≤75%

Mechanical

• Dimensions, mm: 145 x 229 x 150
• Net Weight, Kgs: 1.90
• Colour (Unless Specified): Black
• Material: ABS plastic housig
• Mounting: Die-cast Aluminium Swivel Bracket

--------------------------------------------------------------------------------

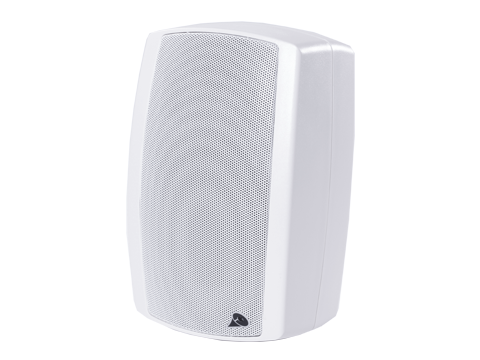

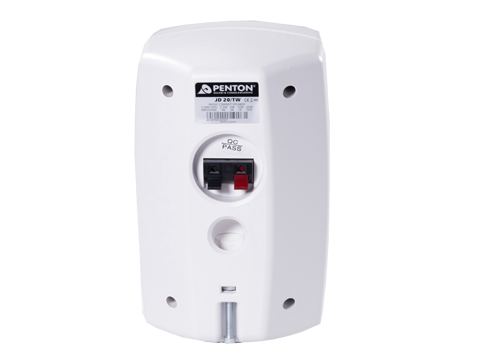

JD20/TW

Electrical

• Rated power, Watts: 20
• Tappings 100 volt line, Watts: 20/10/5/2.5
• Transformer Impedance, Ohms, 100V: 0.5k/1k/2k/4k
• Tappings 70.7 volt line, Watts: 3/1.5/0.75/0.375
• Driver impedance, Ohms: 16
• Effective frequency range, Hz (BSEN60268-5): 63-20K
• S.P.L. @ 1 m, 1 watt, dB, Test Signal Bandwidth 100 Hz-10 kHz: 84
• S.P.L. @ Full power Octave Bandwidth, dB: 97
• Dispersion at 1k/2k Hz, Degrees: 180/100

Environmental

• IP-Rating: n/a
• Max/Min Amb Temp: -10°C/+55°C
• Relative Humidity: ≤75%

Mechanical

• Dimensions, mm: 145 x 229 x 150
• Net Weight, Kgs: 1.90
• Colour (Unless Specified): White
• Material: ABS plastic housig
• Mounting: Die-cast Aluminium Swivel Bracket

APPLICATIONS

• Schools
• Stores
• Shopping malls
• Hotels
• Train stations
• Universities
• Industrial sites
