DESCRIPTION

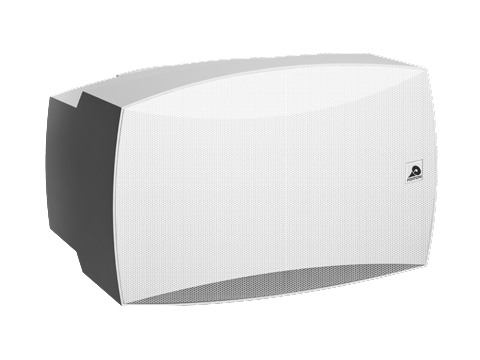

The FORMAT series, FORMAT 20 and FORMAT 40 are professional loudspeakers offering excellent quality audio form commercial applications. The coaxial cabinet loudspeaker can reproduce bright, silk-like, high frequencies with an extended Q bass sound.

The FORMAT are available in low impedance or 70 V/100 V line systems or IP versions. The IP version of the FORMAT features an IP amplifier module with 20 W/40 W output, a high sensitivity microphone for SIP intercom applications. The IP amplifier module can be powered from a PoE/PoE+ network switch or an external AC/DC power adaptor. The module features abundant audio DSP functions to further enhance the sound in the specific environment and functions over SIP and OnVIF for easy integration with Video CCTV system platforms.

The high sensitivity microphone with the RAPIDO AEC algorithm and Active Noise Reduction (ANR) enables hands-free long-distance intercom over IP. The optional RAC 5/8 controller lets users select various audio sources from the network and adjust speaker volume using the 3 control inputs.

With excellent audio quality, voice clarity, and quick and easy installation, FORMAT combines the functions of background music, intercom and message broadcasting in one speaker. It is suitable for applications including shops, schools, restaurants, hotels, public houses and offices.

FEATURES

• 100 V line transformer integrated for PA/VA sound system or low impedance in 8 ohms

For IP version:

• 20 W x 2 or 40 W high efficiency Class-D audio amplifier built-in IP DSP amplifier module
• Optional high sensitivity microphone and input model for hand-free duplex intercom
• Audio DSP includes AEC, ANR and AGC for intercom application, also PEQ Hi/Low pass filters, compressor/limiter
• Supports audio codecs G.711 ulaw, G.711 alaw, G.722, PCM16K, G.726-32, G.727-32, G.729, MP3
• Internal memory (200M) plus micro SD card of up to 512 GB available for message or music files storage
• Digital encryption with AES 128/256 and TLS digitally encrypted over IP network
• 3 control inputs is designed for volume control and audio CCTV VMS platform
• 3rd party control
• Supports SIP client for IP-PBX, Onvif for video CCTC VMS platform and 3rd party control over IP network
• Cost effective of easy installation with one CAT5/6 net cable
• Convenient management, configure, control, BGM/Paging streaming and status monitoring via standard IP network
• Supports PoE/PoE+ power or powered from an optional external AC/DC with 24 ~ 27 VDC power adaptor

SPECIFICATIONS

APPLICATIONS

• Schools
• Stores
• Shopping malls
• Hotels
• Train stations
• Universities
• Industrial sites
