DESCRIPTION

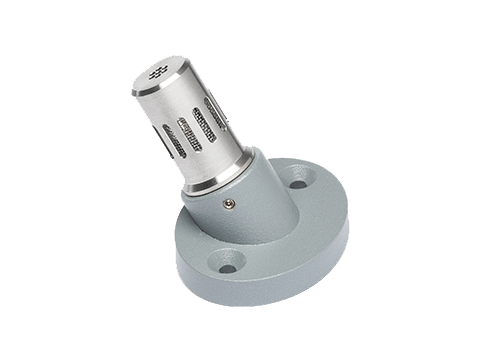

MC is a Universal Client Microphone with vandal-proof design. This client microphone fits into our MAGELLAN Counter Intercom Systems. MC is made of steel and stainless steel. Its capsule has been especially designed for intercom use.

MC can be connected to the MGL-DESK Compact Agent Desktop Console thanks to the connection cable delivered with MGL-DESK. It can be fixed to any type of support using two screws and placed against the glass or on a shelf via its support.

FEATURES

• Vandal-proof design
• Unidirectional microphone capsule
• Steel composition, stainless steel microphone head

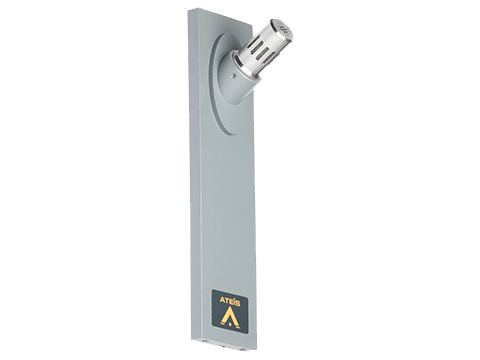

• Surface mounting against the glass or on a base (supplied with the microphone)

SPECIFICATIONS

• Unidirectional electret microphone

• Sensitivity: 14 mV / Pa (-37 dB ±3 r2f 0 dB = 1 V/Pa)
• Impedance: 1.8 kΩ ±30 % @ 1 kHz
• IP rating: IP23
• Dimensions (W x H): 45 x 180 mm
• Weight: 0.7 kg
• Material: Steel bracket – Micro head in stainless steel
• Mounting: screws (included)

APPLICATIONS

• Schools
• Stores
• Shopping malls
• Hotels
• Train stations
• Universities
• Industrial sites
