MAGELLAN DESK

DESCRIPTION

MAGELLAN DESK is a compact agent desktop for digital counter intercom that allows communication between an agent and a customer separated by a glass.

MAGELLAN DESK is Full Duplex and equipped with advanced features for optimal communication for all types of ticketing and counters. Noise reduction and echo cancellation allow for efficient installation of the intercom system, removing unwanted echo effects and thus providing excellent audio quality. The parametric equalization filter allows to correct the signal according to the environment. Additionally, the headset connectivity allows for convenient and hands-free use. This intercom is the ideal tool for efficient and professional communication at counters.

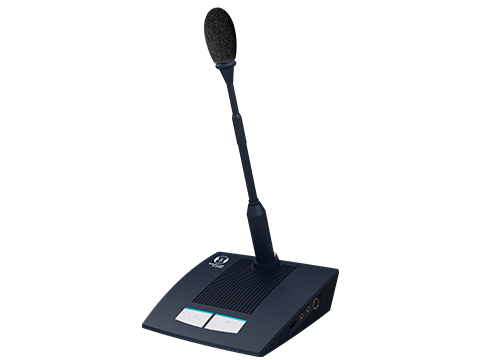

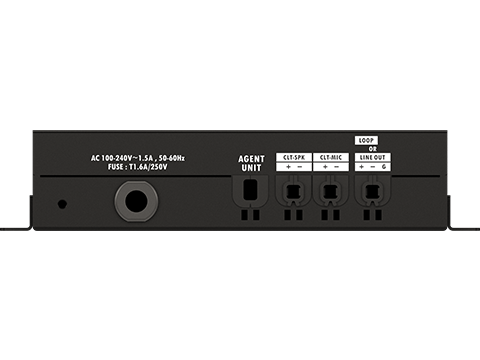

MAGELLAN DESK is made up of one compact agent desktop microphone and one connection box for the client microphone, loudspeaker and for the magnetic hearing loop.

Two options are available:

Magnetic hearing loop kit to ensure accessibility for hearing impaired persons
Flexible 40 cm microphone (standard length is 26 cm)

FEATURES

Noise reduction
Automatic Gain Control (AGC)
Echo cancellation (AEC)
High/low filter and parametric equalizer (PEQ)
Jack connectors for microphone, headphone and headset
Agent volume control by knob
+6 dB key for over amplification of audio levels
Automatic wake-up with voice detection
Easily configured and monitored via web browser

SPECIFICATIONS

AC power supply
- Connection box: 100 ~ 240 VAC, 2 A, 50 ~ 60 Hz
Power consumption
- Full power: 36 W - 230 V / 0.2 A (standby mode 6 W)
Agent loudspeaker
- Power/max level: 6 W @ 4 Ω (THD < 1%)
Client loudspeaker
- Power/max level: 10 W @ 4 Ω (THD < 1%)
Magnetic hearing loop output or 0 dB output
3 jacks (3.5 mm)
- Headphone (TRS)
  - Maximum output level: 2.5 dBu
  - Output impedance: 25 Ω
  - Delivering power: 150 mW
- Microphone (TRS)
  - Electret
  - Dynamic range: > 94 dB (40 Hz ~18 kHz @ 0 dB)
  - Input gain: 6 dB
  - Input impedance: 3 kΩ
- Headphone and microphone (TRRS)
Cables provided:
- Microphone: 2 m
- Loudspeaker: 2 m
- Box-desktop connection: 1.6 m
Mechnical
- Dimensions (WxHxD):152x50x155 mm
- Weight: 0.8 kg
- Colour: PANTONE 7546C
Environmental
- Operating temperature: -5 °C ~ +40 °C (+23 °F ~ +104 °F)
- Storage temperature: -40 °C ~ +70 °C (-40 °F ~ +158 °F)
- Relative humidity: 20% to 95%
- Air pressure: 600 to 1100 hPa

AC power supplyConnection box: 100 ~ 240 VAC, 2 A, 50 ~ 60 Hz

Connection box: 100 ~ 240 VAC, 2 A, 50 ~ 60 Hz

Power consumptionFull power: 36 W - 230 V / 0.2 A (standby mode 6 W)

Full power: 36 W - 230 V / 0.2 A (standby mode 6 W)

Agent loudspeakerPower/max level: 6 W @ 4 Ω (THD < 1%)

Power/max level: 6 W @ 4 Ω (THD < 1%)

Client loudspeakerPower/max level: 10 W @ 4 Ω (THD < 1%)

Power/max level: 10 W @ 4 Ω (THD < 1%)

Magnetic hearing loop output or 0 dB output

3 jacks (3.5 mm)Headphone (TRS)Maximum output level: 2.5 dBuOutput impedance: 25 ΩDelivering power: 150 mWMicrophone (TRS)ElectretDynamic range: > 94 dB (40 Hz ~18 kHz @ 0 dB)Input gain: 6 dBInput impedance: 3 kΩHeadphone and microphone (TRRS)

Headphone (TRS)Maximum output level: 2.5 dBuOutput impedance: 25 ΩDelivering power: 150 mW

Maximum output level: 2.5 dBu

Output impedance: 25 Ω

Delivering power: 150 mW

Microphone (TRS)ElectretDynamic range: > 94 dB (40 Hz ~18 kHz @ 0 dB)Input gain: 6 dBInput impedance: 3 kΩ

Electret

Dynamic range: > 94 dB (40 Hz ~18 kHz @ 0 dB)

Input gain: 6 dB

Input impedance: 3 kΩ

Headphone and microphone (TRRS)

Cables provided:Microphone: 2 mLoudspeaker: 2 mBox-desktop connection: 1.6 m

Microphone: 2 m

Loudspeaker: 2 m

Box-desktop connection: 1.6 m

MechnicalDimensions (WxHxD):152x50x155 mmWeight: 0.8 kgColour: PANTONE 7546C

Dimensions (WxHxD):152x50x155 mm

Weight: 0.8 kg

Colour: PANTONE 7546C

EnvironmentalOperating temperature: -5 °C ~ +40 °C (+23 °F ~ +104 °F)Storage temperature: -40 °C ~ +70 °C (-40 °F ~ +158 °F)Relative humidity: 20% to 95%Air pressure: 600 to 1100 hPa

Operating temperature: -5 °C ~ +40 °C (+23 °F ~ +104 °F)

Storage temperature: -40 °C ~ +70 °C (-40 °F ~ +158 °F)

Relative humidity: 20% to 95%

Air pressure: 600 to 1100 hPa
