DESCRIPTION

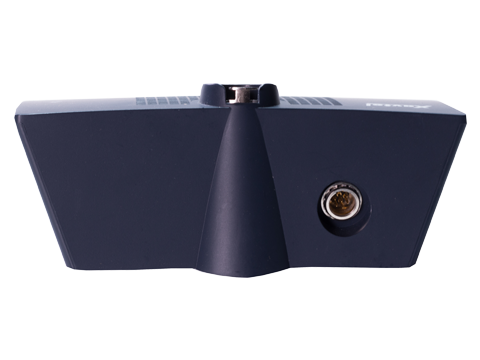

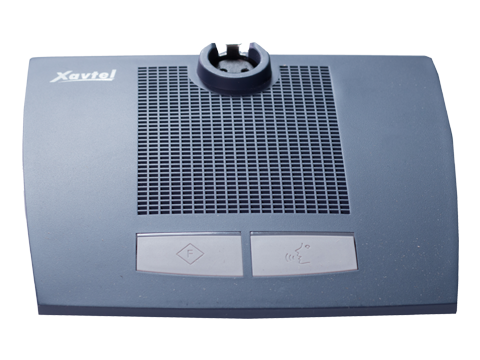

The CDM1000 is a multi-usable desktop microphone base. It comes with two buttons and status LEDs for speaking or function selection, and a XLR connection to connect to Xavtel’s gooseneck microphones, the mic is available in different length, 3rd party microphones can also be supported. The CDM1000 contains a built-in loudspeaker for smaller applications with no external amplification. The volume setting for this loudspeaker can be done with the volume pot at the right side of the unit. At the same side, there are 3 mini jack connectors, one is a microphone input, the second a line output, the third is for future use (Votepad AT).

The Senator Designer software allows the CDM1000 to be programmed and switched from the standard "Delegate mode" into an "Interpreter mode", making it as an easy and cost effective Interpreter station. In this case, either the internal loudspeaker and microphone of CDM1000 can be used for the interpreter (sitting in a different room) or the mini jack connections can be used to connect to a 3rd party headset; therefore, the interpreter can sit in the same room and listen to the floor channel while translating into another language.

FEATURES

System Features

• Up to 504 delegate units and 64 DCA660 amplifer can be connected to a single DCP1000
• Up to 32 DCP1000 can be connected via the 64 Ch. Xavnet digital audio network
• Each connected delegate unit will be processed individually and all parameters will be stored in the DCP1000
• Enhanced DSP functions such as 8 band PEQ, AGC, Feedback Suppressor, Gain sharing auto mixer and Voice Activated Gate etc.
• Optional AEC-Card (Acoustical Echo Cancellation) can be installed in the DCP1000, enabling SIP and VoIP for distance and web conferencing
• Special features like auto Mix-minus calibration, USB recording, 6Ch. simultaneous translation on board
• Interpretation integrated in same system, no optional IR system required
• Ease of use and setup with auto network deploy and special drag 'n' drop functions with the Senator Designer software

CDM1000 Features

• Desktop Delegate Unit with 3 selectable functions: delegate, chairperson or interpreter
• Built in loudspeaker with integrated AEC (Acoustical Echo Cancellation)
• Connections for headset and votepad (future option) and volume control
• XLR connector connects to any of Xavtel`s gooseneck microphones (3rd party mics will also be supported)
• The two buttons and LEDs for speaking or function selection

SPECIFICATIONS

Electrical

• Mains power : 24 VDC
• Power consumption : 3.5 Watts @ max.

Microphone Characteristics

• Type : Uni-directional condenser microphone

• Polar Pattern : Cardioid
• Frequency Response : 50~18 kHz, 0/-2 dB
• Sensitivity : -47(+-4) dBu @ 1khz (0 dBu=1 VPa)
• Impedance : > 130 Ω
• S/N Ratio : 67 dB(a)
• Maximum SPL : 128 dB
• Dynamic Range : 113 dB
• Termination : Male 3 Pin XLR
• Shaft Diameter : 6 mm
• Overall Length : 50 cm

Sampling

• Sample rate : 48KHz
• A/D-D/A converters : 24Bit

Mechanical

• Dimensions (W x D x H) : 5-1/2" x 4-3/4" x 3" (152mm x 155mm x 50mm)
• Weight : 1.76lbs (0.8kg)

APPLICATIONS

• Schools
• Stores
• Shopping malls
• Hotels
• Train stations
• Universities
• Industrial sites
