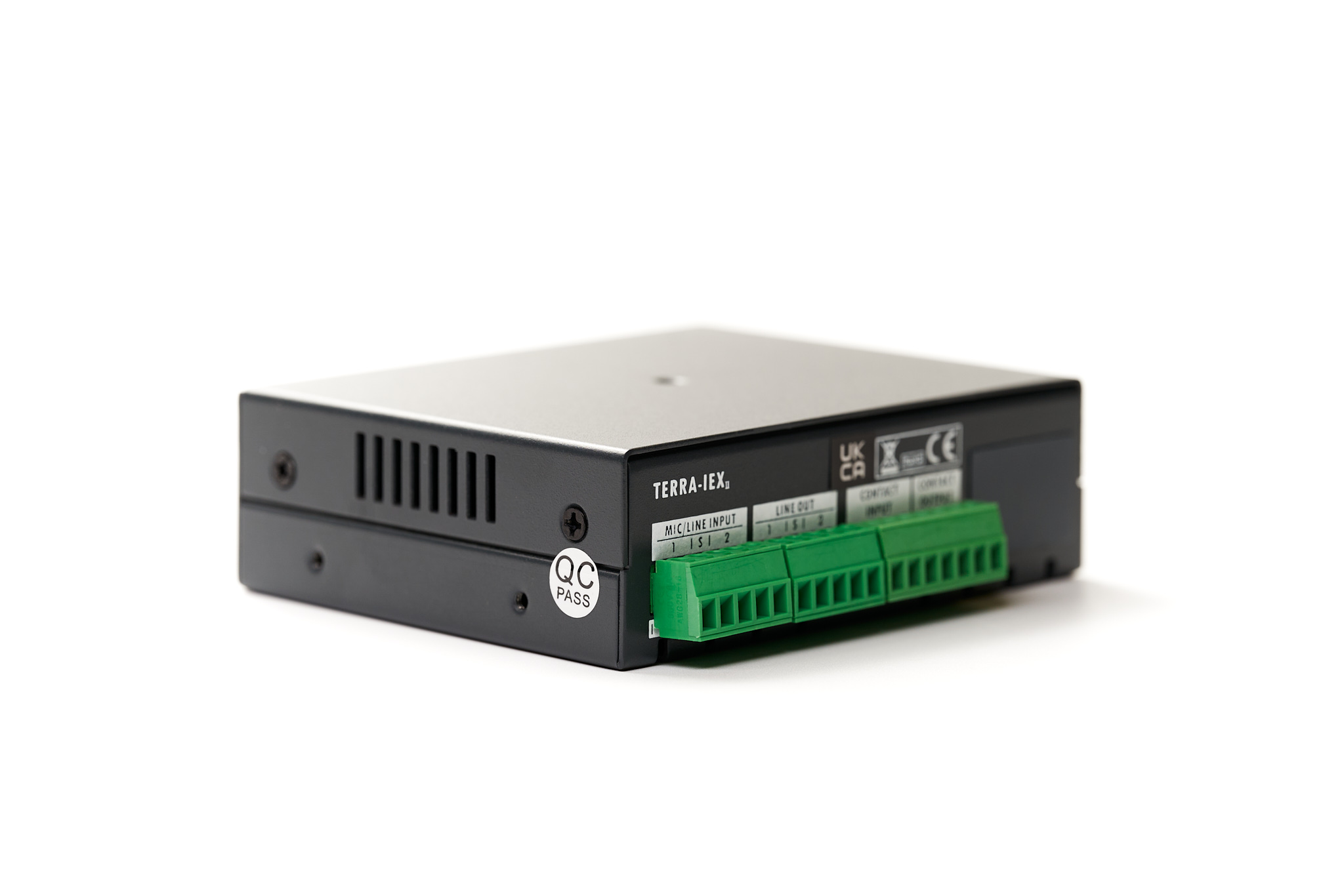

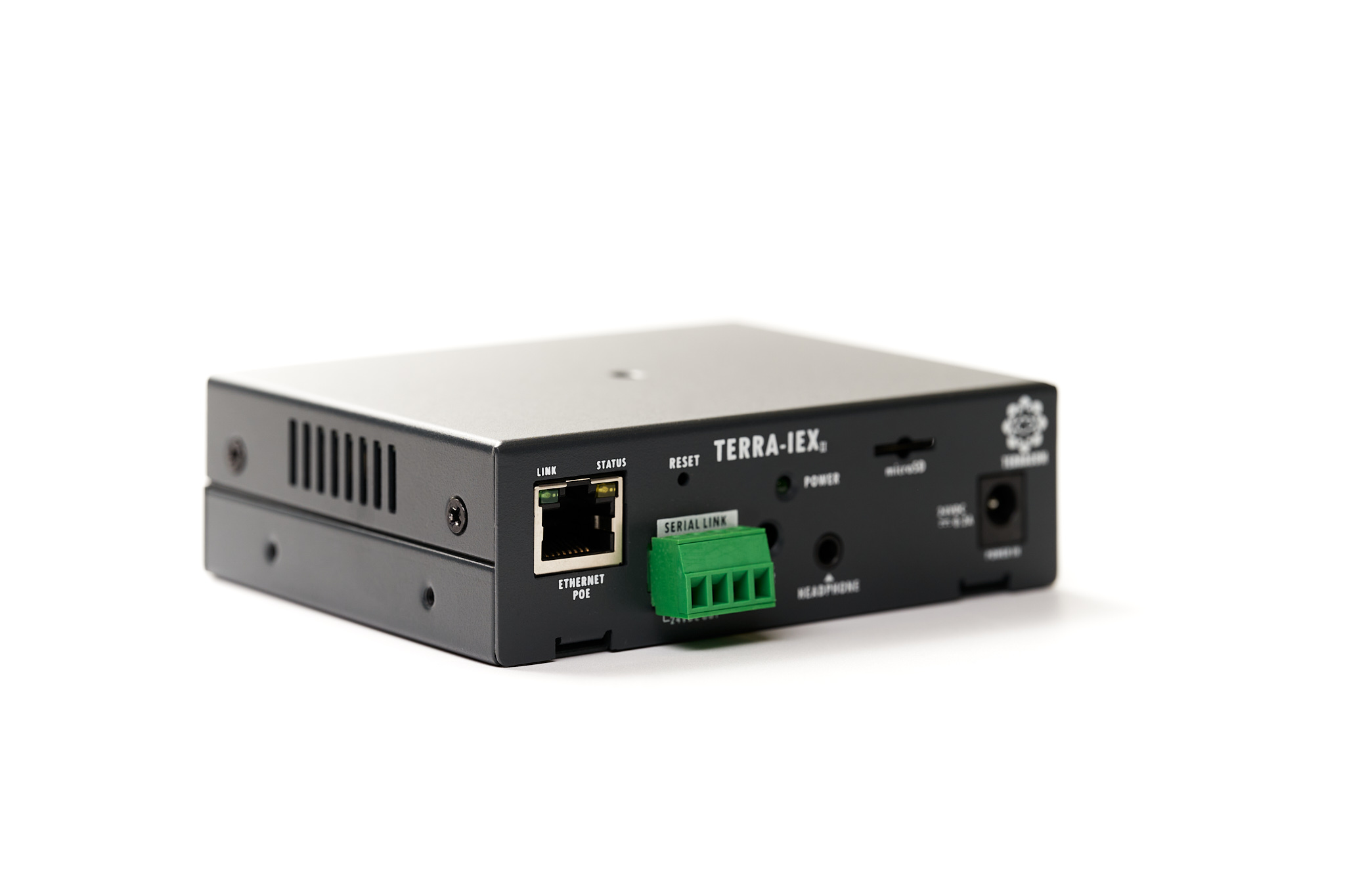

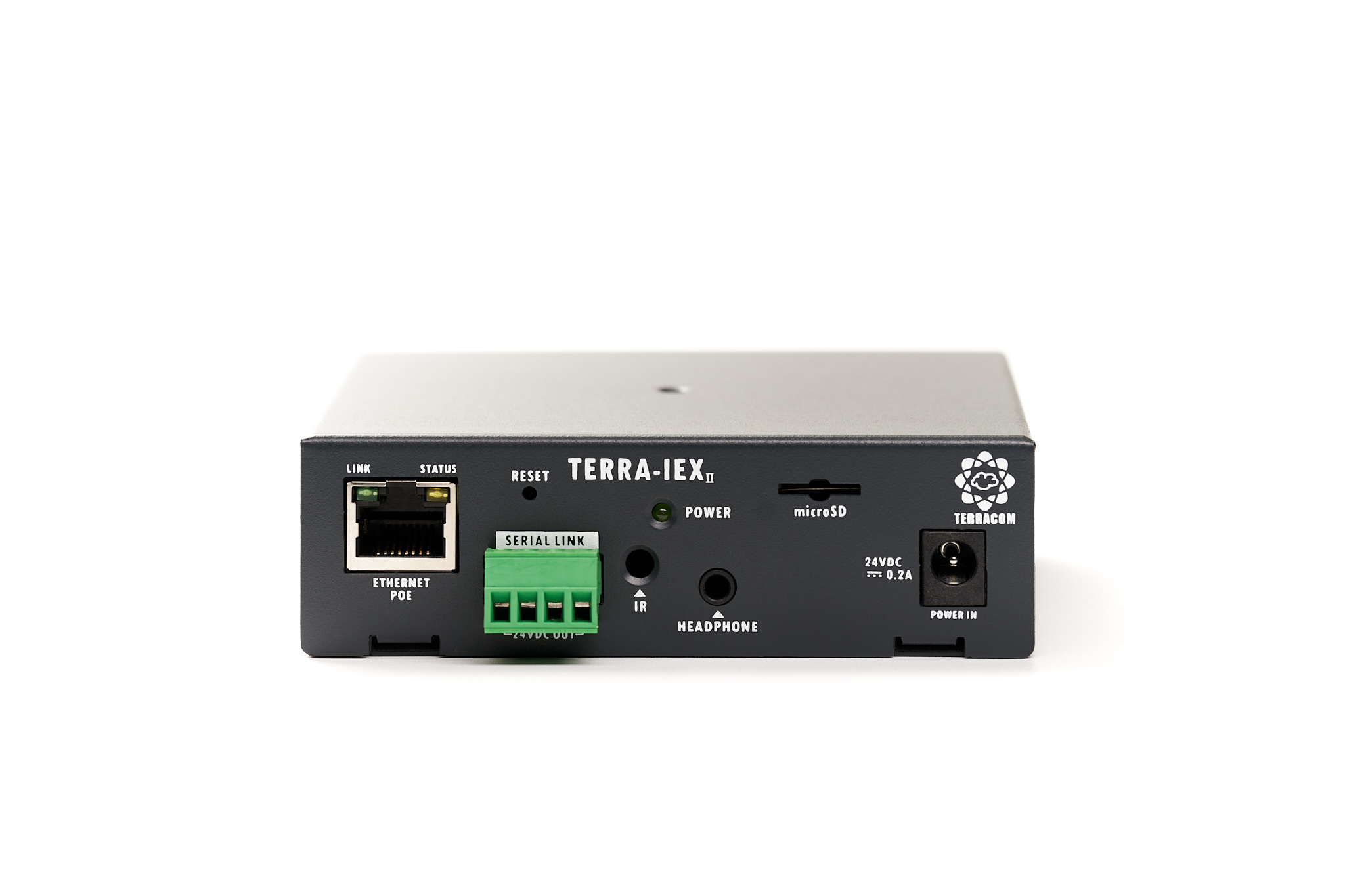

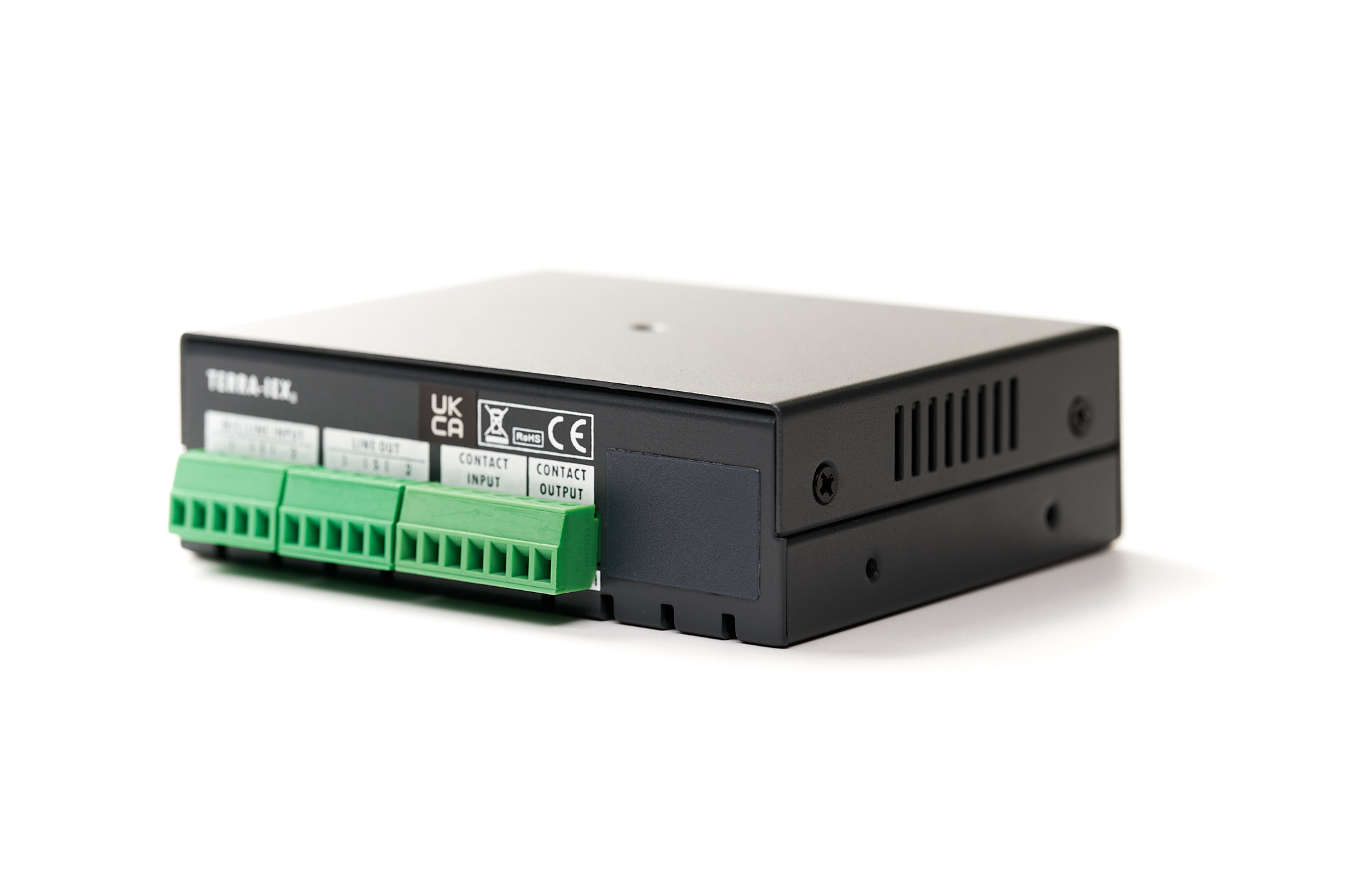

DESCRIPTION

TERRA-IEX2II is designed for simple point-to-point or point-to-multi-point audio distribution, as well as converting analog audio via an Ethernet/Internet network without the need for a computer. TERRA-lEX2II incorporates a high-quality MP3 encoder and decoder. The decoder converts MP3 audio from the network, and the encoder converts analog audio sources, such as a CD player, to the network. The internal memory of TERRA-lEX2II supports up to 200MB for music/messages/recordings storage. Audio files can be easily stored through a computer on the local network and played locally. Additionally, the micro-SD card can store all audio files.

The typical application involves integrating BGM playback and emergency calls using a single TERRA-lEX2II. Generally, the TERRA-lEX2II is utilized for decoding MP3 audio streaming from the network. A push button is connected to the control input of TERRA-lEX2II for emergency calls. Additionally, users can connect an external microphone* of their choice to the mic input. Lastly, users can program one or several target IP addresses through the TERRA-IEX2II web browser. When the push button is pressed, BGM playback automatically stops, and the emergency call is triggered to play to the pre-programmed target or to multiple targets sequentially as programmed. The call can be a live broadcast or predefined messages.

FEATURES

Models:

• TERRA-IEX2II: IP Audio Encoder/Decoder II (RS232)


SPECIFICATIONS

Electrical

• Power over Ethernet (PoE+)

• DC power input: 21 ~ 27.5 VDC
• Power consumption
  • PoE+: 25W max.
  • External power: 50W max.
  • Stand-by: 3W
• Input power option: DC power input, PoE (IEEE 802.3 af ), PoE+ (IEEE 802.3at)

Audio Characteristics (MIC INPUT)

• Phantom power: 24 VDC

• Frequency response: 20 Hz ~ 20 kHz (±1 dB) @ 0 dBu
• Input impedance (balanced): 5.5k ohm
• EIN (Equivalent Input Noise): < 85 dB @ 14 dBu
• THD+N: < 0.1 % (20 ~ 20 kHz @ 0 dBu)

Interconnection

• Female RJ45 socket, CAT5/6 cables
• Max. cable length: 100m

Supported Protocols

• SIP 2.0 (peer and proxy)

• IETF SIP (RFC3261)
• IETF IGMP version 2 (RFC2236)
• IETF RTP (RFC1889)
• Switch requirements (minimum request)
  • Transmission rate: 10/100M bps
  • Communication mode: full-duplex
  • IP protocols: IPv4, TCP/IP

Contact Output

• Default status: OPEN (N.O.)

• Maximum voltage: 30 VDC
• Maximum current: 1A

Network

• 10/100 Mbps Base TX Ethernet RJ45

• Manual or Dynamic Host Configuration Protocol (DHCP) IP address setup

Mechanical

• Dimensions (W x H x D): 105 x 32 x 83 mm

• Weight: 340g

Environmental

• Operating temperature: -5 ºC ~ +50 ºC

• Storage temperature: -40 ºC ~ +70 ºC
• Relative humidity: 20% to 95%
• Air pressure: 600 to 1100 hPa
• Heat dissipation: 10.24 BTU/hr @ 20 W x 2 CH

APPLICATIONS

• Schools
• Stores
• Shopping malls
• Hotels
• Train stations
• Universities
• Industrial sites
