DESCRIPTION

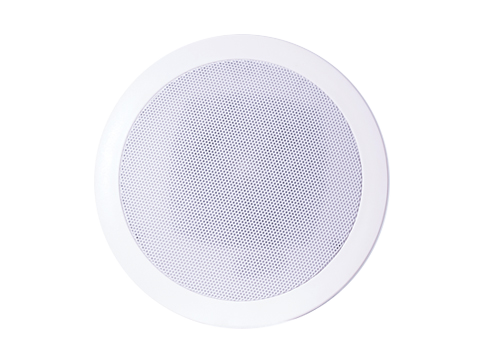

The RCS6-IP/RCS6-IPM is a 20 Watts ceiling IP loudspeaker for voice, paging, intercom, music streaming, audio routing, pre-recorded and scheduled announcement, VoIP communication or as the SIP endpoint where network-wide communication is desired and high-output loudspeakers are required to overcome high ambient noise and/or large spaces.

The RCS6-IP/RCS6-IPM incorporates 3 control inputs for level control and source selection (using the RAC 5/8 controllers), 1 contact output fro triggering events.

The RCS6-IPM also comes with a built-in microphone input, allowing hands-free intercom.

To configure, control, monitor the IP speakers in real-time, this can be easily done through your favorite web browser interface, making the management even the most complex environments simpler than ever.

FEATURES

• Configured, controlled, managed and monitored via web browser
• 3 control inputs for level control and source selection
• 1 relay contact output
• 1 microphone input (RCS6-IPM)
• Network audio codec: G.711, G.722, WAV, mp3
• Third party control with TERRACOM System
• Support VoIP call via SIP protocol

SPECIFICATIONS

RCS6-IP / RCS6-IPM

Electrical

• Rated power, Watts: 20
• Effective frequency range, Hz (BSEN60268-5): 65-18.5K
• S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 95
• S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 103
• Dispersion at 1k/2k Hz, Degrees: 180/110
• Power supply: PoE+ - 24 VDC power transformer

Environmental

• IP-Rating: 21
• Max/Min Amb Temp: -10°C/+55°C
• Relative Humidity: ≤95%

Mechanical

• Dimensions, mm: Ø239x110
• Net Weight, Kgs: 1.73
• Colour (Unless Specified): White, RAL9016
• Material: Steel
• Mounting: Torsion springs, mounting bracket
• Cut-out, mm: Ø190

APPLICATIONS

• Schools
• Stores
• Shopping malls
• Hotels
• Train stations
• Universities
• Industrial sites
