DESCRIPTION

The MCS Series is a range of two-way metal sound columns which combines elegant styling, robust design and high performance. It is characterized by a very wide frequency range, which is reflected in the high-quality reproduction of speech and music, in contrast to conventional sound columns.

The MCS columns are miniature Line Array, designed for smooth, wide dispersion without the need of a DSP controller.

Architecturally and visually pleasing, these column speakers take advantage of the principles of line array to deliver controlled vertical coverage, wide horizontal coverage and phase-accurate sound. We offer three sizes to give you the greatest choice in vertical control.

The cabinets are very solid extruded aluminium, and are designed to be weather resistant, including a weather sealed cable entry gland-nut.

The high sound pressure achieved by a special high-pressure driver's horn and the special radiation characteristics make the column ideal for a use in rooms that are difficult to be sonicated like airports, churches, factories, sports halls, conference rooms, etc. At the bottom of the housing is a variable power regulator for the individual adjustment of the required power.

• EN models are compliant to the EN54-24 standard for Voice Alarm systems.


• ENC models are compliant to the EN54-24 standard for Voice Alarm systems, it includes a capacitor for DC line monitoring.

FEATURES

EN54-24 Certified Models:

• MCS20T/EN
• MCS20T/ENC
• MCS40T/EN
• MCS40T/ENC
• MCS80T/EN
• MCS80T/ENC

Certification:

• EN54-24:2008: Fire detection and fire alarm system - Certificat N° 0905-CPR-201107

SPECIFICATIONS

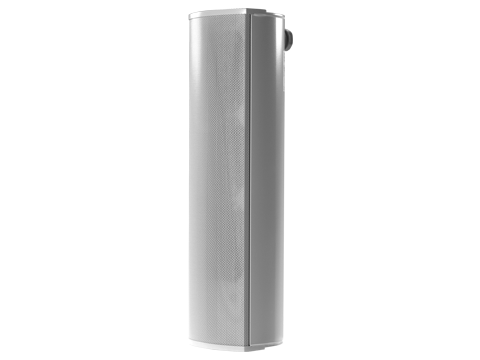

MCS20T/EN

Electrical

• Rated power, Watts: 20
• Tappings 100 volt line, Watts: 20/10/5/2.5
• Transformer Impedance, Ohms, 100V: 0.5k/1k/2k/4k
• Tappings 70.7 volt line, Watts: 10/5/2.5/1.25
• Driver impedance, Ohms: 2
• Effective Frequency Range, Hz (BSEN60268-5): 170-17k
• S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 92
• S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 105
• Dispersion at 1k/2k Hz, Degrees: 179/140 (H) 100/28 (V)

Environmental

• IP-Rating: 55
• Max/Min Amb Temp: -25°C/+70°C
• Relative Humidity: ≤95%

Mechanical

• Dimensions, front and depth, mm: 368 x 98 x 90
• Net Weight, Kgs: 2.50
• Colour (Unless Specified): White, RAL9016
• Material: Aluminium
• Mounting: Steel L bracket, optional swivel bracket
• Safety: Ceramic Block, Thermal Fuse


-------------------------------------------------------------------------

MCS20T/ENC

Electrical

• Rated power, Watts: 20
• Tappings 100 volt line, Watts: 20/10/5/2.5
• Transformer Impedance, Ohms, 100V: 0.5k/1k/2k/4k
• Tappings 70.7 volt line, Watts: 10/5/2.5/1.25
• Driver impedance, Ohms: 2
• Effective Frequency Range, Hz (BSEN60268-5): 170-17k
• S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 92
• S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 105
• Dispersion at 1k/2k Hz, Degrees: 179/140 (H) 100/28 (V)

Environmental

• IP-Rating: 55
• Max/Min Amb Temp: -25°C/+70°C
• Relative Humidity: ≤95%

Mechanical

• Dimensions, front and depth, mm: 368 x 98 x 90
• Net Weight, Kgs: 2.50
• Colour (Unless Specified): White, RAL9016
• Material: Aluminium
• Mounting: Steel L bracket, optional swivel bracket
• Safety: Ceramic Block, Thermal Fuse, Capacitor for DC line monitoring


-------------------------------------------------------------------------

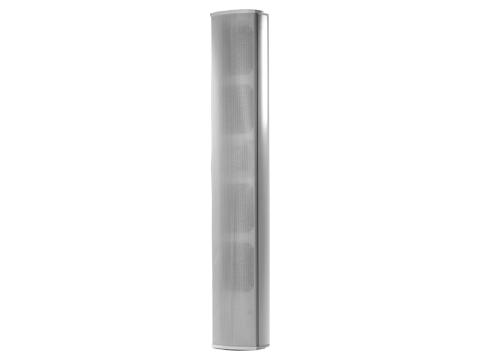

MCS40T/EN

Electrical

• Rated power, Watts: 40
• Tappings 100 volt line, Watts: 40/20/10/5
• Transformer Impedance, Ohms, 100V: 0.25k/0.5k/1k/2k
• Tappings 70.7 volt line, Watts: 20/10/5/2.5
• Driver impedance, Ohms: 8
• Effective Frequency Range, Hz (BSEN60268-5): 170-18k
• S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 94
• S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 110
• Dispersion at 1k/2k Hz, Degrees: 231/156 (H) 45/20 (V)

Environmental

• IP-Rating: 55
• Max/Min Amb Temp: -25°C/+70°C
• Relative Humidity: ≤95%

Mechanical

• Dimensions, front and depth, mm: 615 x 98 x 90
• Net Weight, Kgs: 3.80
• Colour (Unless Specified): White, RAL9016
• Material: Aluminium
• Mounting: Steel L bracket, optional swivel bracket
• Safety: Ceramic Block, Thermal Fuse


-------------------------------------------------------------------------

MCS40T/ENC

Electrical

• Rated power, Watts: 40
• Tappings 100 volt line, Watts: 40/20/10/5
• Transformer Impedance, Ohms, 100V: 0.25k/0.5k/1k/2k
• Tappings 70.7 volt line, Watts: 20/10/5/2.5
• Driver impedance, Ohms: 8
• Effective Frequency Range, Hz (BSEN60268-5): 170-18k
• S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 94
• S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 110
• Dispersion at 1k/2k Hz, Degrees: 231/156 (H) 45/20 (V)

Environmental

• IP-Rating: 55
• Max/Min Amb Temp: -25°C/+70°C
• Relative Humidity: ≤95%

Mechanical

• Dimensions, front and depth, mm: 615 x 98 x 90
• Net Weight, Kgs: 3.80
• Colour (Unless Specified): White, RAL9016
• Material: Aluminium
• Mounting: Steel L bracket, optional swivel bracket
• Safety: Ceramic Block, Thermal Fuse, Capacitor for DC line monitoring


-------------------------------------------------------------------------

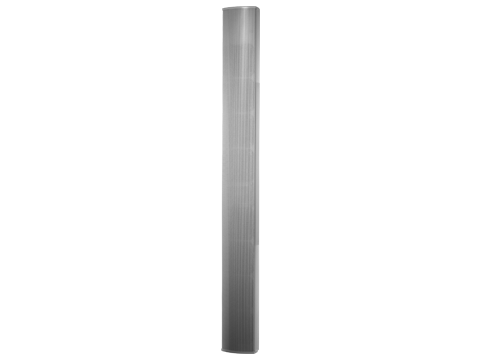

MCS80T/EN

Electrical

• Rated power, Watts: 80
• Tappings 100 volt line, Watts: 80/40/20/10
• Transformer Impedance, Ohms, 100V: 0.125k/0.25k/0.5k/1k
• Tappings 70.7 volt line, Watts: 40/20/10/5
• Driver impedance, Ohms: 4
• Effective Frequency Range, Hz (BSEN60268-5): 180-18k
• S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 98
• S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 117
• Dispersion at 1k/2k Hz, Degrees: 175/131 (H) 35/14 (V)

Environmental

• IP-Rating: 55
• Max/Min Amb Temp: -25°C/+70°C
• Relative Humidity: ≤95%

Mechanical

• Dimensions, front and depth, mm: 970 x 98 x 90
• Net Weight, Kgs: 6.00
• Colour (Unless Specified): White, RAL9016
• Material: Aluminium
• Mounting: Steel L bracket, optional swivel bracket
• Safety: Ceramic Block, Thermal Fuse

-------------------------------------------------------------------------

MCS80T/ENC

Electrical

• Rated power, Watts: 80
• Tappings 100 volt line, Watts: 80/40/20/10
• Transformer Impedance, Ohms, 100V: 0.125k/0.25k/0.5k/1k
• Tappings 70.7 volt line, Watts: 40/20/10/5
• Driver impedance, Ohms: 4
• Effective Frequency Range, Hz (BSEN60268-5): 180-18k
• S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 98
• S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 117
• Dispersion at 1k/2k Hz, Degrees: 175/131 (H) 35/14 (V)

Environmental

• IP-Rating: 55
• Max/Min Amb Temp: -25°C/+70°C
• Relative Humidity: ≤95%

Mechanical

• Dimensions, front and depth, mm: 970 x 98 x 90
• Net Weight, Kgs: 6.00
• Colour (Unless Specified): White, RAL9016
• Material: Aluminium
• Mounting: Steel L bracket, optional swivel bracket
• Safety: Ceramic Block, Thermal Fuse, Capacitor for DC line monitoring

APPLICATIONS

• Schools
• Stores
• Shopping malls
• Hotels
• Train stations
• Universities
• Industrial sites
