DESCRIPTION

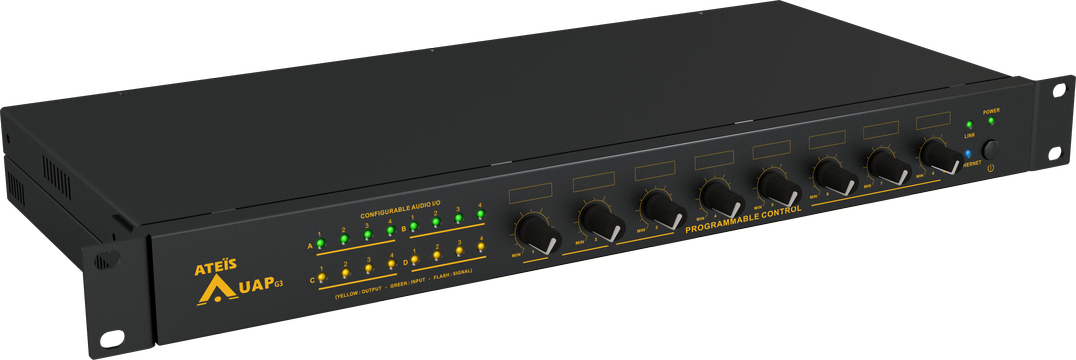

The UAP G3/UAP G3H is a cascadable DSP audio processor which comes with 4 modular card slots for fully flexible I/O confguration. The options of 4 card slots include analog audio cards, digital audio I/O cards and specialty cards such as VoIP card, AEC card, analog telephone card, OCTOLINK card and AES-EBU card. The I/O combination from 4Ix4O, 4Ix8O, 8Ix4O, 8Ix8O, 4Ix12O, 12Ix4O, 16I or 16O. Using OCTOLINK cards can up to 32Ix32O audio I/O. Up to 12 UAP G3/UAP G3H processors can be cascaded via Digi-Link bus. The UAP G3/UAP G3H can be linked via CAT5/6/7 cable with metal shielded RJ45 connector (max. length 33 ft/10m between units).

Each OCTOLINK port provides 2 audio channel inputs and 2 audio channel outputs which simultaneously transmit bidirectional data in digital format, providing an easy connection to remotes such as paging console, wall mount controller and ceiling mount microphone. The connection between the UAP G3/UAP G3H and remote device is using STP CAT5/6/7 cable with metal shielded RJ45 connector with a max. communication distance of 820 ft/250m.

As our state of the art DSP processor, the UAP G3/UAP G3H also incorporates full drag n' drop DSP component libraries such as AGC, AEC, Ducker, various kinds of Mixer, Delay, A.N.G (Auto Noise Gain), ANR (Ambient Noise Reduction), PEQ, Feedback, Hi/Lo Pass, message player, event scheduler for element adjustment, preset changes and event control, dynamic zone paging, In/Out audio streaming, VoIP/SIP for teleconferencing, level control, telephone transmit/receive, audio recorder, etc. making the entire system flexible and easy to program and integrate. The UAP G3/UAP G3H features 8 programmable knobs, each knob can be programmed in custom DSP parameter for intuitive control without PC or any other software.

With ATEÏS’s optional AEC-Card (Acoustic Echo Cancellation) using our ultra-fast patent RAPIDO™ AEC algorithm, the UAP G3/UAP G3H is capable to use VoIP and SIP functionality for distance and web-conferencing applications. The UAP G3/UAP G3H can be integrated with various remote inputs, outputs or controllers for Home & Office Automation. Logic I/O, RS485 and Ethernet is also available for 3rd party control.

FEATURES

• Up to 12 UAP G3/UAP G3H units can be cascaded via Digi-Link bus for I/O expansion

• 16 audio channels and data over Digi-Link bus
• Drag-n-drop DSP functions such as AGC, AEC, PEQ or mixers, Feedback Suppressor, etc
• Modular analog/digital audio input/output cards for up to 32I or 32O per unit
• Internal message storage up to 60 minutes in WAV format (16k, 16bits) or 240 minutes in G.722 format
• Redundant Ethernet ports with auto detection to switch to secondary network in case of primary failure or the cable is disconnected
• Include a mini-USB audio port to be connected to a computer for audio playback or distance conferencing via Skype, Zoom, WeChat or WhatsApp
• DPM-T5 supports dynamic zone paging, intercom, stack paging, message playing, message event triggering, audio routing, volume control, etc

Standard configurations with Analog Audio I/O cards:

• UAP G3/ 4/12 (MOOO): 4 In / 12 Out
• UAP G3 8/8 (MMOO): 8 In / 8 Out
• UAP G3 12/4 (MMM0): 12 In / 4 Out
• UAP G3 16in (MMMM): 16 In
• UAP G3 16out (OOOO): 16 Out

Optional Digital Audio I/O Cards & Speciality Cards:

• Stereo AES/EBU I/O Card, 4 port
• OCTOLINK Card
• 4CH Duplex VoIP Card
• Analog TEL Card with 4 Lines
• Analog TEL Card with 2 Lines and 2 Sets

SPECIFICATIONS

APPLICATIONS

• Airports
• Hospital
• Hotels
• Industrial sites
• Meeting rooms
• Restaurants
• Schools
• Sport fields
• Stores
• Train stations
• Universities
• Waiting rooms
• Warehouse
• Shopping malls
