DESCRIPTION

TERRA-EX2 Vox@ is an IP audio decoder with 2 mono balanced line outputs, making it your ideal IP solution for any application where you need a simple balanced audio output with some contact inputs and relays.

The device is directly connected to the network thanks to a standard RJ45 interface. A built-in web browser interface allows simplified control and programming of the unit .

The DSP based architecture enables management of new codecs.

SIP protocol enables compatibility with the standards of digital telephony.

Contacts inputs can be programmed as logic, selector or analog mode for actions triggering, source selection or gain adjustment. Contact inputs and relay output are fully programmable and can be managed locally or via a VNB control protocol. Headphone output reports line 1 on left channel, and line 2 on right channel.

TERRA-EX2 Vox@ is perfect for applications such as:

• Simultaneous IP audio streams decoding,
• Standalone message reader thanks to its readers, contact inputs and its embedded scheduler,
• IP gateway to RS232 for Vox@net g2 management of IDA4 and DIVA matrix.

In addition, using Vox@net g2 audio software enables TERRA-EX2 Vox@ to act as a 2 zones matrix.

FEATURES

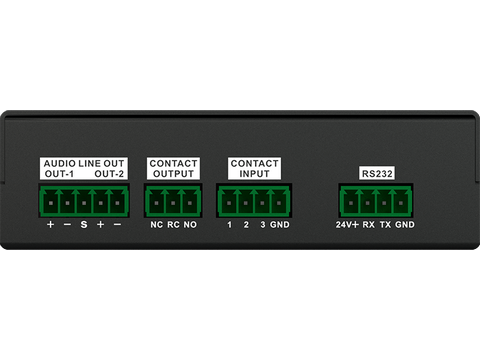

• TERRA-EX2 Vox@: 2 mono balanced line outputs + 2 IP audio decoders + 3 contact inputs + 1 relay output

SPECIFICATIONS

• 2 mono balanced line outputs
• 1 mini-jack output
• 2 IP audio decoders (Unicast, Broadcast, Multicast)
• 2 message readers
• Internal 100 MB storage for message and music playback
• SIP user agent
• VNB Framework control protocol for interaction with other devices (including HTTP)
• Automatic level control
• Event scheduler
• Vox@ range and Vox@Net compatible
• Ethernet interface RJ45 10/100 Mbit/s with PoE
• RS232 for third party control
• 3 contact inputs
• 1 relay output N.O. + N.C.
• LED: Power, Status, Ethernet Link
• IR: Option not available
• PoE or external 24 VDC power supply
• Power consumption: 2 W
• Weight: 0.43 Kg
• Dimensions (DxHxW): 104 x 32 x 109 mm

APPLICATIONS

• Schools
• Stores
• Shopping malls
• Hotels
• Train stations
• Universities
• Industrial sites
