DESCRIPTION
ATEÏS Net is a secured (monitored) audio network, developed and supplied for fast and low-latency audio and data transport over a redundant copper via STP CAT5/6 or fiber-optic network ring. ATEÏS Net has an open-architecture design providing the best solution to medium to large-scale installations, such as shopping malls, retail stores, train stations and airports.
ATEÏS Net secured audio network responds to Public Address and Voice Alarm requirements as stated in EN54-16, UL60065, ISO 7240-16 and BS 5839/8 with specific attributes for compliance in large installations.

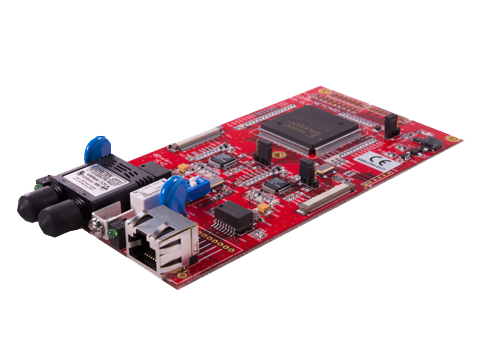

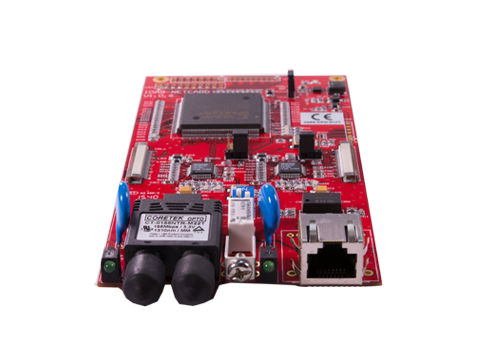

Seven models of ATEÏS Net cards are available :
- NET-C1: RJ45 (A) - RJ45 (B)
- NET-C2: Fiber Optic Multi Mode (A) - RJ45 (B)
- NET-C2S: Fiber Optic Single Mode (A) - RJ45 (B)
- NET-C3: Fiber Optic Multi Mode (A) - Fiber Optic Multi Mode (B)
- NET-C3S: Fiber Optic Single Mode (A) - Fiber Optic Single Mode (B)
- NET-C4: RJ45 (A) - Fiber Optic Multi Mode (B)
- NET-C4S: RJ45 (A) - Fiber Optic Single Mode (B)
Port A = Network IN
Port B = Network OUT
Schools
Stores
Shopping malls
Hotels
Train stations
Universities
Industrial sites
